IV - 25

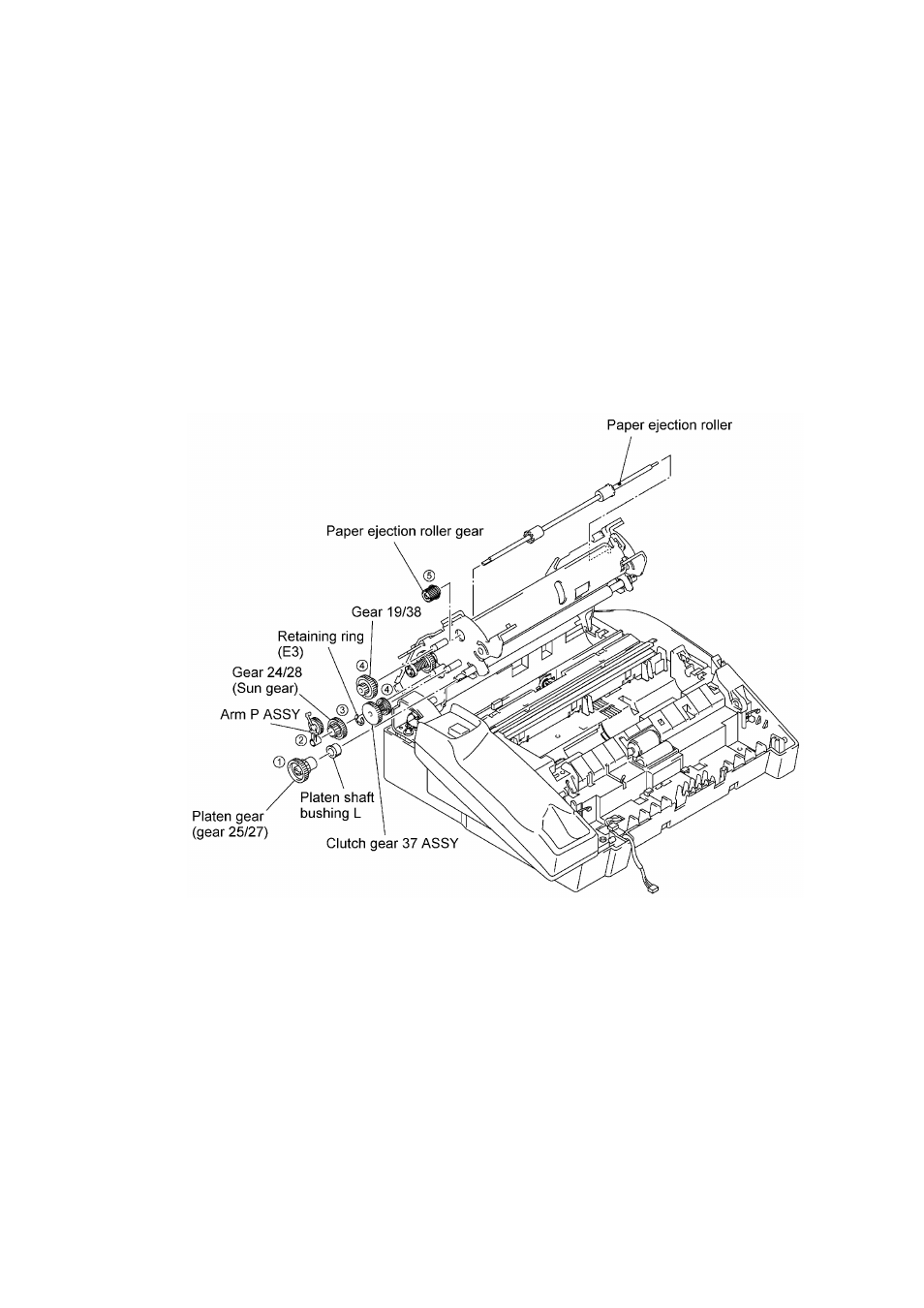

(4) At the left end of the platen frame, remove the gears in the following order:
-
Platen gear (gear 25/27) by pulling its pawl outwards. (Also remove the black platen shaft
bushing L.)
-
Arm P ASSY by pulling its pawl outwards.
-
Gear 24/28 (sun gear)
-
Clutch gear 37 ASSY by removing the retaining ring, together with gear 19/38
-
Paper ejection roller gear
NOTE: The platen shaft bushing is greased for antistatic purpose. Take care not to stain
other parts with the grease.
(5) Remove the paper ejection roller.
