Brother FAX-921 User Manual
Page 59
IV - 19

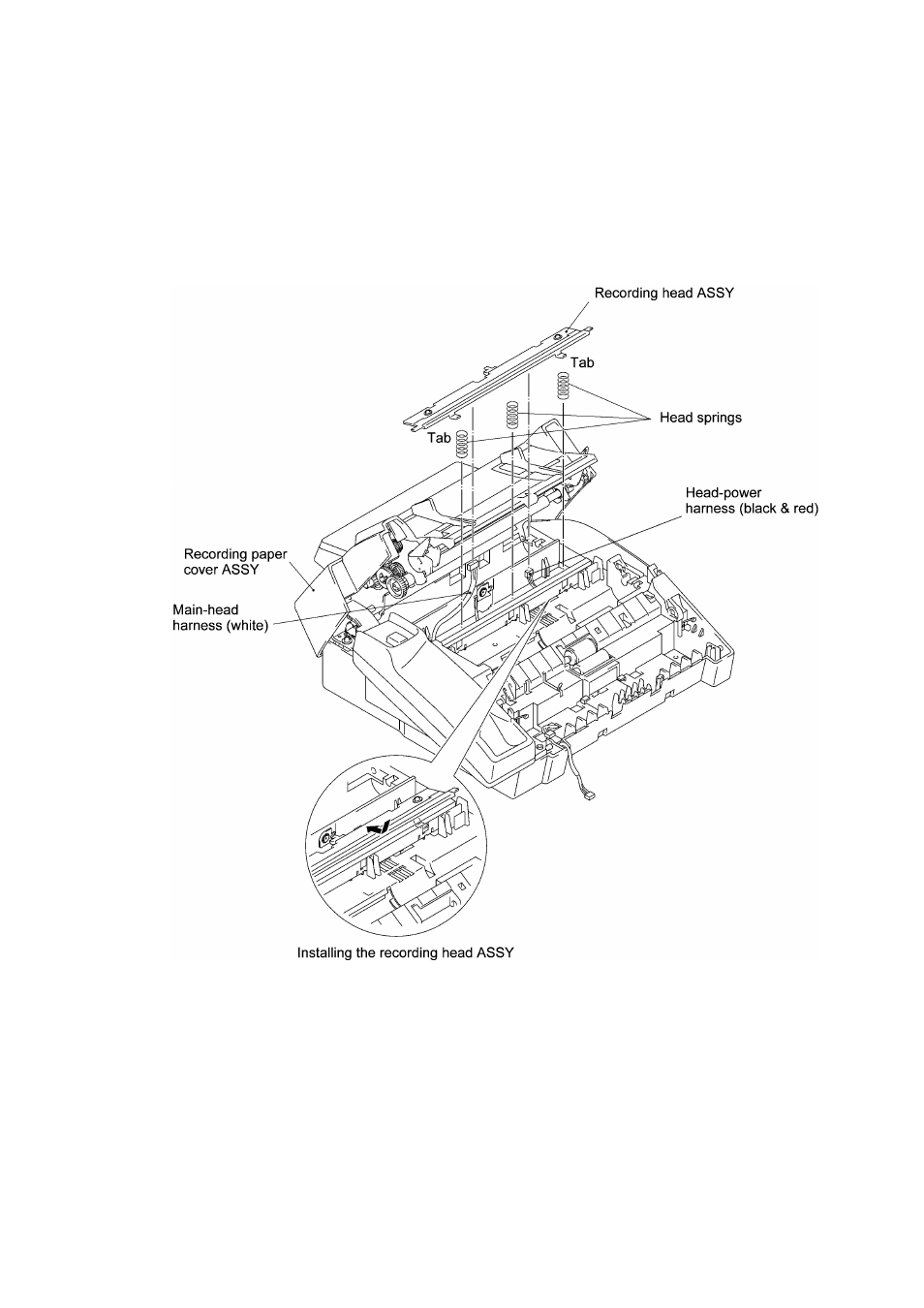

(3) Push down both ends of the recording head ASSY and move it to the rear to release the tabs
from the cutouts provided in the recorder frame.
(4) Disconnect the two harnesses (main-head harness and head-power harness) from the
recording head ASSY and then lift up the ASSY.
(5) Remove the three head springs.
