III - 19
3. CONTROL ELECTRONICS
3.1
Configuration

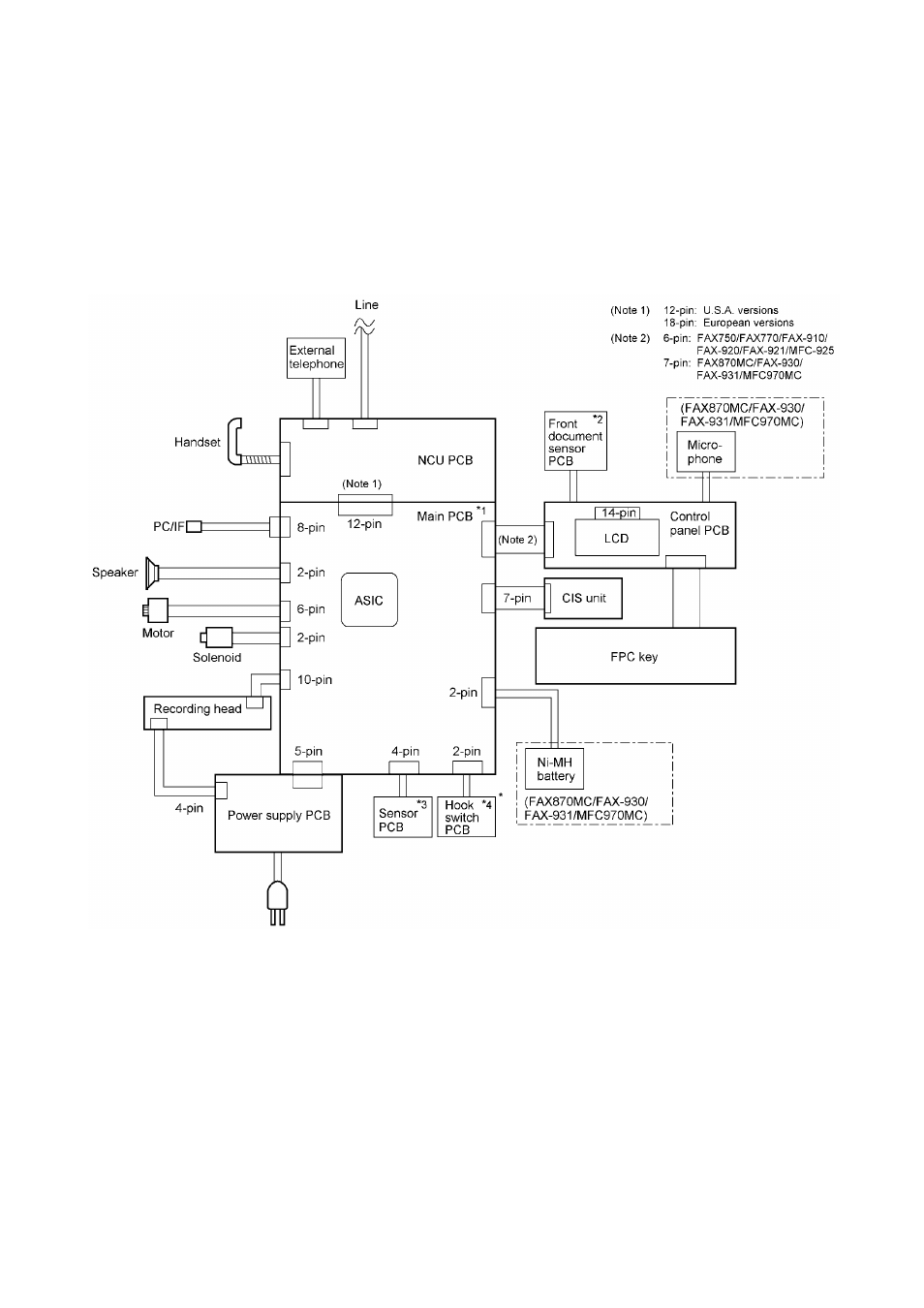

The hardware configuration of the facsimile equipment is shown below.
*1 On the main PCB are these sensors:
l
Ribbon sensor (PI1)
l
Document rear sensor (PI2)
l
Cover sensor (SW1)
*2 On the front document sensor PCB is the front document
sensor.
*3 On the sensor PCB are these sensors:
l
Paper-edge sensor (PH1)
l
Paper ejection sensor (PH2)
*4 On the hook switch PCB* is the hook switch sensor (SW1).
*
Not provided on the FAX-910.
Configuration of Facsimile Equipment
