n n Preparation

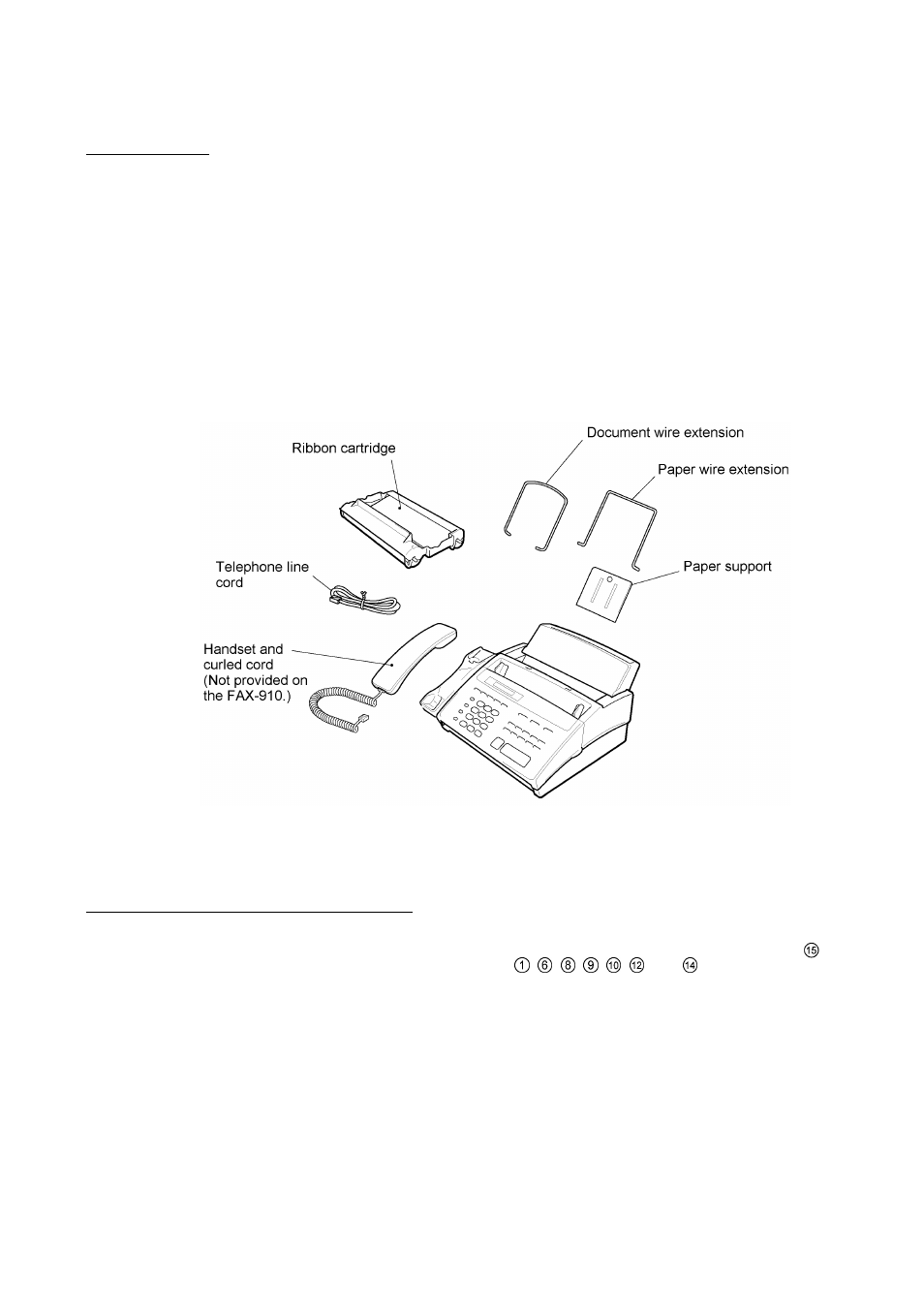

Prior to proceeding to the disassembly procedure,
(1) Unplug
- the modular jack of the telephone line,
- the modular jack of the curled cord (and remove the handset), and
- the modular jack of an external telephone set if connected. (Not shown below.)
(2) Remove
- the document wire extension,
- the paper wire extension,
- the paper support, and
- the ribbon cartridge.
n n How to Access the Object Component
• On the next page is a disassembly order flow which helps you access the object components.
To remove the separation roller, for example, first find it on the flow and learn its number (
in
this case). You need to remove parts numbered , , , , , , and so as to access the
separation roller.
• Unless otherwise specified, the disassembled parts or components should be reassembled in
the reverse order of removal.
