Names of Parts Names of Parts

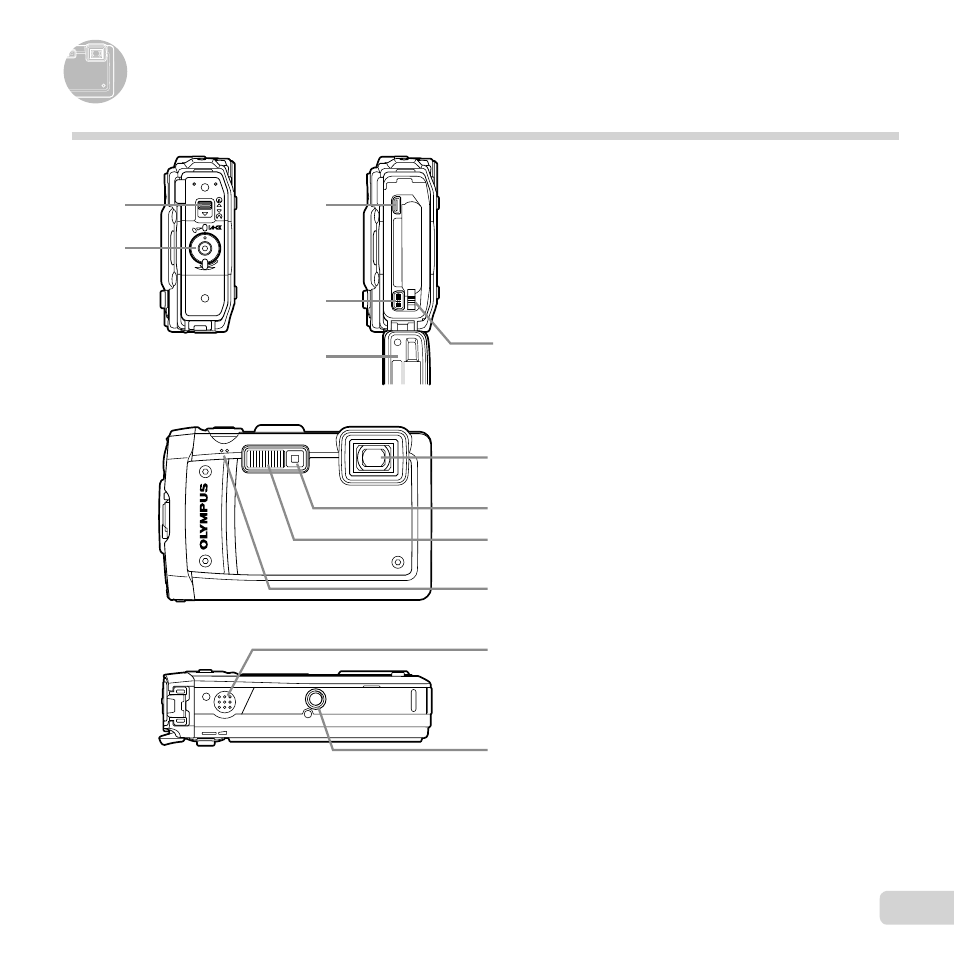

Camera unit
1
2
3
4
5
7
12
8
9
10
6
11
1 Battery/card/connector
cover lock....................p. 14
2 LOCK knob ...................p. 14
3 HDMI micro connector
....................................p. 53
4 Multi-connector
..................p. 15, 17, 53, 59
5 Battery/card/connector cover
............p. 14, 15, 17, 53, 73
6 Battery lock knob ..........p. 14
7 Lens ..............................p. 68
8 Self-timer lamp/
LED illuminator .....p. 36, 38
9 Flash .............................p. 35
10 Microphone ...................p. 46
11 Speaker
12 Tripod socket
