Page 85
74
Hot Spares
To set up one RAID Level 5 group with one Hot
Spare sled
1
Connect to Diamond Storage Array services
(refer to
on page 17) and use
the CLI or enter ATTO ExpressNAV interface
Advanced CLI Configuration page.
2
Type set QuickRAID5 1 1
3
Type SaveConfiguration Restart
The array is configured into one RAID Level 5
group with one Hot Spare sled.
To set up two RAID Level 5 groups with Hot
Spare sleds
1
Connect to Diamond Storage Array services
and use the CLI or enter ATTO ExpressNAV
interface Advanced CLI Configuration page.
2
Type set QuickRAID5 2 2
3
Type SaveConfiguration Restart
The array is configured into two RAID Level 5
groups with two Hot Spare sleds.

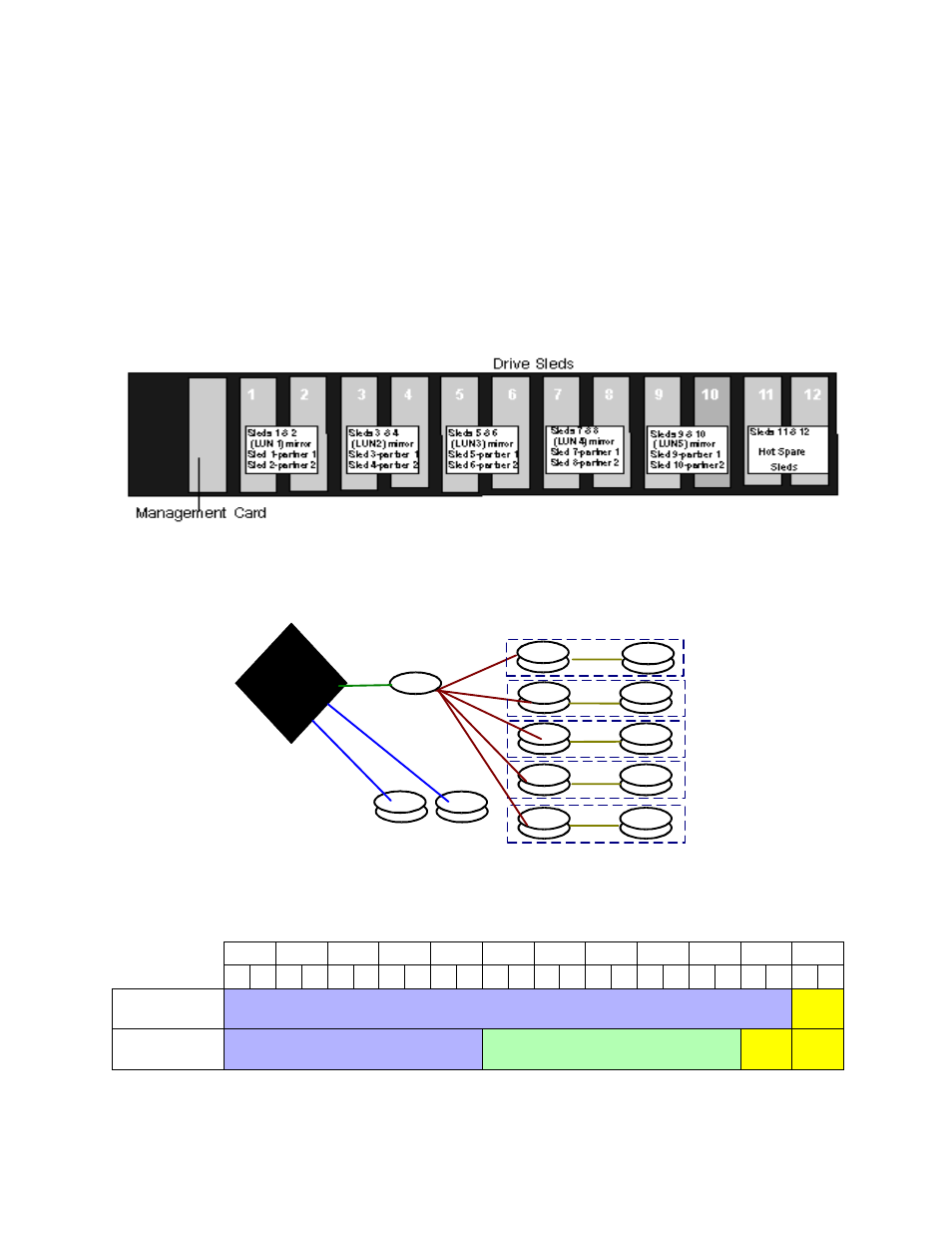

Exhibit 7.2-1 Configuration of sleds in RAID Level 1: five LUNs with two Hot Spare sleds
Exhibit 7.2-2 Configuration of sleds in RAID Level 10: five mirrored pairs of sleds in one Virtual Drive and two Hot
Spare non-mirrored sleds
Exhibit 7.2-3 Configuration of sleds in RAID Level 5
Sled
1
2
3
4
5
6
7
8
9
10
11
12
Drive
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
QuickRAID5 1
LUN 1
Hot
Spare
QuickRAID5 2
LUN 1
LUN 2
Hot
Spare
Hot
Spare
1 Virtual Drive
2 Hot Spare sleds
