ATTO Technology Diamond Storage Array S-Class User Manual
Page 37
26
ExpressNAV

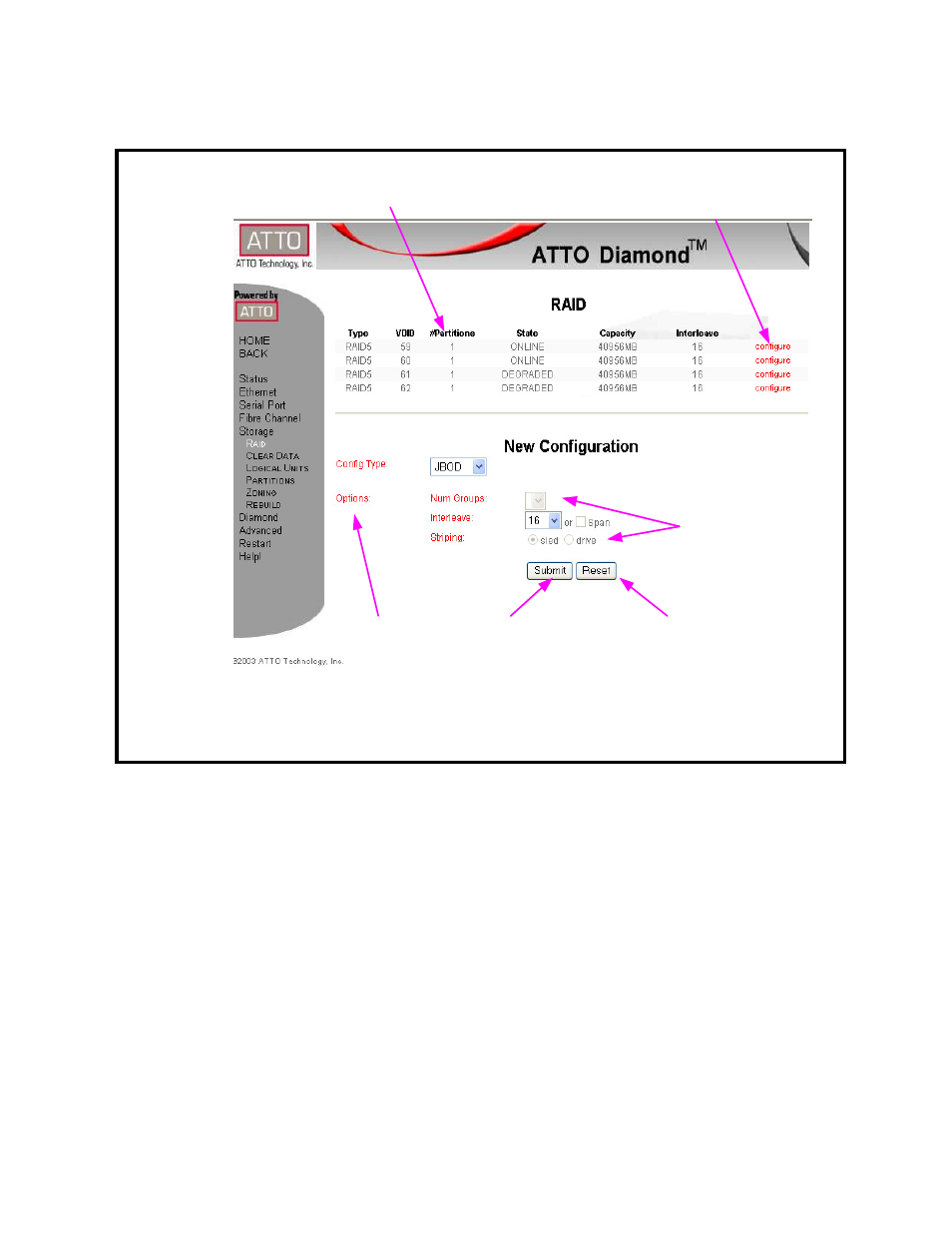

Exhibit 5.4-1 Atypical page in the ATTO ExpressNAV configuration tool.
Sidebar:
select the
item you
wish to
view
Submit button
same as typing all
CLI commands and
saveconfiguration
norestart
Parameter name
Red print links to
help text
options unavailable
because of previous
choice
Information
Reset button
return to previous
setting without
making any changes
Configure choices: red type links to
another page to change configuration
