Z/P Series Hardware Maintenance Manual

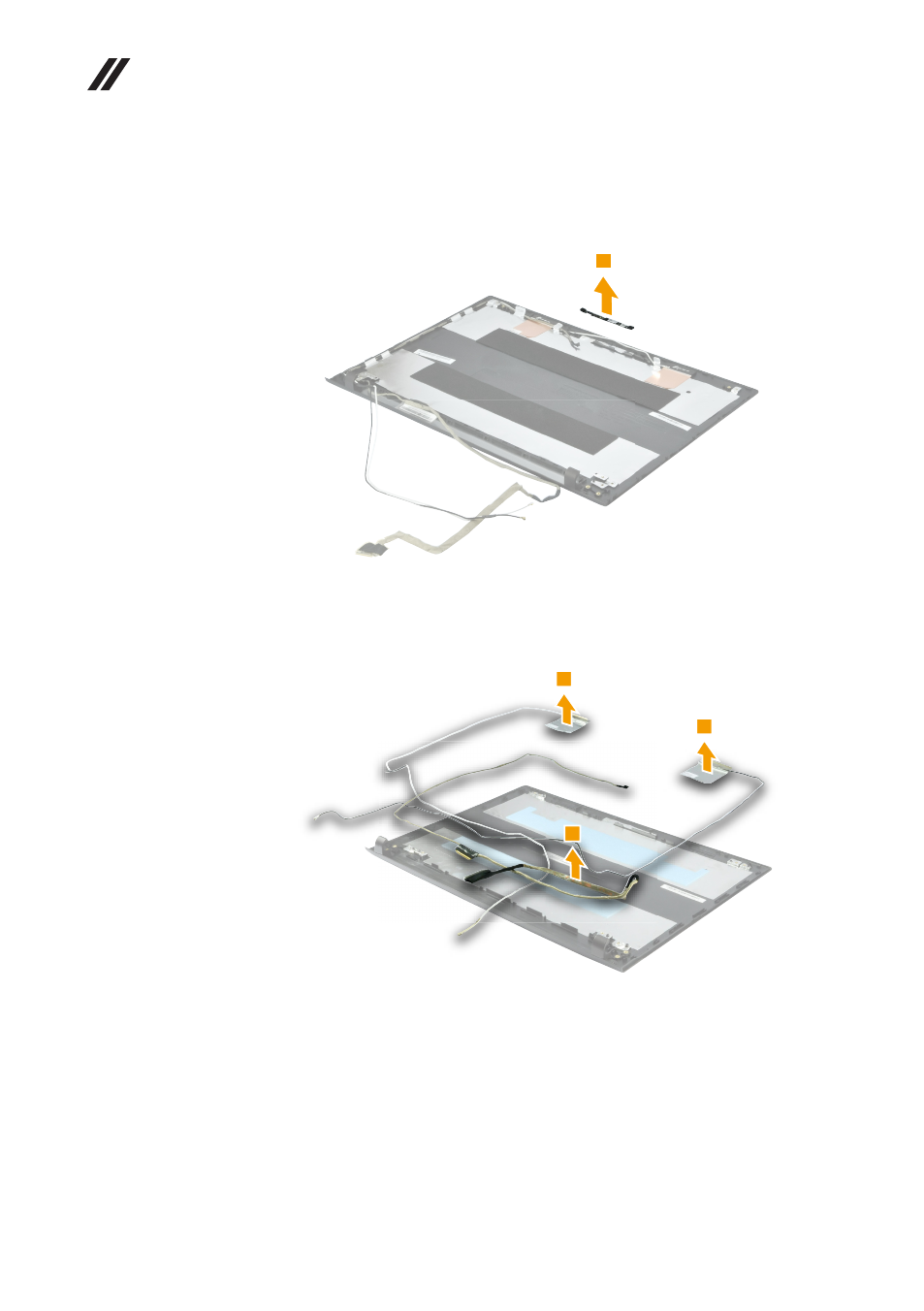

Figure 17. Removal steps of integrated camera, LCD cable and antenna

assembly (continued)

Z500/P500

2

Remove the LCD cable and antenna assembly in the direction shown by arrow

3

.

Z400

3

3

3
