Lenovo z/p series, Z400 – Lenovo IdeaPad P500 Touch Notebook User Manual
Page 59

55
Lenovo Z/P Series

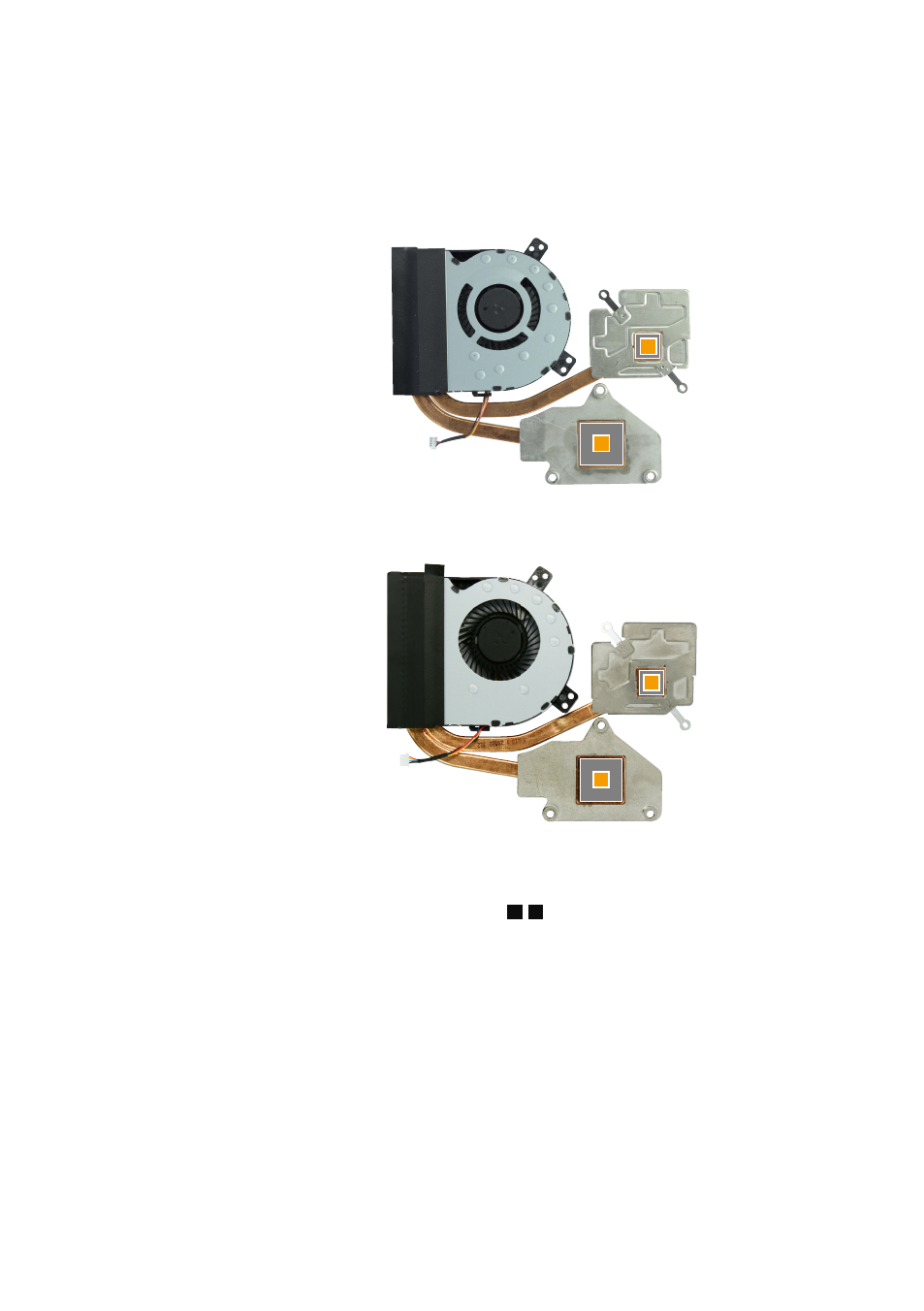

Figure 8. Removal steps of fan assembly and heat sink assembly (continued)
Z400
a
b
Z500/P500
a
b
When installing:
Before you attach the fan assembly to the computer, apply thermal grease,
at an amount of 0.2 grams, to the
a
b
part shown in the figure above. Either
too much or too less grease application can cause a thermal problem due to
imperfect contact with a component.
