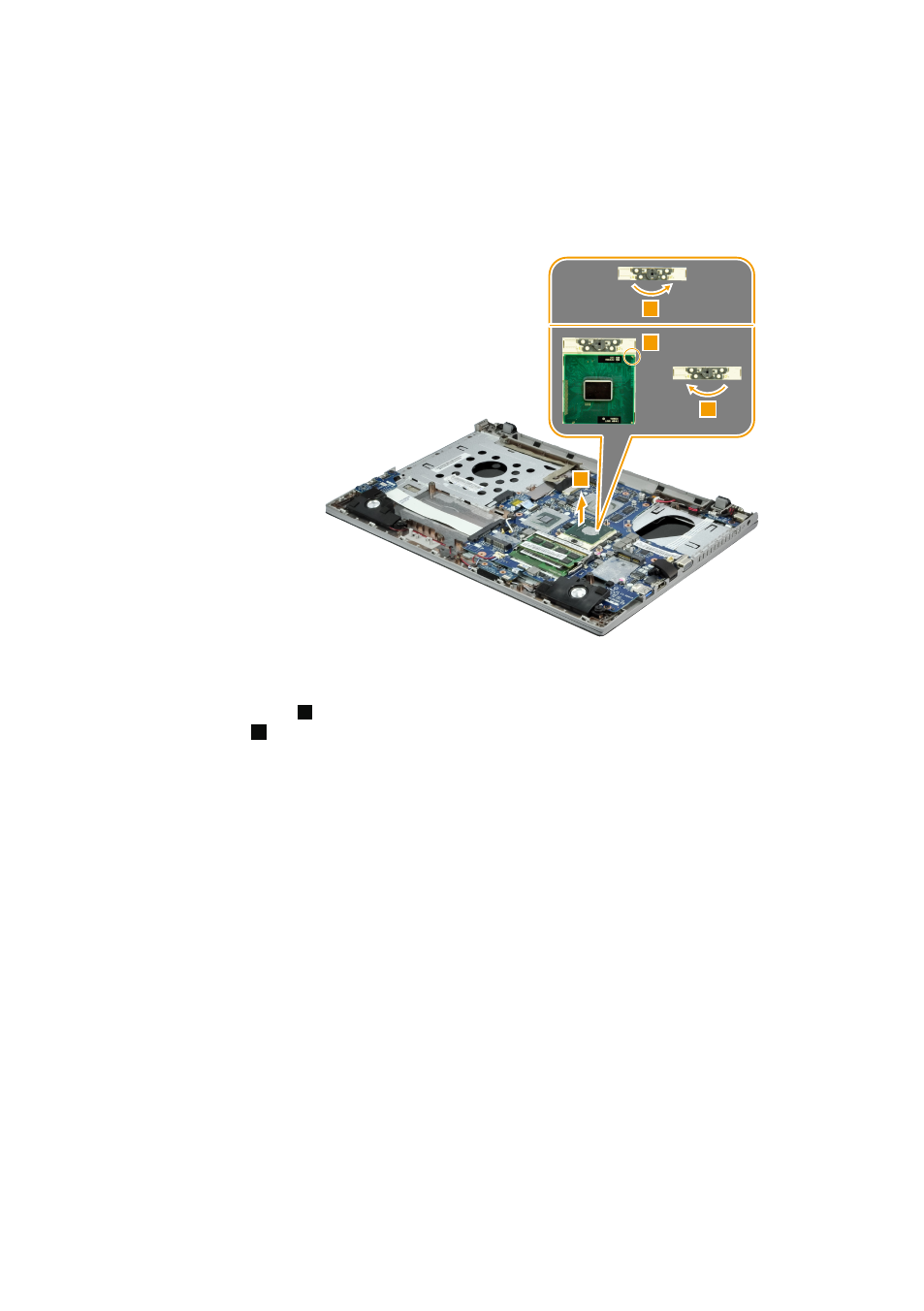

Figure 9. Removal steps of CPU (continued)
Z500/P500
1
2
a
b
When installing: Place the CPU on the CPU socket in the direction shown by
arrow
a
, and then rotate the head of the screw in the direction shown by arrow
b
to secure the CPU.
