Lenovo Z/P Series

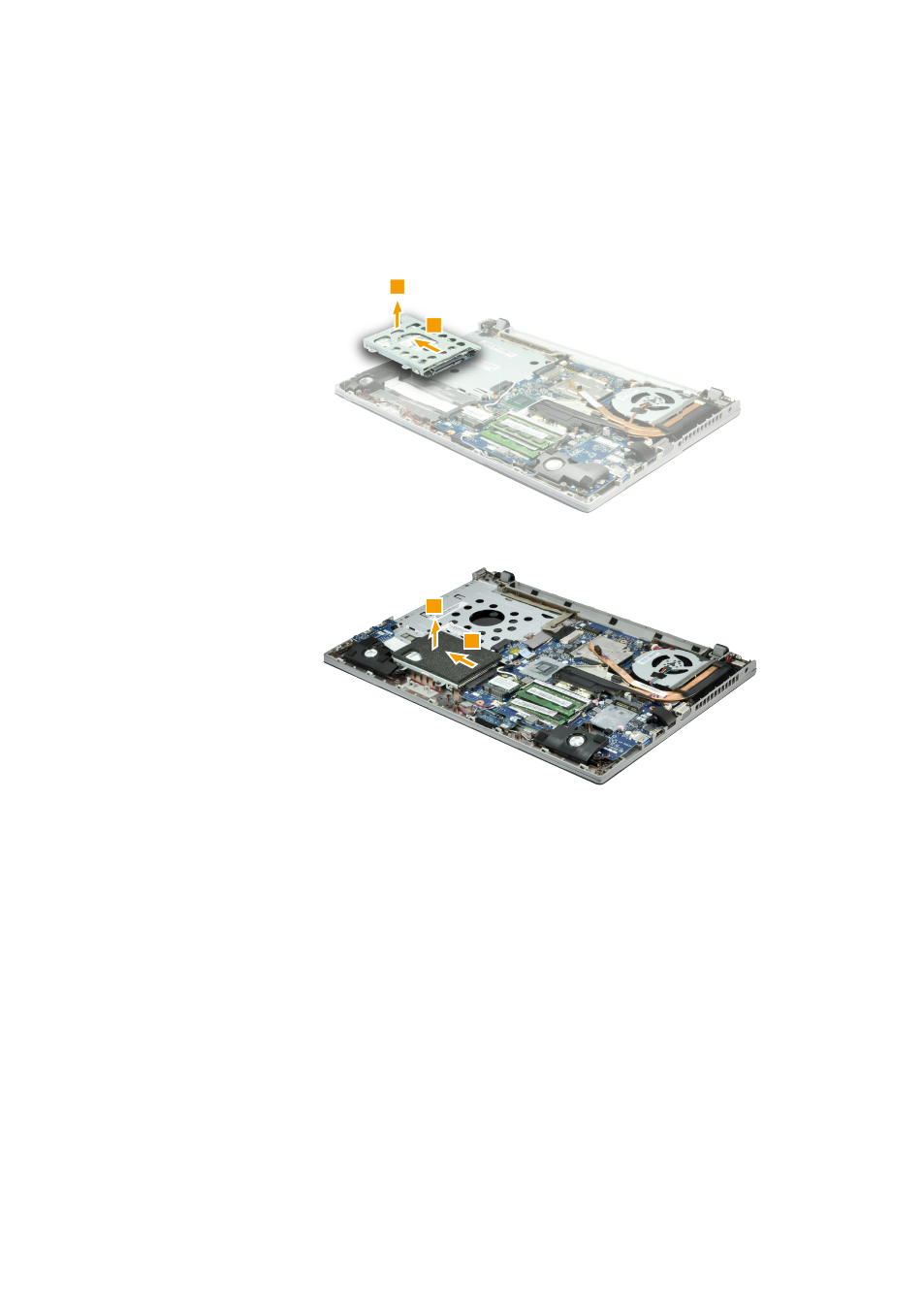

Figure 5. Removal steps of hard disk drive (continued)
Detach the HDD connector in the direction shown by arrow
2
. Remove the
hard disk drive from the slot in the direction shown by arrow
3
.
Z400
3
2
Z500/P500
3
2
When installing: Make sure that the HDD connector is attached firmly.
