Z/P Series Hardware Maintenance Manual

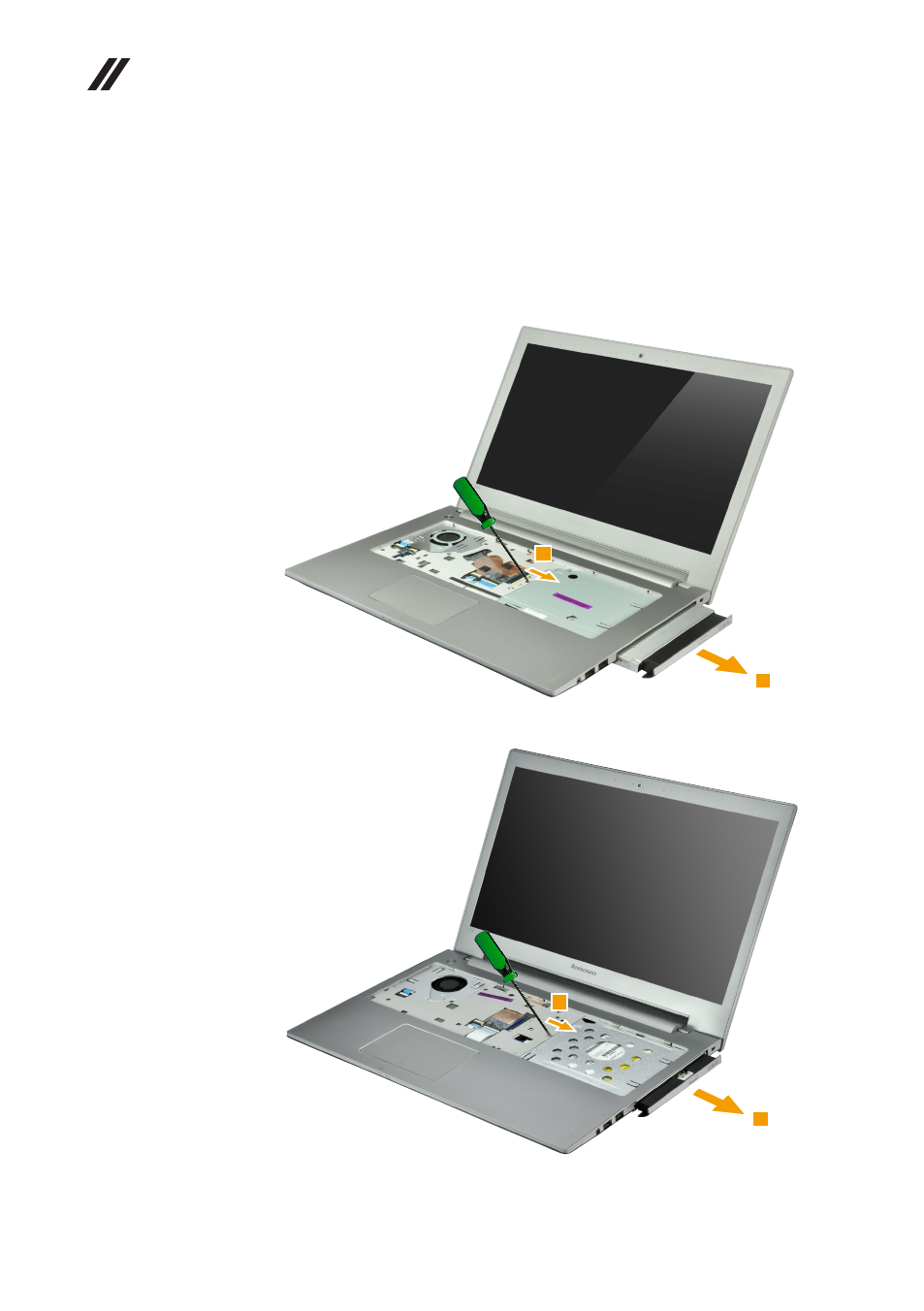

Figure 2. Removal steps of Optical drive (continued)
Insert a screwdriver into the screw hole and push the optical drive in the
direction shown by arrow 2 . Pull the optical drive out in the direction shown by
arrow
3
.
Z400
2
3
Z500/P500
2
3
