Z/P Series Hardware Maintenance Manual

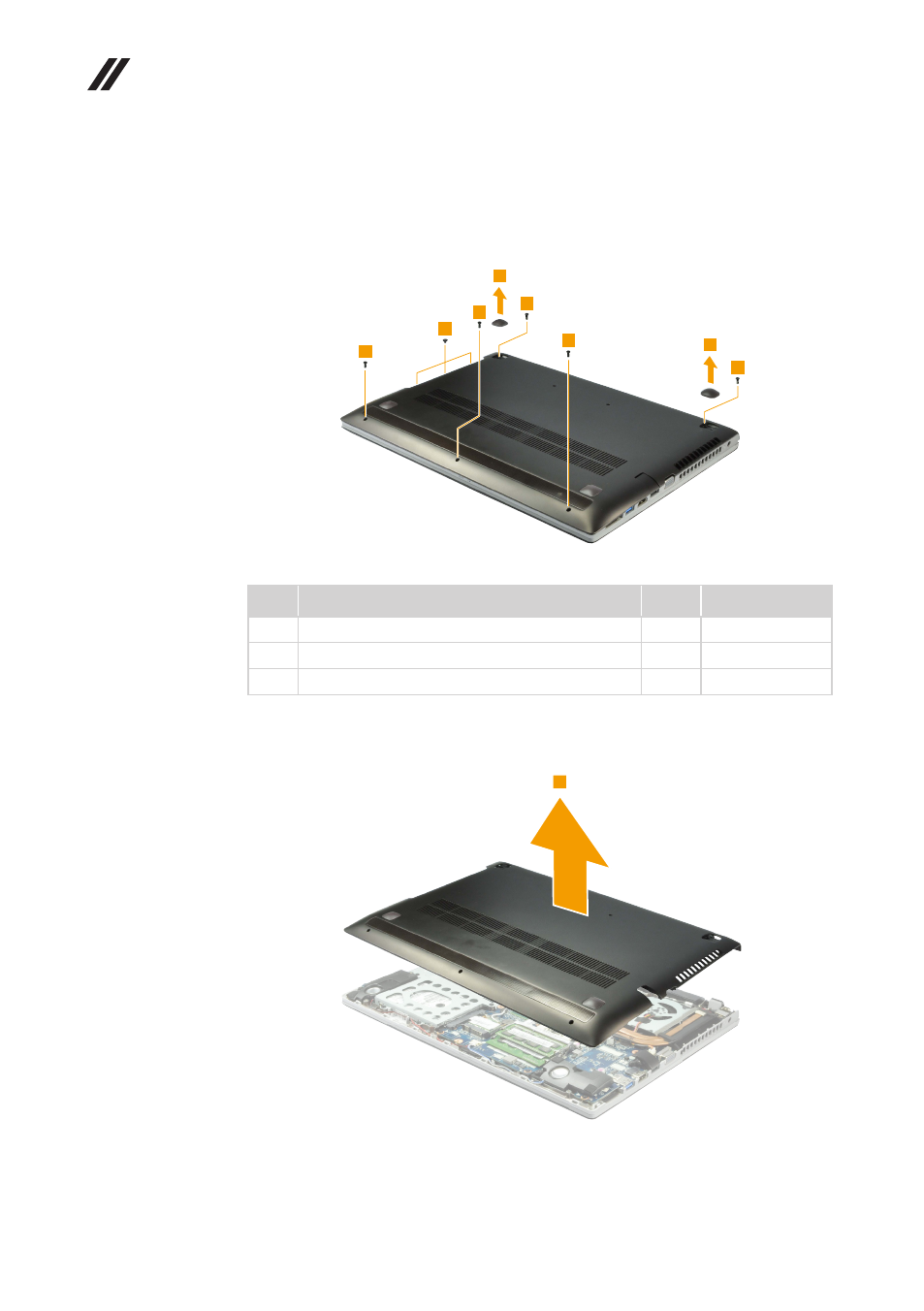

Figure 3. Removal steps of base cover (continued)
Remove the two rubber feet
2
. Remove a total of eight screws (two
3
, three
4
and three
5
) from the bottom.
4
4
5
4
3
3
2
2
Step Screw (quantity)
Color Torque
3
M2.5 × 6 mm, flat-head, nylok-coated (2)
Black
3.0+/-0.3 kgf*cm
4
M2 × 4.9 mm, flat-head, nylok-coated (3)
Black
1.85+/-0.15 kgf*cm
5
M2 × 3 mm, flat-head, nylok-coated (3)
Black
1.85+/-0.15 kgf*cm
Remove the base cover in the direction shown by arrow
