Z/P Series Hardware Maintenance Manual

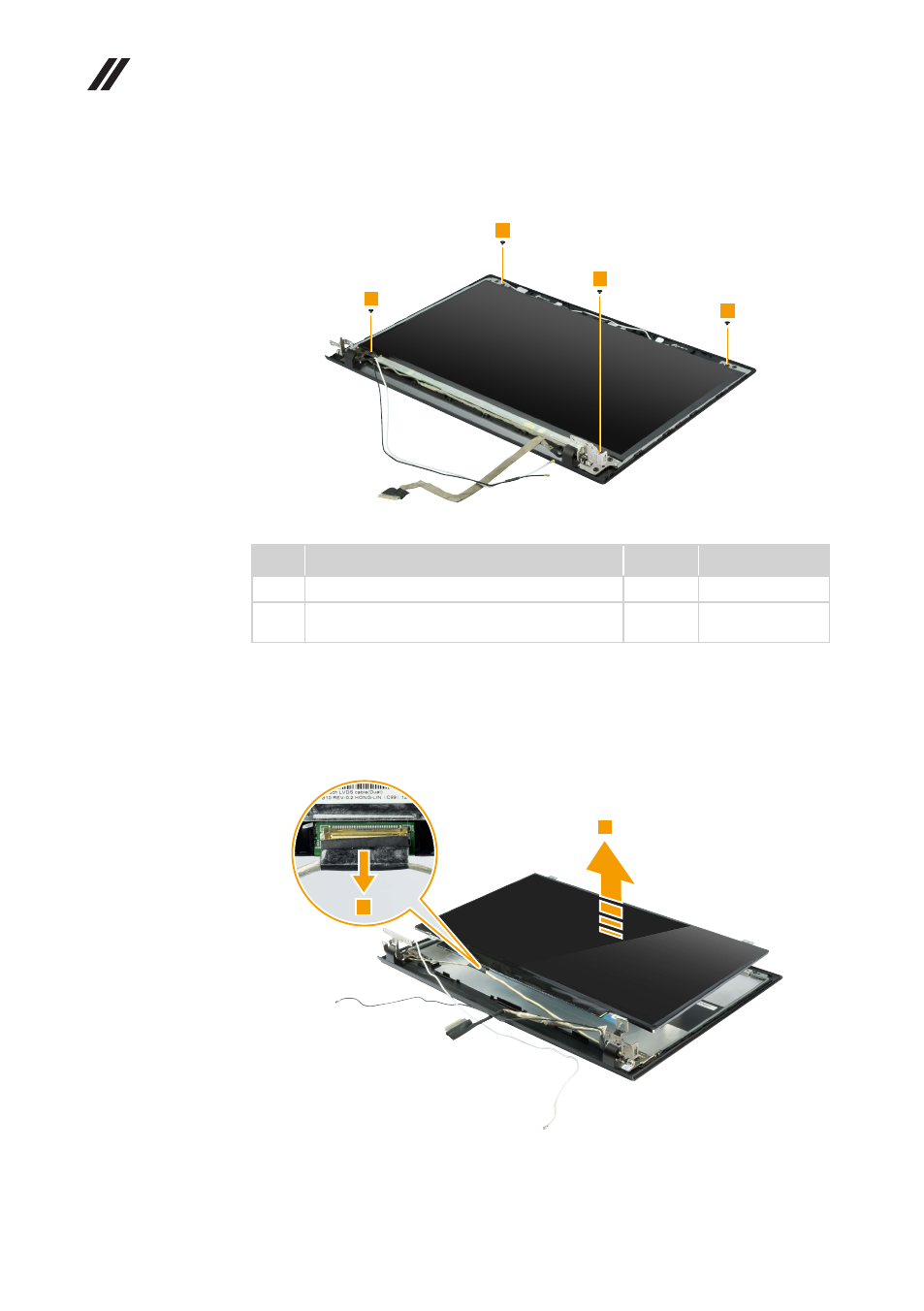

Figure 16. Removal steps of LCD panel and hinges
Z500/P500
1
1
1
1
Step Screw (quantity)
Color
Torque
1
M2 × 3 mm, flat-head, nylok-coated (4) (Z400) Black
1.85+/-0.15 kgf*cm
1
M2 × 2.5 mm, flat-head, nylok-coated (4)
(Z500/P500)
Black
3.62 kg-cm
Lift the LCD panel a little
2
. Peel off the adhesive tape and detach the
connector in the direction shown by arrow
3
.
Z400
2
3
