5-4

Section 5 PRINCIPLES OF OPERATION

.

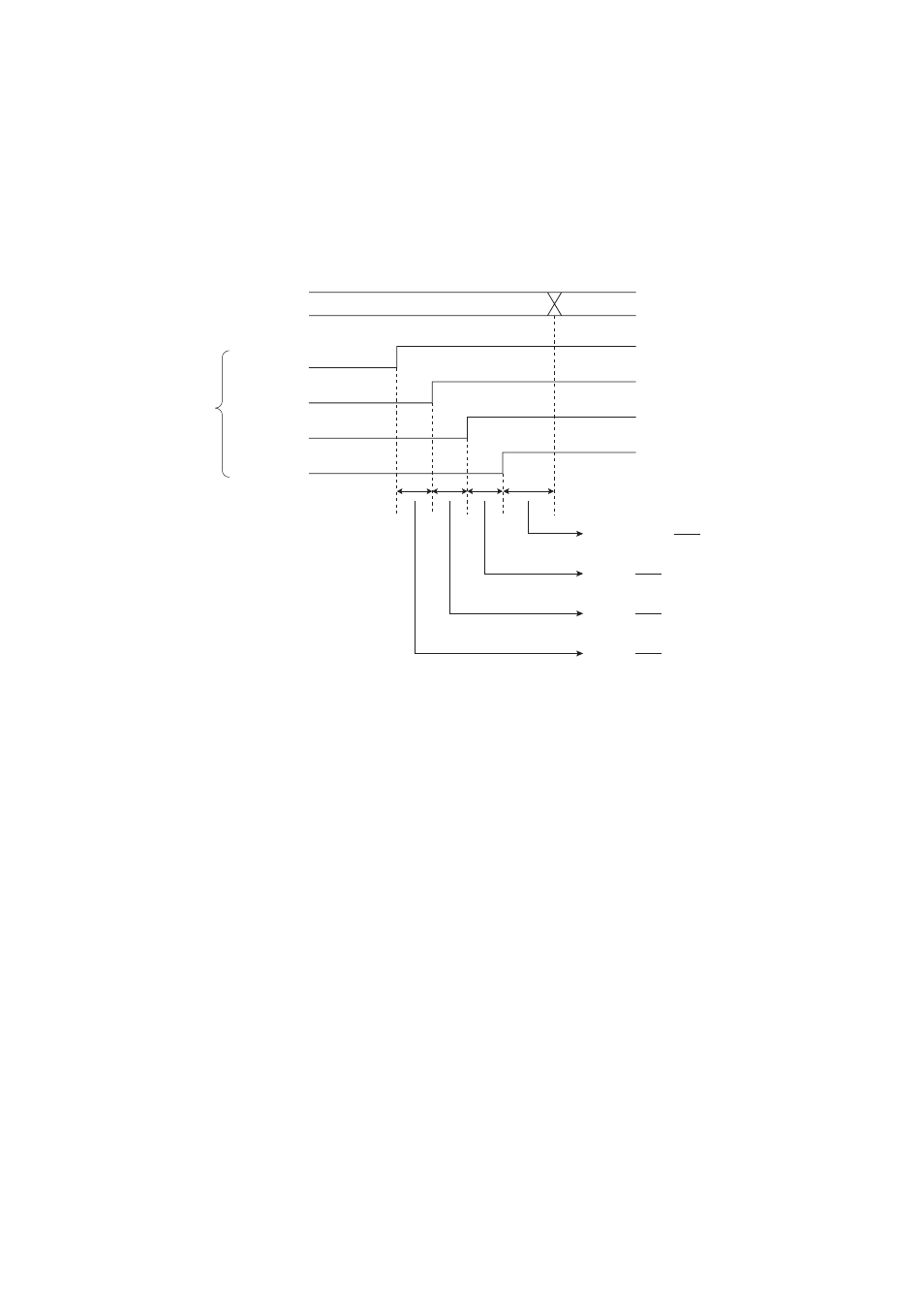

5.3 Bit shift for Alternate A/B select timing

A timing between Alternate pattern A/B select signal and Data output can be selected using the Dip switch on the rear of the

instrument, and its selection step is one 128th of setting frequency.

Data Output

0 bit shift

1 bit shift

2 bit shift

3 bit shift

A/B
select
signal

A

B

3.5

× CLK ×

1

128

CLK

×

1

128

CLK

×

1

128

CLK

Ч

1

128
