NOTE 1 F
OR SEAWAVE 3 , press [2, STC].
NOTE At low scales (as 1/4 of mile) some attempts are necessary to adjust STC value.
2.2.4 FTC (Fast Time Constant) Adjustment
Reduces the effects of rain, snow, fog and cloud that can adversely affect dis-
played targets.
To select the FTC value follow this procedure:
[MENU] + "Sensitivity" + [ENTER] + "FTC" + [ENTER] + select the desired
value + [ENTER]
NOTE The FTC can be also controlled by pressing:
[FTC] 1
directly from the Radar page, after pressing any software/function key.
NOTE 1 F
OR SEAWAVE 3 , press [3, FTC].
NOTE At low scales (as 1/4 of mile) some attempts are necessary to adjust FTC value.
2.2.5 MBS (Main Bang Suppression) Adjustment
A
VAILABLE
O
NLY
F
OR
SWR 9/SWR 10
The MBS adjustment is fundamental for getting clear near center spot image. In
general, you must adjust MBS and STC and Gain to obtain desired Radar image.
To select the MBS value follow this procedure:
[MENU] + "Sensitivity" + [ENTER] + "MBS" + [ENTER] + select the desired
value + [ENTER]
2.3 RADAR FEATURES
2.3.1 Cursor Window
The content of the Cursor Window depends on cursor location.
It shows detailed information on the cursor Lat/Lon, the cursor bearing and range,
the center of the screen, EBL/VRM, Guard Zone, Heading Marker and Parallel
Cursor. It is hidden when the cursor is hidden.
To enable (On) or disable (Off) the Cursor Window display follow this procedure:
[MENU] + "Radar Features" + [ENTER] + "Cursor Window" + [ENTER] +
"On"/"Off" + [ENTER]

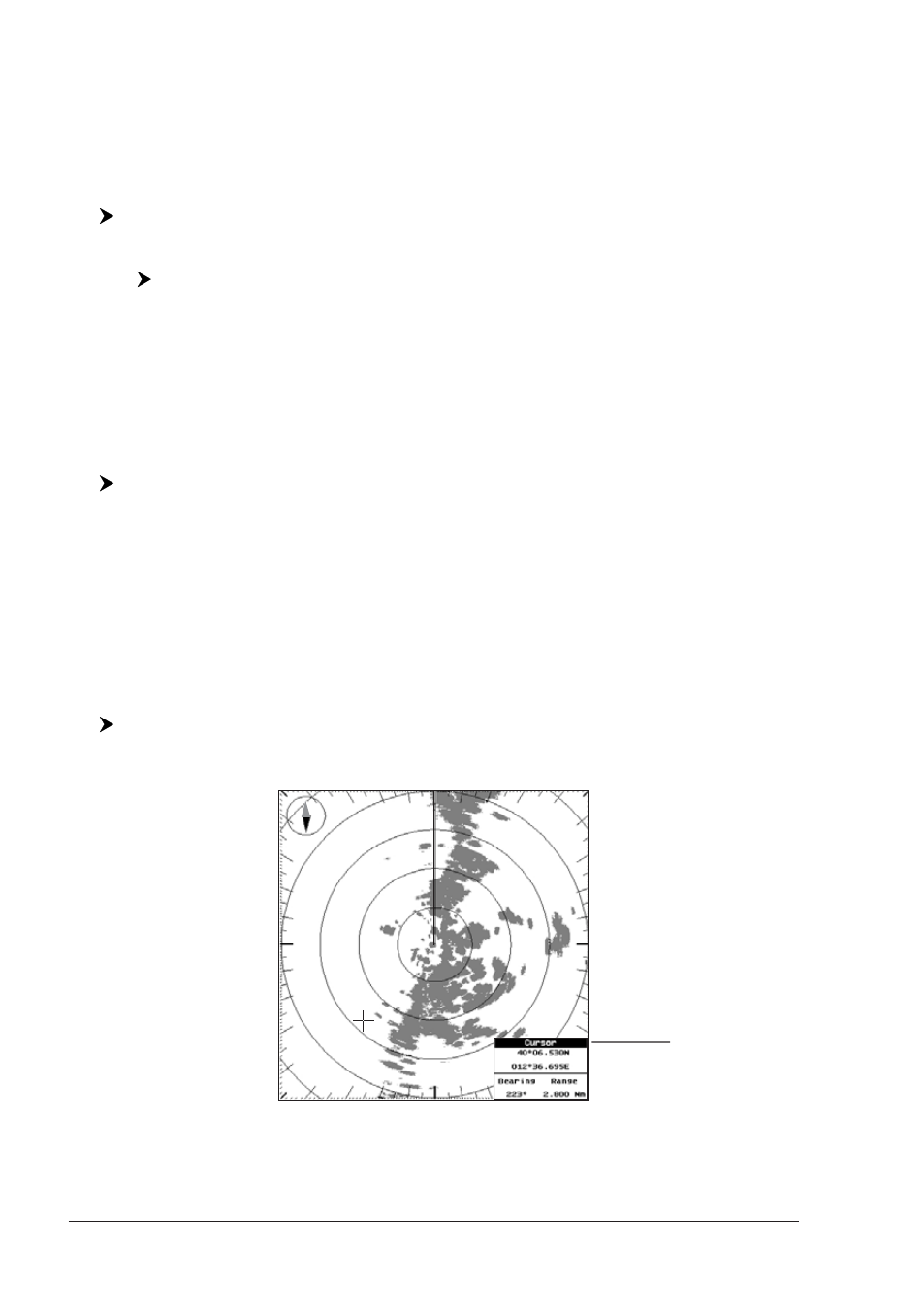

Cursor Window
Fig. 2.3.1- The Cursor Window
