20 User Manual
HDG 000 T O
RNG
4 Nm
Rings
24 Nm
Motion Heading
Relative Head Up
Gain STC/FTC
82 67/Off
Exp Int. Rej.
Off Off
G.Z Trails
Off Off
SOG 1.0 Kts
COG 000 T O
DST 4.385
BRG 096 T
nm
O
42 49.451N
010 14.734E
O
O

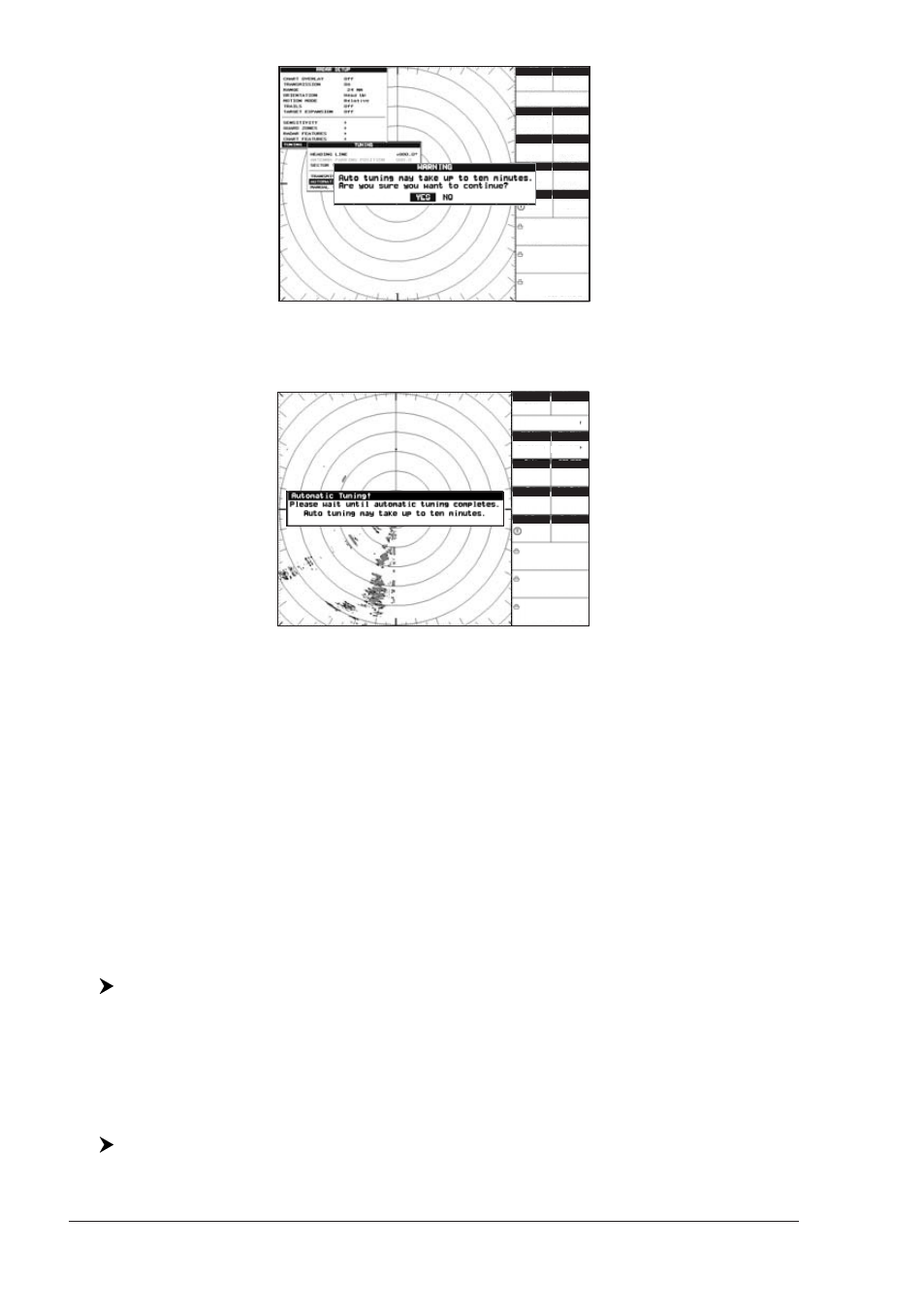

Fig. 1.7.4.5d - Automatic Tune Warning message
♦
Press [ENTER] to proceed, the Automatic Tuning starts and the following
Window is displayed on the screen:
6 1
7
100 0
HDG 007 T O
RNG
1 Nm
Rings
6 Nm
Motion Heading
Relative Head Up
Gain STC/FTC
100 0/Off
Exp Int. Rej.
Off Off
G.Z Trails
Off Off
SOG 1.0 Kts
COG 000 T O
DST 4.385
BRG 096 T
nm
O
42 49.451N
010 14.734E
O
O
Fig. 1.7.4.5e - Automatic Tune page
♦
When the Auto Tuning completes the Warning Message is hidden and all
Radar functionalities return to be available.
1.7.4.6 Save Tuning to User C-CARD/MEDIA
This is useful to avoid the user having to retune up Radar after a Clear RAM
operation or a software update. The following data will be saved:
♦
Heading Line angle
♦
Antenna Parking Position
♦
Sector Transmission Off Start Angle
♦
Sector Transmission Off End Angle
♦
Transmission Trigger Delay
♦
Course Tune
♦
Fine Tune
Insert the User C-CARD/MEDIA into the slot, then follow the procedure:
[MENU] + "Tuning" + [ENTER] + "Save Tuning to User C-CARD/Media" +
[ENTER]
The file name is given automatically as TUNING1.
1.7.4.7 Load Tuning from C-CARD/MEDIA
Loads the complete settings from the User C-CARD/MEDIA and changes the active
menu settings. Insert the User C-CARD/MEDIA into the slot, then follow the
procedure:
[MENU] + "Tuning" + [ENTER] + "Load Tuning from User C-CARD/Media"
+ [ENTER]
