Programming Port: DIP Switches
The Fusion Base Station factory default settings are all OFF. The left
Programming Port (#8, page 6) is end-user configurable. Programming Port (#9,
page 6) on the right is reserved for Revolabs Use Only.
NOTE: The Fusion system must be powered off and back on for any
DIP Switch changes to take effect.

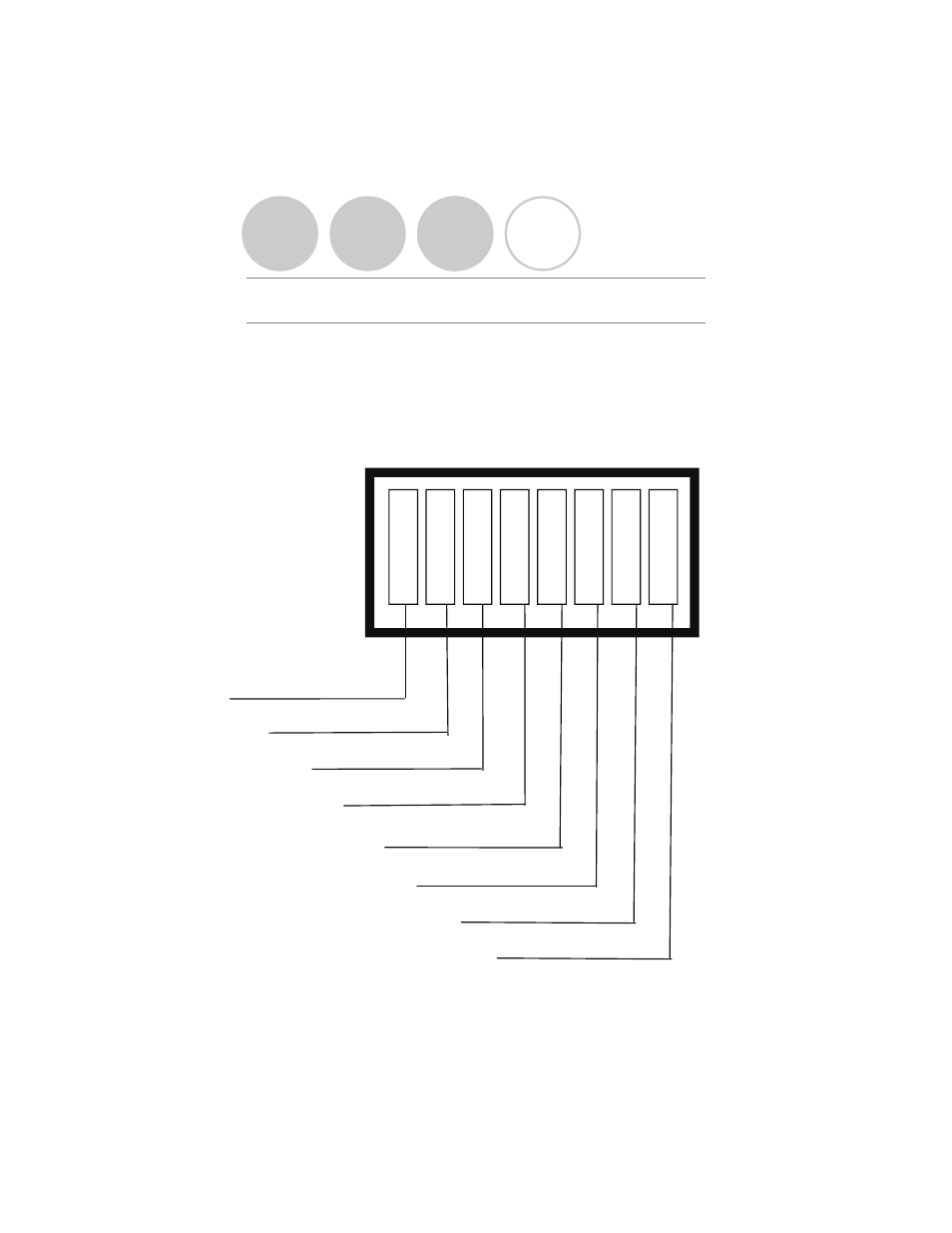

OFF
ON
Transmit Power Medium
Frequency A Mode
Tabletop Master Mute
Frequency B Mode
Phone Auto Answer
Transmit Power Low
1
2
3
4
5
6
Page 18
IR Remote
Set-Up Guide
Hearing Assistance
7 8
