Tandberg™ Installation (Tandberg Edge 95 shown for example)
This information is meant to be illustrative only. Consult your Tandberg
Videoconferencing System Administrator Manual for the specific instructions.

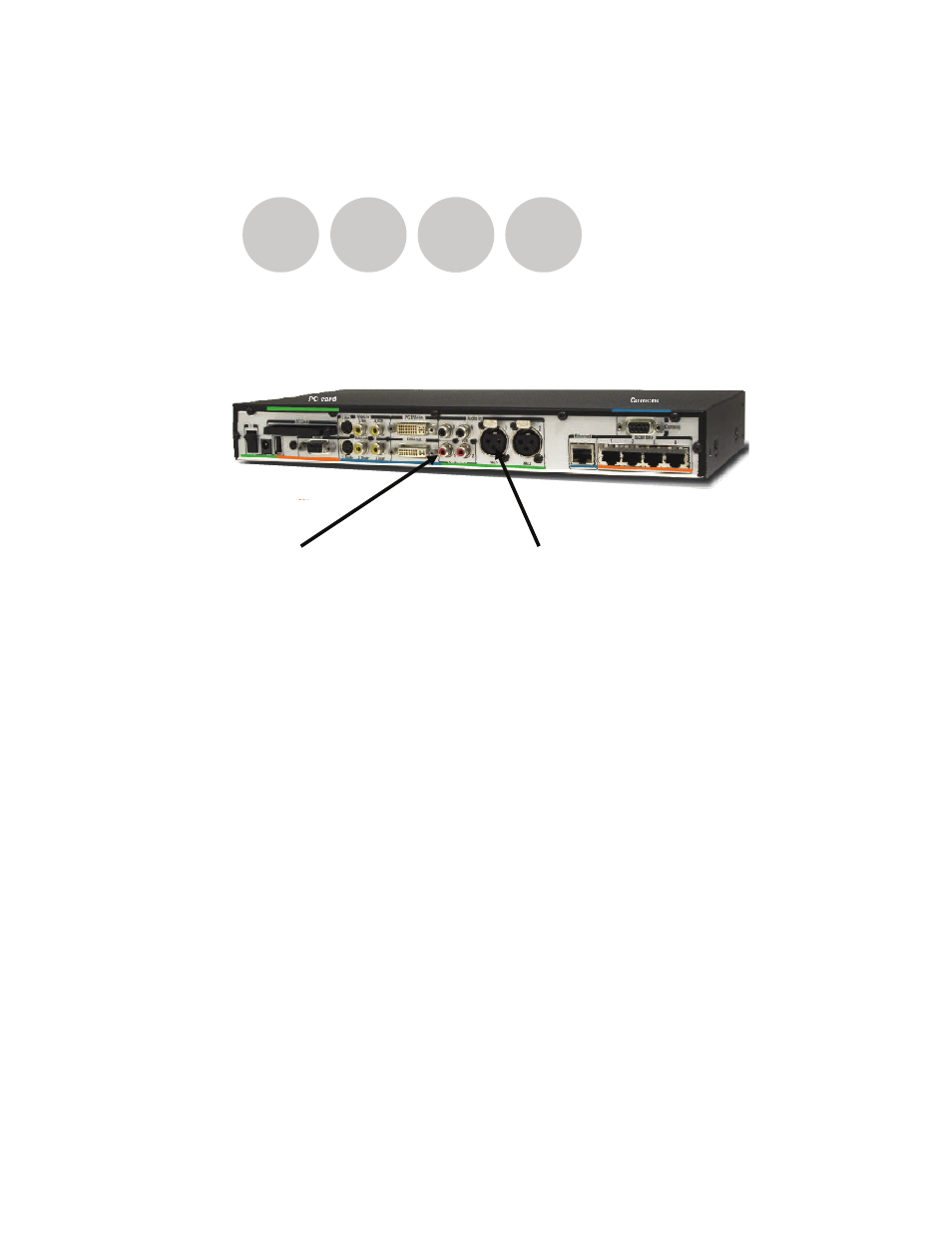

Step 1 Step 2
1. Plug the black RCA connector on one end of Cable C into Tandberg video-
station , and then plug the black RCA connector on the other
end into the Fusion Base Station . The other RCA connector is not
used.
2. Plug one XLR connector of Cable D, XLR to XLR, into Tandberg video-
station and the other XLR connector into the Fusion Base
Station Mic Level Output .
To configure the Tandberg system:
Select the button from the main screen to access the System menu.
Go to Audio settings
Confirm or modify the following settings:
 Input 1 - MIC
 Output 1 - ON
 Audio Leveling - OFF
 Echo Canceller - OFF
Adjust the audio Input Level if necessary.
Speak into the Revolabs microphones that are connected to the audio line inputs.
The audio meter should peak at about 5 dB.
