Revolabs Fusion Setup Guide - Manual (Page 12)

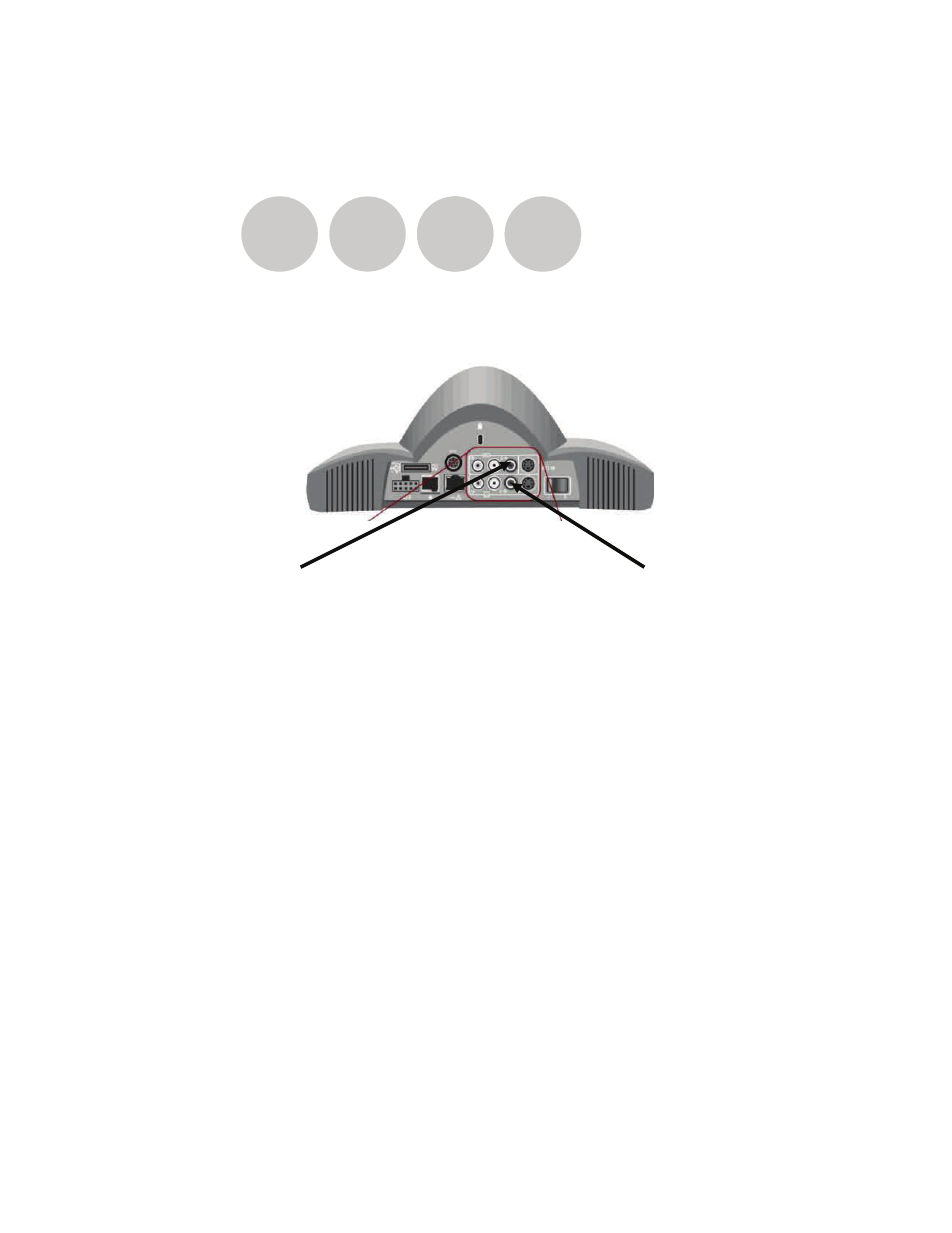

Polycom® Installation (Polycom VSX7000 shown for example)
This information is meant to be illustrative only. Consult your Polycom
Videoconferencing System Administrator Manual for specific instructions.
Step 1 Step 2
1. Plug the red RCA connector on one end of Cable C into Polycom video-
station , and then plug the red RCA connector on the other
end into the Fusion Base Station .
2. Plug the black RCA connector on one end of Cable C into Polycom video-
station , and then plug the black RCA connector on the other end
into the Fusion Base Station .
To configure the Polycom system:
Select the button from the main screen to access the System menu.
Select the System / Admin settings.
Enter the administrator password and press OK (if needed).
Select the Audio settings.
Confirm or modify the following settings:
 Midrange Speaker - OFF
 Line Input – Audio Mixer
 Echo Canceller - OFF
 Line Output – Monitor Far Site Audio
 Press OK to save changes.
