● Designed to lubricate a single tool, valve, cylinder, air
motor, or other air driven device.
● One Oil-Fog lubricator should be provided for each
device requiring lubrication
● All around (360°) visibility of the sight-feed dome
simplifies installation and adjustment
● Lubricators equipped with 1 and 2 quart (1 and 2 liter)
reservoirs can be filled under pressure
● The 2 and 5 U.S. gallon (8 and 20 liter) reservoirs are
rated to ASME Pressure Vessel Code, Section VIII

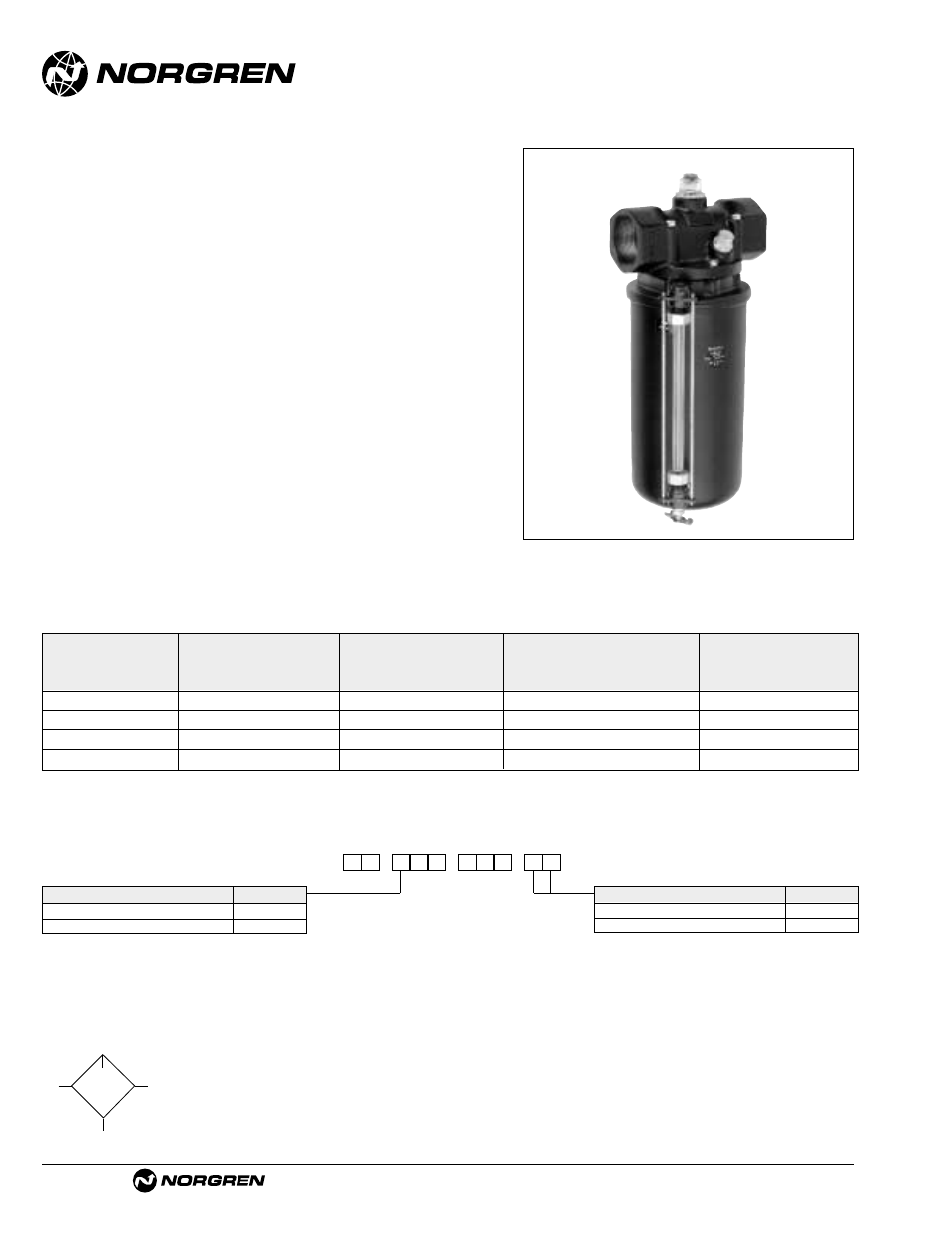

Oil-Fog Lubricator
1-1/2" Port Size
ISO Symbol
With Drain
* Models with 1 and 2 quart reservoirs must not be located downstream of frequently cycling directional control valves. Models with the 2 and 5 gallon reservoirs may
be located downstream of frequently cycling directional control valves.
** At 100 psig (6.9 bar) inlet pressure and pressure drop of 5 psid (0.35 bar).
Reservoir Recommended
Reservoir Working Capacity Operating Flow Range** Weight
Model Number Nominal Size Fluid Ounce (Liter) scfm (dm 3 /s) lbs (kg)
10-028-045 1 quart (1 liter) * 19 (0.56) 110 to 590 (52 to 278) 5 (0.91)
10-028-046 2 quart (2 liter) * 45 (1.33) 110 to 590 (52 to 278) 6 (2.72)
10-028-047 2 U.S. gallon (8 liter) 113 (3.34) 110 to 590 (52 to 278) 16 (7.26)
10-028-048 5 U.S. gallon (20 liter) 316 (9.34) 110 to 590 (52 to 278) 28 (12.70)
Ordering Information. Models listed have 1-1/2" PTF parallel threads.
Alternative Models
2
★ - ★ ★ ★ ★
8 - - 0 1
Option Add
Factory installed quick fill nipple -2J
Factory installed sight feed dome -8W
★
Threads Substitute
PTF 0
ISO G parallel 8
