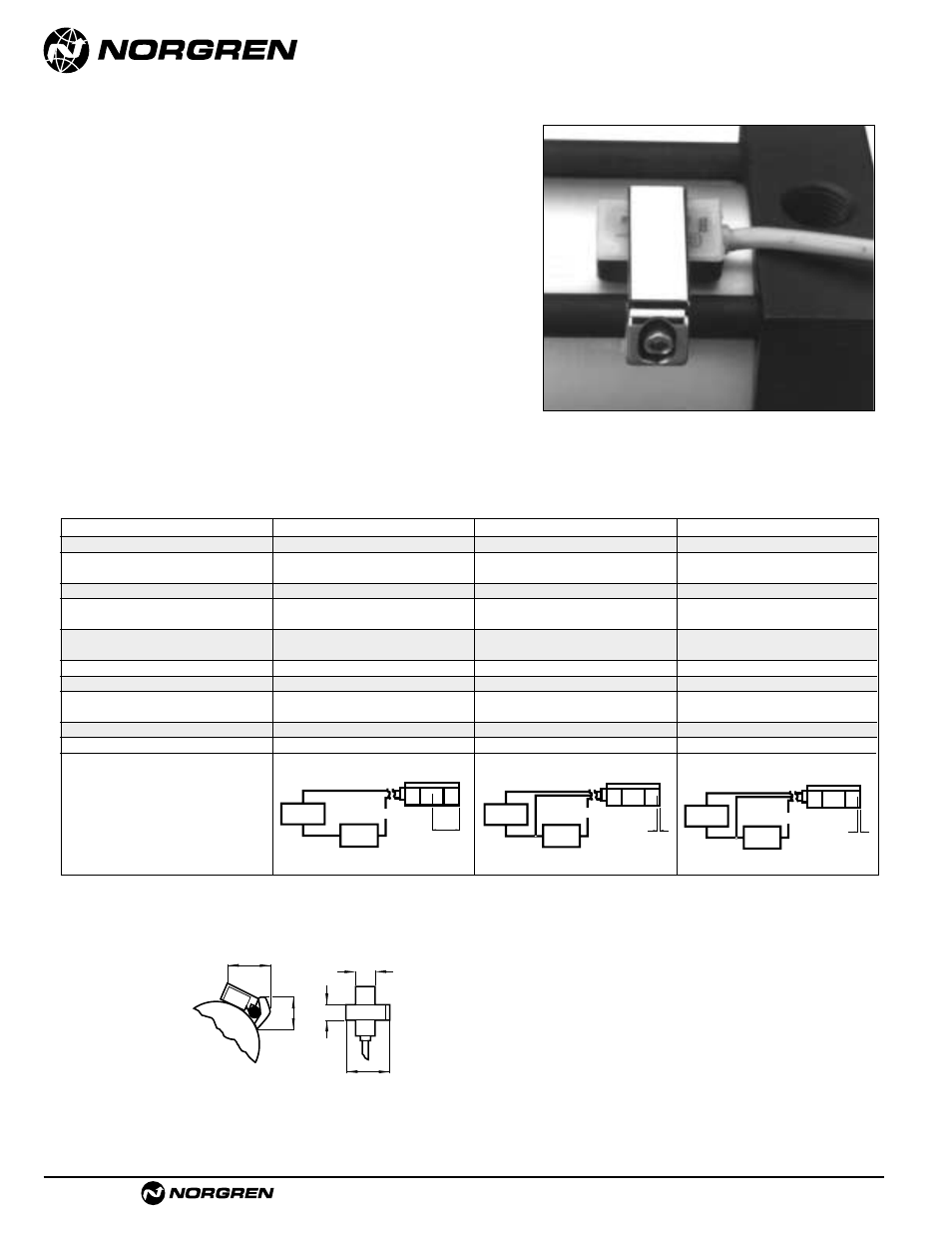

Magnetically operated, non-contact sensing system, Specifications wiring diagrams, Act-1-90 – Norgren NFPA Aluminum & Steel Cylinders User Manual

Page 90

ACT-1-90

Brookville, OH USA

Phone 937-833-4033

www.norgren.com

Series A & EA Cylinder Switches

Series J & EJ Cylinder Switches

•

Magnetically operated, non-contact
sensing system.

•

Consists of a magnet in the piston, and a
sensing switch clamped on the cylinder tie rod.

•

One or more switches may be mounted to
provide an indication of piston position or to control
or initiate any sequence function.

•

Adjustable mounting brackets allow for switches
to be securely positioned anywhere along the
range of piston travel.

•

LED indicator light facilitates installation
and troubleshooting.

•

Mounting brackets standard with switches.

Switches for 1-1/2" to 2-1/2" Cylinders

Switch & Mounting Bracket Dimensions

Supply

6-24 VDC

Supply

6-24 VDC

Supply

120V Max

0.45

0.10

–

Center of Sensing Area

Load

BRN

WHT

BRN

GRN

Specifications

Wiring Diagrams

*Metal Oxide Varsitor Surge Suppression. NOTE: All CS8 Series Switches are supplied with 9 foot leads.

CS8-2 Series

1.263"

.53"

1.078"

.698"

.425"

Switch Model

CS8-2-04 Reed

CS8-2-31 Solid State

CS8-2-32 Solid State

Bore Sizes

" thru 2

Switch Type

Reed Switch

Solid State & Light,

*MOV & Light

Sourcing PNP

Sinking NPN

Function

SPST Normally Open

Normally Open

Switching Voltage

5-120 VDC/VAC

6-24 VDC

50/60 Hz

Switching Current

.5 Amp Max

.005 Amp Min

Switching Power

10 VA

12 Watts Max

Max Voltage Drop

3.5 Volts

.5 Volts

Magnetic Sensitivity

85 Gauss

Enclosure Classification

NEMA 6 & CSA Approved

Temperature Range

-22°F to +176°F

NOTE:
1-1/2" to 2-1/2" bore steel cylinder is
supplied with an aluminum tube as
standard. If a 3-1/4" to 12" bore steel
cylinder requires switches, the aluminum
tube and magnetic piston options must
be selected.
