7-8 Configuration
Version 2.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.
7.1.4 Using Manual Configuration: RAID 0
Follow these steps to create a RAID 0 storage configuration using the
Manual Configuration mode of the Configuration Wizard.

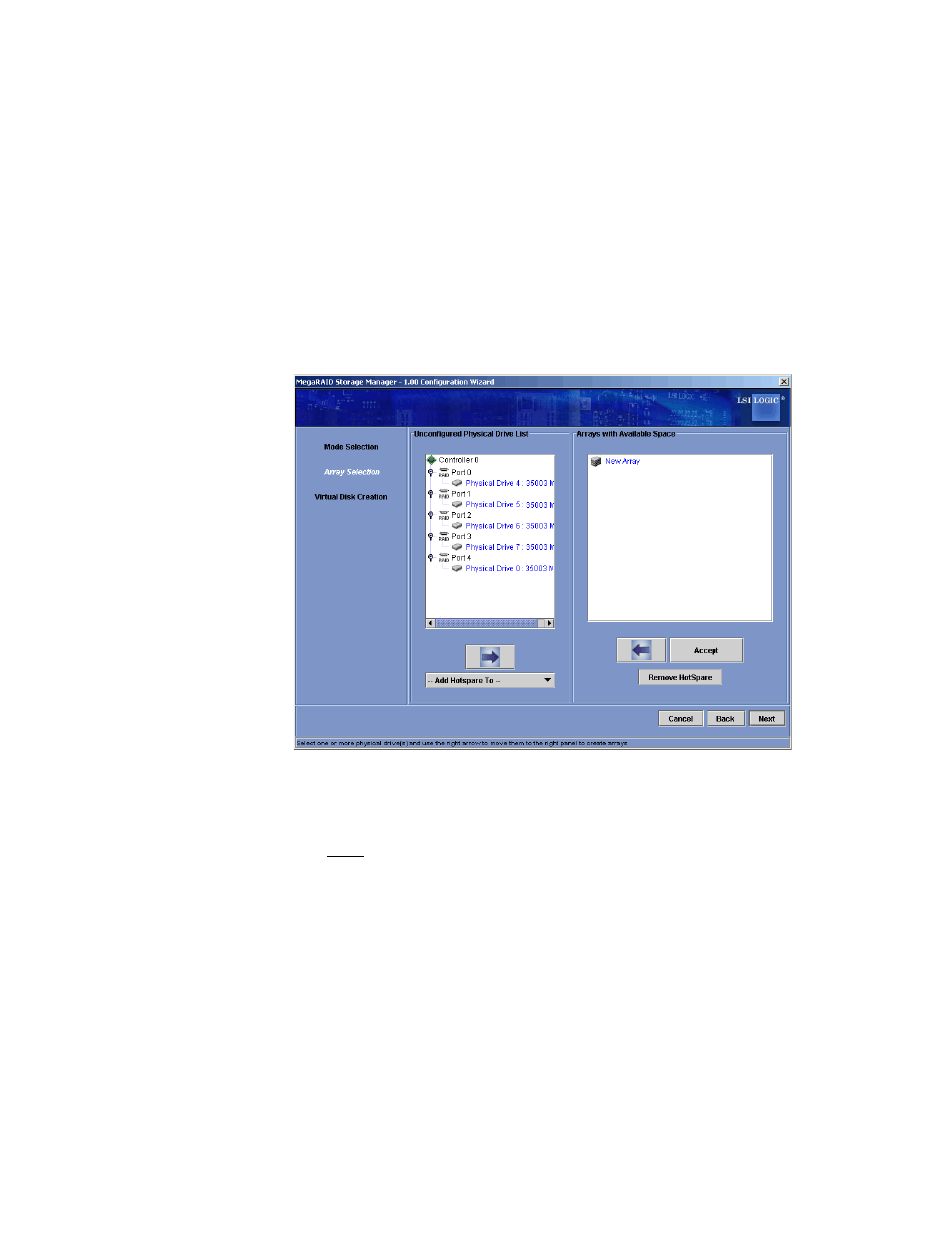

Figure 7.5 shows the first screen that appears when you select Manual
Configuration.
Figure 7.5 First Manual Configuration Screen
1. In the first Manual Configuration window, select two or more
available drives in the left panel. Click the Right Arrow button to
move the selected drives to the right panel.
Note: MegaRAID Storage Manager software will not allow you to
select the disk drive on which the operating system is
installed or any other drives that are already part of a
configuration.
2. Click Accept to accept these drives for the new RAID 0 array.
