Creating a New Storage Configuration 7-11
Version 2.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.

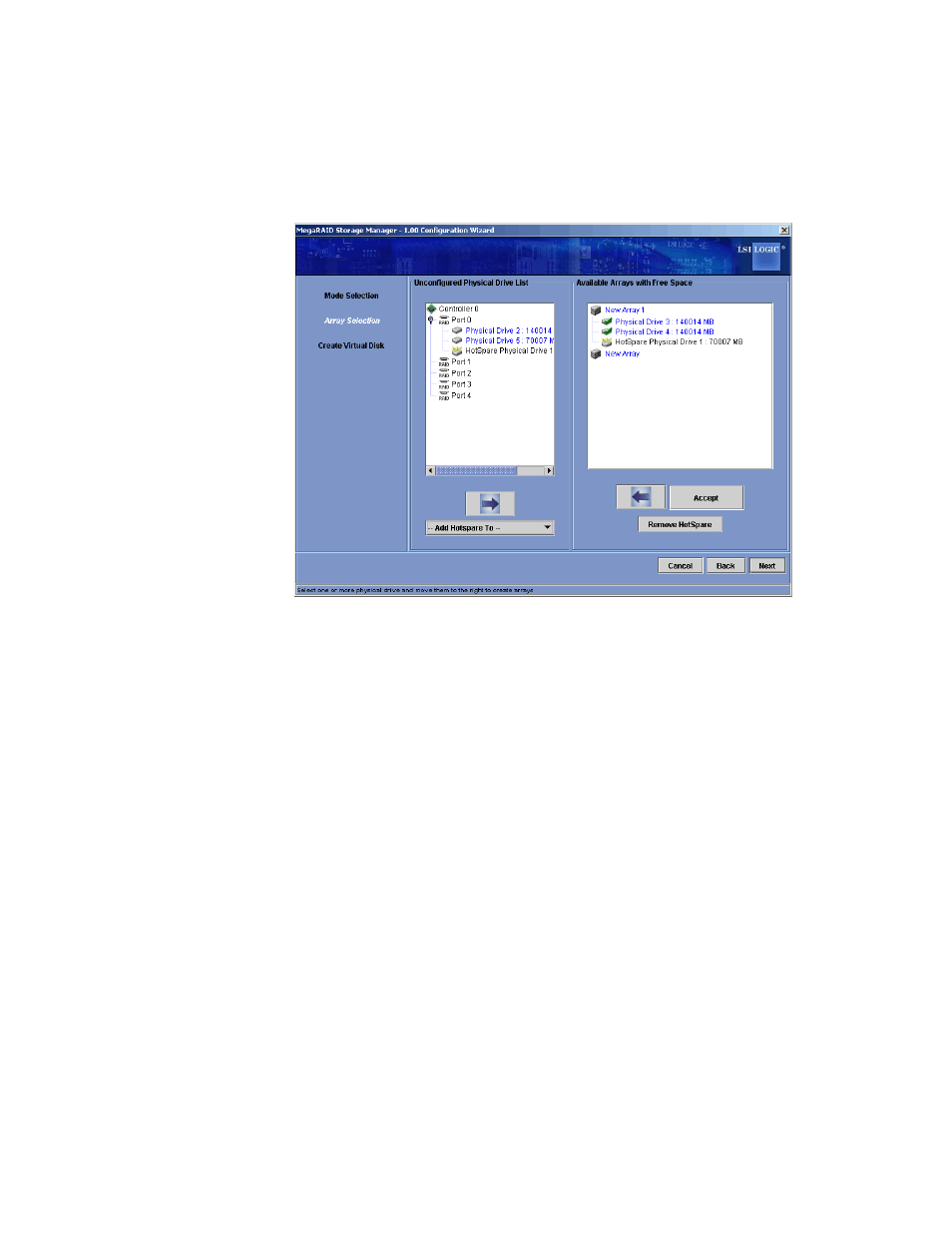

Figure 7.7 Manual Configuration – Adding a Hotspare
4. To remove a hotspare from an array, select it in the right panel and
click Remove HotSpare.
5. Click Next.
The next Configuration Wizard window appears, as shown in
Figure 7.6 .
The Arrays with Free Space menu lists the new array(s) that you just
defined, plus any existing arrays with holes (free space) that could
be used for a new configuration.
6. Select the array to use for the new virtual disk.
7. In the right panel, select RAID 1 as the RAID level.
8. (Optional) Set Size (in MB) to a lower number if you do not want to
use the entire available capacity for the new virtual disk.
9. (Optional) Change the other Virtual Disk Properties, if necessary. For
more information, see
Section 7.1.1, “Understanding Virtual Disk
Parameters.”
10. Click Accept to accept the configuration of the new virtual disk.
