6-2 MegaRAID Storage Manager Window and Menus
Version 2.0 Copyright © 2006 by LSI Logic Corporation. All rights reserved.
When the program starts, the Select Server window appears, as
shown in
Figure 6.1 .

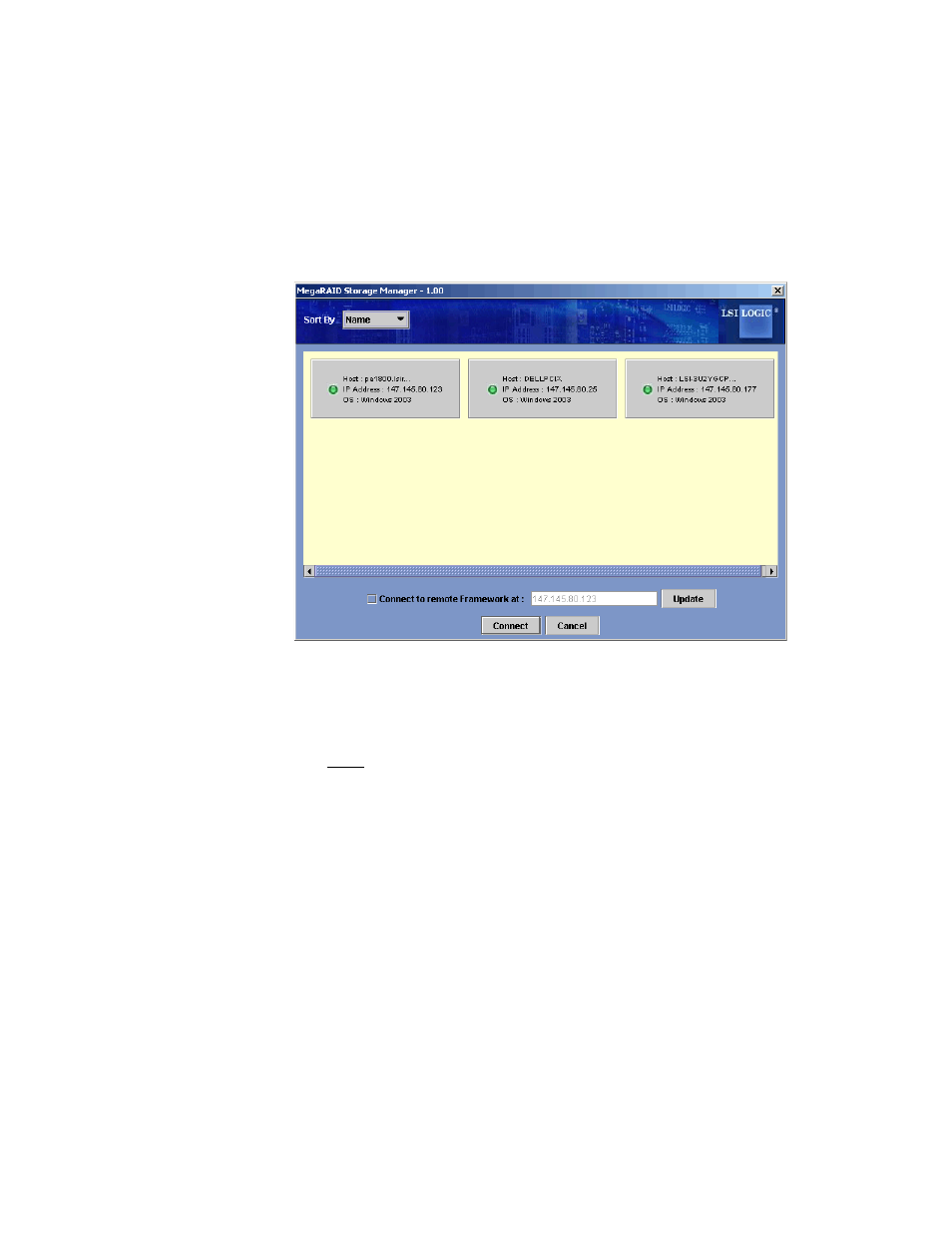

Figure 6.1 Select Server Window
If the circle in the server icon is yellow instead of green, it means
that the server is running in a degraded state—for example, because
a disk drive used in a virtual disk has failed. If the circle is red, the
storage configuration in the server has failed.
Note: To access servers on a different subnet, type in the box at
the bottom of the screen the IP address of a server in the
desired subnet where MegaRAID Storage Manager
software is running, and click Update. If you check the
Connect to remote Framework box, you can also access
a standalone installation of MegaRAID Storage Manager
software, if it has a network connection.
2. Double-click the icon of the server that you want to access. The
Server Login window appears, as shown in
Figure 6.2 .
