CS5510/11/12/13

12

DS337F4

V+

VREF

AIN+

SCLK

SDO

CS5510/11/12/13

CS

+5.0 V

Supply

1

2

6

8

4

Clock Source

Serial

Data

Interface

AIN-

3

V-

7

0.1

μF

(Required for

CS5510/12

Applications)

Differential Input
(± 80% VREF)

5

V+ = 5.0 V

+

-

Voltage
Reference

+

-

+

-

Common Mode = 0 to V+

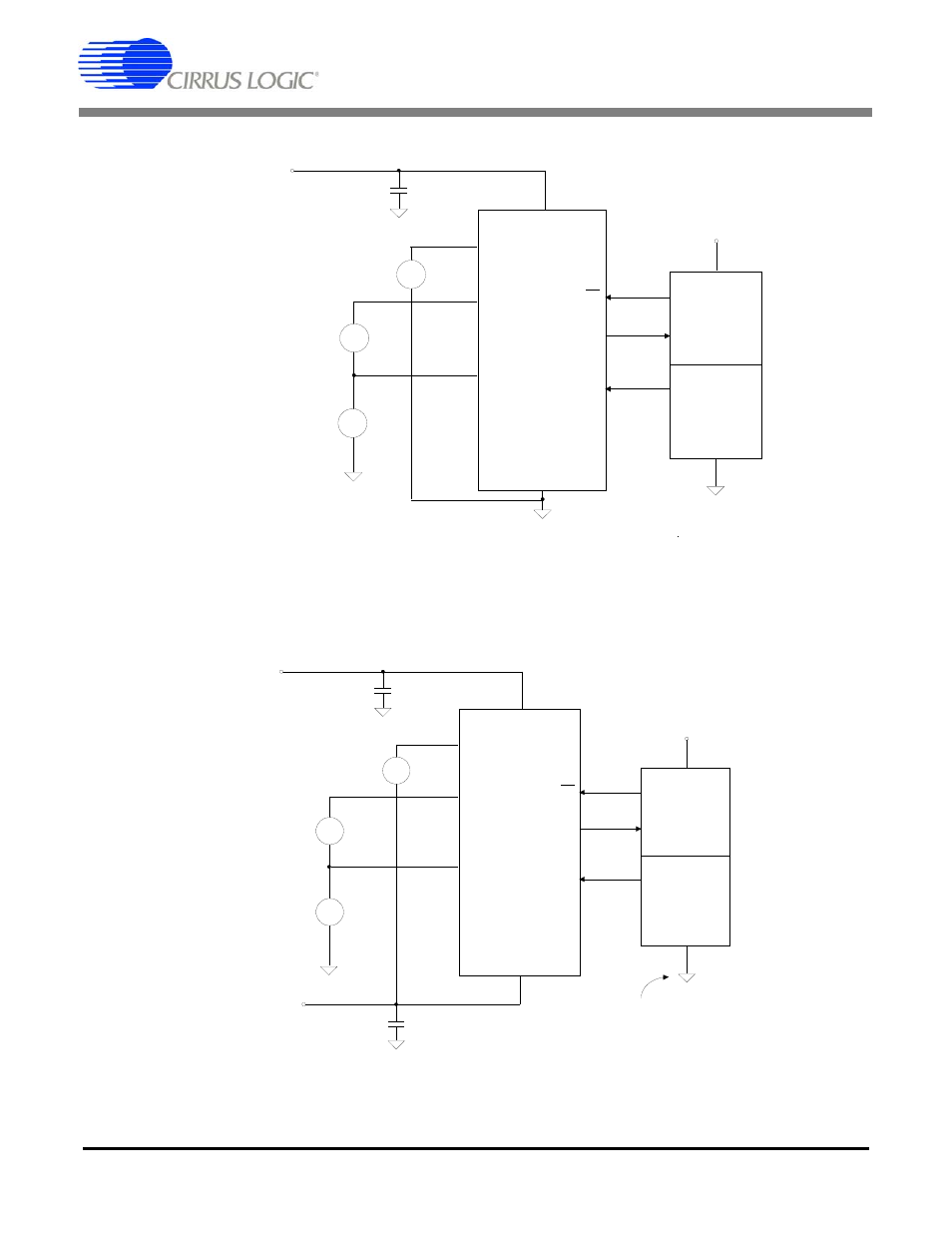

Figure 6. CS5510/11/12/13 Configured with a +5.0 V Analog Supply.

V+

VREF

AIN+

SCLK

SDO

CS5510/11/12/13

CS

+2.5 V

Supply

1

2

6

8

4

Clock Source

Serial

Data

Interface

AIN-

3

V-

7

+

-

0.1

μF

+

-

(Required for

CS5510/12

Applications)

Differential Input
(± 80% VREF)

Common Mode =

V+ to V-

5

-2.5 V

Supply

0.1

μF

Implies the ground return
between the two supplies.

V+ = 2.5 V

+

-

Reference
Voltage

Figure 7. CS5510/11/12/13 Configured with ±2.5 V Analog Supplies.
