2.8.12.6 SNR
Indicator for the signal-to-noise ratio, first 4 harmonics are not included (decibels).
2.8.12.7 Fs-Pdb
Indicator for the full-scale to signal ratio (decibels).
2.8.13 Time Domain Information
The following controls and indicators are associated with Time Domain analysis. Time Domain data can be plotted
in the Data Collection window by setting the Time Domain / FFT / Histogram selector to Time Domain (Figure 15).

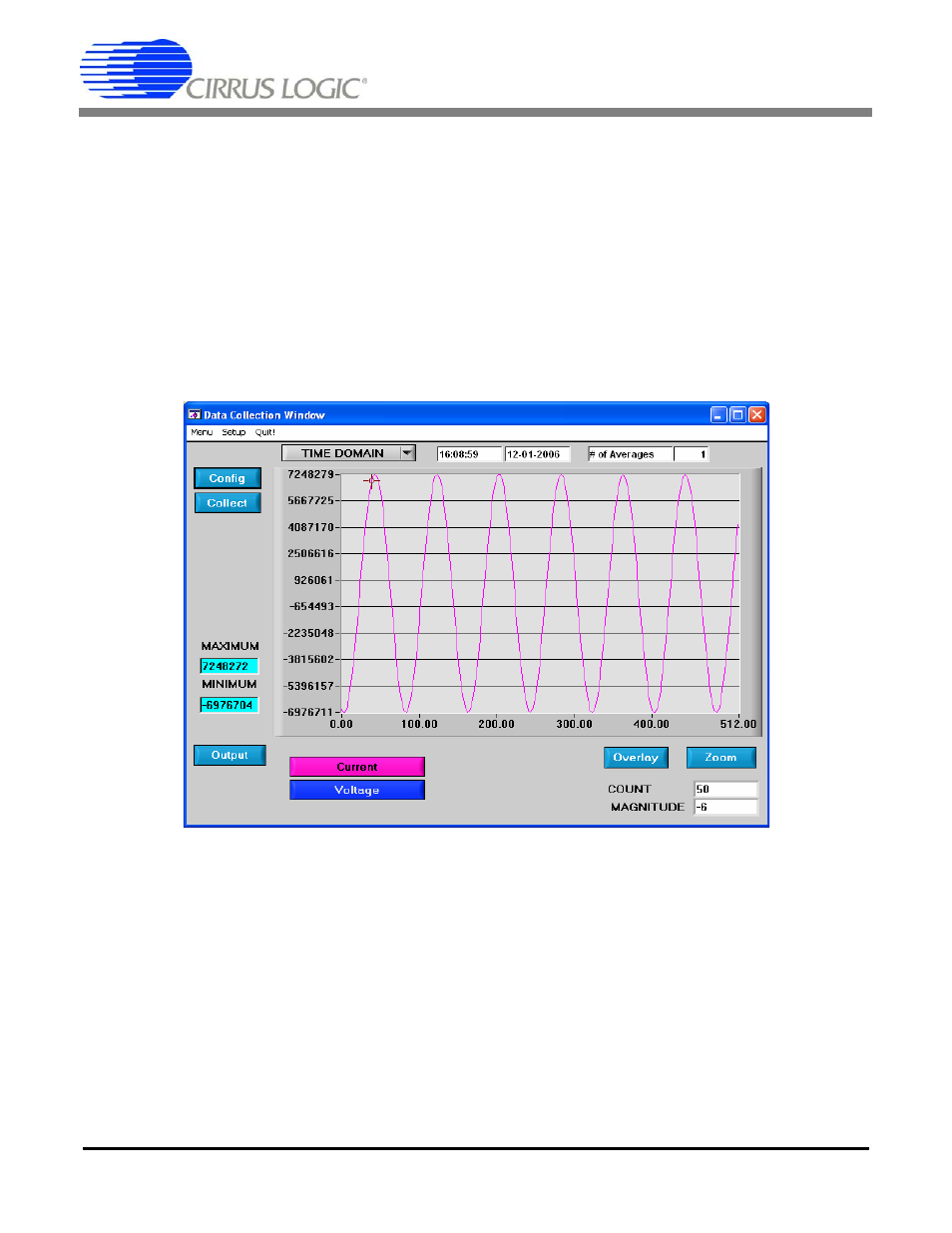

Figure 15. Time Domain Analysis
2.8.13.1 Count
Displays current x-position of the cursor on the time domain display.
2.8.13.2 Magnitude
Displays current y-position of the cursor on the time domain display.
2.8.13.3 Maximum
Indicator for the maximum value of the collected data set.
