2.8.11 Histogram Information
The following is a description of the indicators associated with Histogram analysis. Histograms can be plotted in the
Data Collection window by setting the Time Domain / FFT / Histogram selector to Histogram (Figure 13).

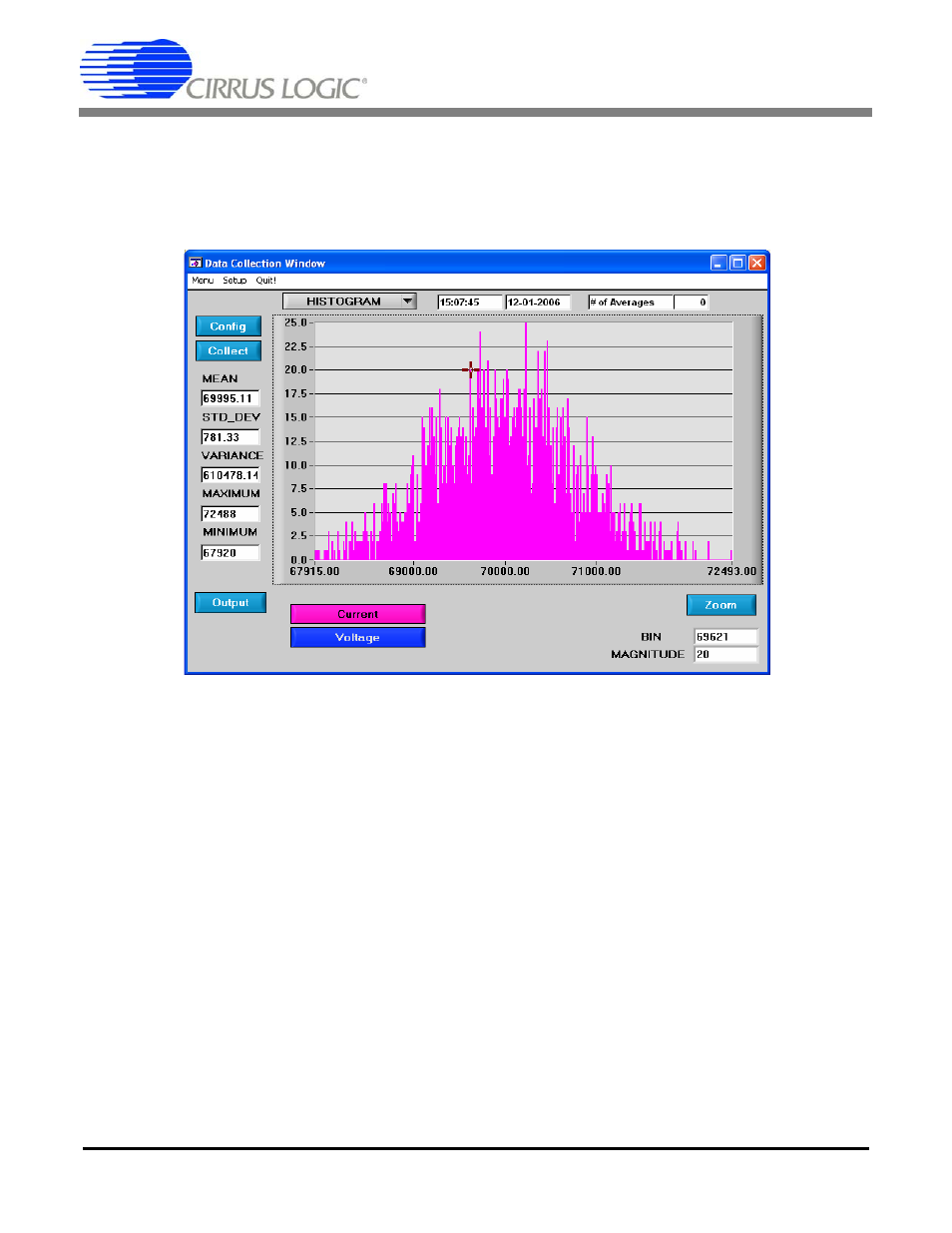

Figure 13. Histogram Analysis
2.8.11.1 Bin
Displays the x-axis value of the cursor on the Histogram.
2.8.11.2 Magnitude
Displays the y-axis value of the cursor on the Histogram.
2.8.11.3 Mean
Indicator for the mean of the data sample set. The mean is calculated using the following formula:
Mean
Xi
i 0 =
n 1 –
∑
n
---------------- =
