CS4953xx Data Sheet
32-bit Audio Decoder DSP Family
DS705F2 25

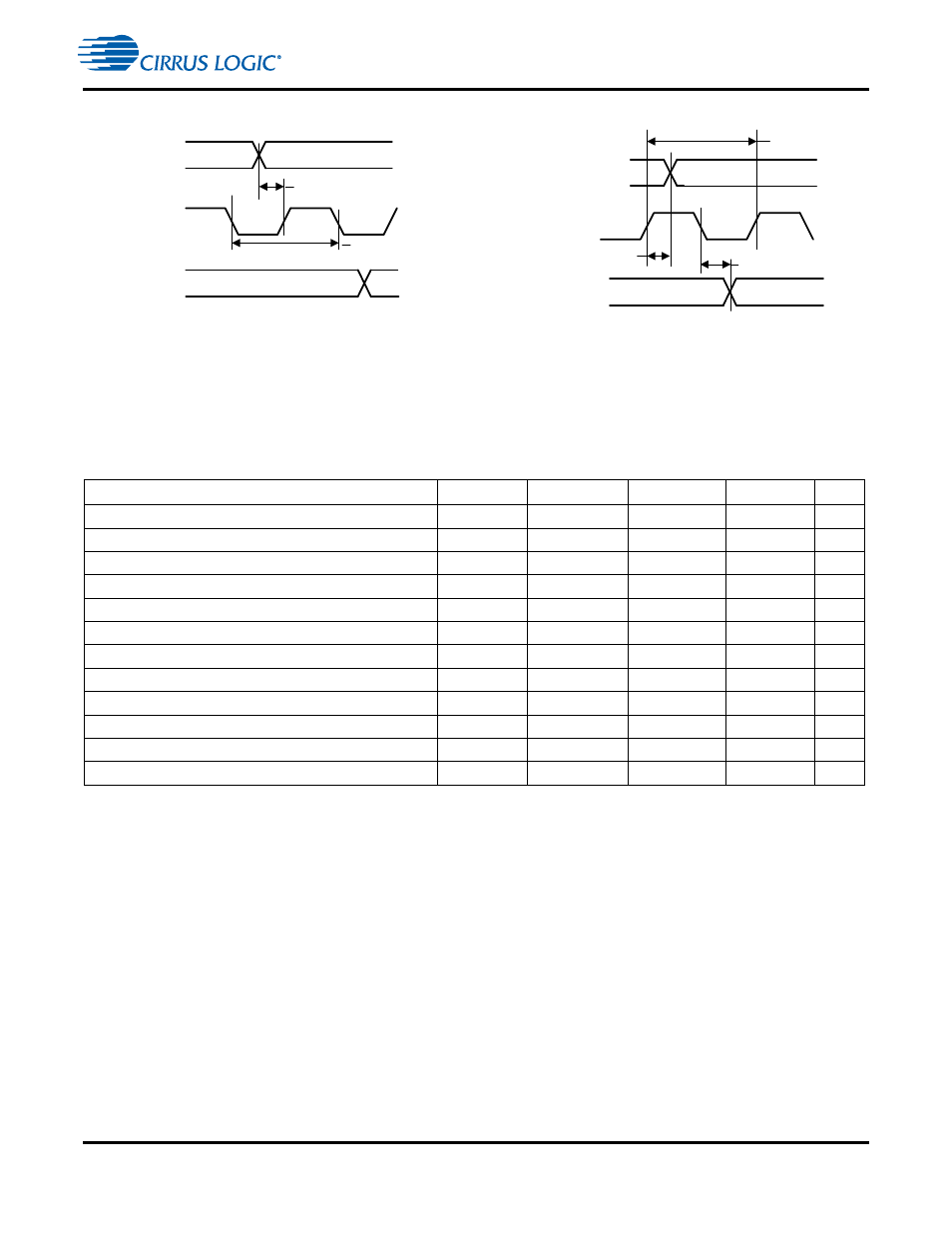

Figure 14. Digital Audio Output Timing, Slave Mode
5.18 Switching Characteristics — SDRAM Interface
Refer to Figure 15 through Figure 18 .
(SD_CLKOUT = SD_CLKIN)
Parameter Symbol Min Typical Max Unit
SD_CLKIN high time t
sdclkh
2.3 — — ns
SD_CLKIN low time t
sdclkl
2.3 — — ns
SD_CLKOUT rise/fall time t
sdclkrf
— — 1 ns
SD_CLKOUT Frequency — — 150 — MHz
SD_CLKOUT duty cycle — 45 — 55 %
SD_CLKOUT rising edge to signal valid t
sdcmdv
— — 3.8 ns
Signal hold from SD_CLKOUT rising edge t
sdcmdh
— 1.1 — ns
SD_CLKOUT rising edge to SD_DQMn valid t
sddqv
— 3.8 — ns
SD_DQMn hold from SD_CLKOUT rising edge t
sddqh
1.38 — — ns
SD_DATA valid setup to SD_CLKIN rising edge t
sddsu
1.3 — — ns
SD_DATA valid hold to SD_CLKIN rising edge t
sddh
2.1 — — ns
SD_CLKOUT rising edge to ADDRn valid t
sdav
— 3.8 — ns
DAO_SCLK
DAO_LRCLK
DAO_Dx
t
daoslrts
t
daosclk
DAO_SCLK
DAO_LRCLK
t
daosstlr t
daosdv
t
daosclk
DAO_Dx
