Copyright © 2012 Cirrus Logic, Inc.

FEB 2012

All Rights Reserved

DS705F2

Audio Decoder DSP Family with

Dual 32-bit DSP Engine Technology

CS4953xx Data Sheet

http://www.cirrus.com

FEATURES

Multi-standard 32-bit Audio Decoding plus Post
processing

Supports legacy audio formats and a wide array of post-
processing

— Dolby Digital

®

EX, Dolby Pro Logic

®

II, IIx, IIz 7.1,

Dolby Headphone

®

2, Dolby Virtual Speaker

®

2,

Dolby

Volume

®

(original), Dolby

Volume 258

(lite),

Audistry

®

— DTS-ES 96/24

Discrete 7.1, DTS-ES

Discrete 7.1,

DTS-ES

Matrix 6.1, DTS Neo:6

®

, DTS Neural

Surround

DTS Surround Sensation Speaker

— MPEG-2 AAC

LC 5.1

— SRS

®

Circle Surround

®

II, SRS Circle Surround Auto,

SRS Circle Surround Decoder Optimized, SRS
TruVolume

7.1 (V 2.1.0.0), SRS TruSurround

HD/HD4

®

,

SRS WOW HD

, SRS CS Headphone

,

SRS Circle Cinema 3D

, SRS Studio Sound HD

— THX

®

Ultra2

, THX Select2

Cirrus Logic’s Applications Library
— Cirrus Original Multi-Channel Surround 2 (COMS2),

Cirrus Band XpandeR

, Cirrus Virtualization

Technology (CVT), Cirrus Intelligent Room Calibration
2 (IRC2), Cirrus Bass Enhancement (CBE)

— Crossbar Mixer, Signal Generator
— Advanced Post-Processors including: 7.1 Bass

Manager Quadruple Crossover, Tone Control, 11-
Band Parametric EQ, Delay, 2:1/4:1 Decimator,
1:2/1:4 Upsampler

Up to 12 Channels of 32-bit Serial Audio Input

16 Ch x 32-bit PCM Out with Dual 192 kHz S/PDIF Tx

Two SPI

/I

2

C

Ports

Customer Software Security Keys

Large On-chip X, Y, and Program RAM & ROM

SDRAM and Serial Flash Memory Support

The CS4953xx DSP family are the enhanced versions of the
CS495xx DSP family with higher overall performance and
lower system cost. The CS4953xx includes all mainstream
audio processing codes in on-chip ROM. This saves external
memory for code storage. In addition, the intensive decoding
tasks of Dolby Digital Surround EX

®

, AAC multi-channel,

DTS-ES 96/24, THX Ultra2 Cinema and Dolby Headphone
can be accomplished without the expense of external
SDRAM memory.

With larger internal memories than the CS495xx, the
CS49531x is designed to support up to 150 ms per channel
of lip-sync delay. With 150 MHz internal clock speed, the
CS4953xx supports the most demanding post-processing
requirements. It is also designed for easy upgrading.
Customers currently using the CS495xx can upgrade to the
CS4953xx with minor hardware and software changes.

Ordering Information

See

page 28

for ordering information.

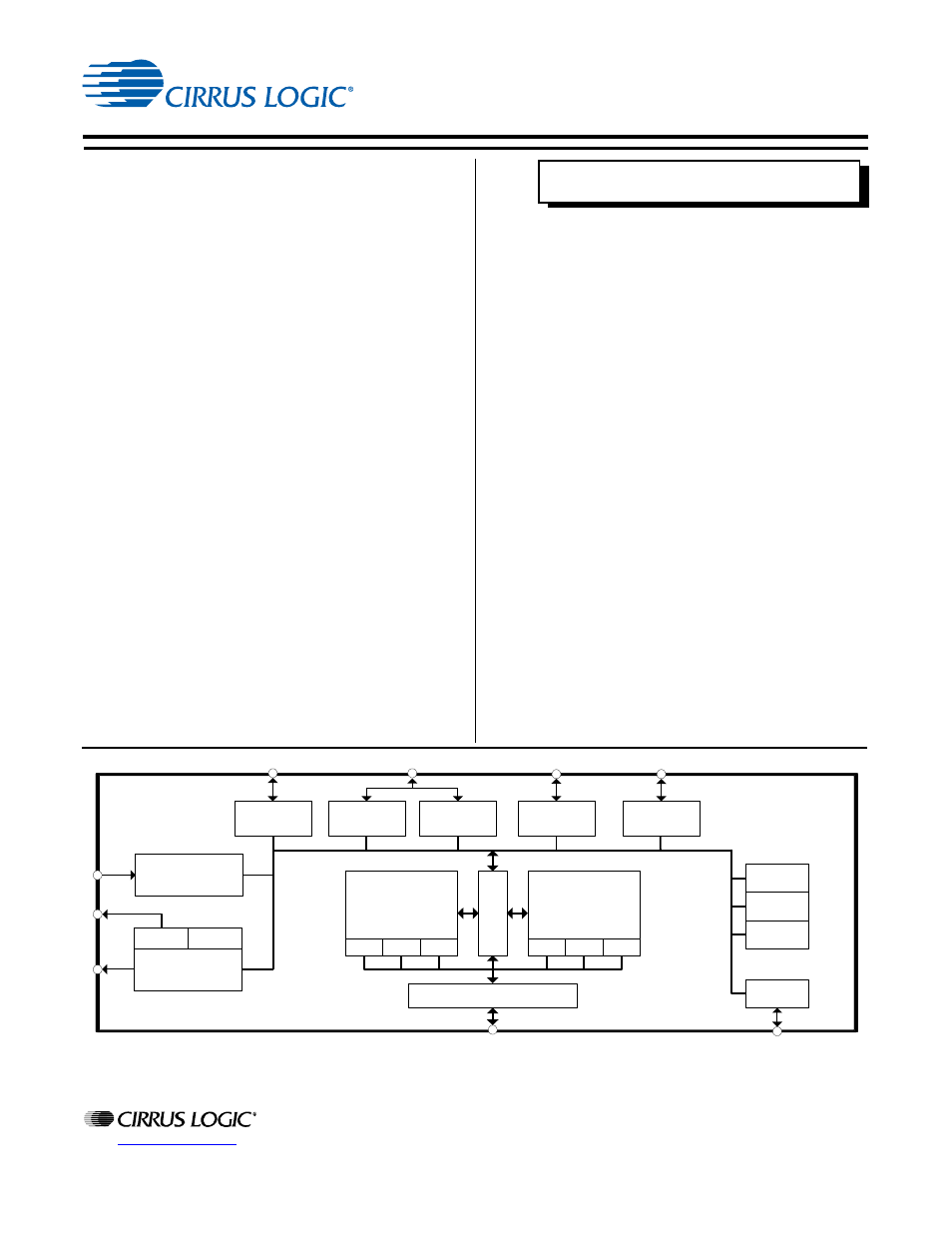

Coyote 32-bit

DSP A

D

M

A

Coyote 32-bit

DSP B

Ext. Memory Controller

P

S/PDIF

X

Y

P

X

Y

Serial

Control 1

16 Ch PCM

Audio Out

Serial

Control 2

Parallel

Control

GPIO

Debug

STC

TMR1

TMR2

PLL

S/PDIF

12 Ch PCM

Audio In
