22

DS691F2

CS4350

4.8

Analog Output and Filtering

The Cirrus Application Note titled Design Notes for a 2-Pole Filter with Differential Input, available as AN48
at

www.cirrus.com

, discusses the second-order Butterworth filter and differential-to-single-ended converter

that was implemented on the CS4350 evaluation board, CDB4350.

Figure 17

illustrates this

implementation. If only single-ended outputs from the CS4350 are required, the passive output filter shown
in

Figure 18

can be used.

4.9

Grounding and Power Supply Arrangements

As with any high-resolution converter, the CS4350 requires careful attention to power supply and grounding
arrangements if its potential performance is to be realized.

Figure 10

shows the recommended power ar-

rangements, with VA, VLC, and VLS connected to clean supplies. The use of split analog and digital ground
planes is not recommended. However, if planes are split between digital ground and analog ground the
GND pins of the CS4350 should be connected to the analog ground plane.

All signals, especially clocks, should be kept away from the VBIAS, VFILT, and VQ pins in order to avoid
unwanted coupling into the DAC.

4.9.1

Capacitor Placement

Decoupling capacitors should be placed as close to the DAC as possible, with the low value ceramic ca-
pacitor being the closest. To further minimize impedance, these capacitors should be located on the same
layer as the DAC. If desired, all supply pins may be connected to the same supply, but a decoupling ca-
pacitor should still be placed on each supply pin.

Note:

All decoupling capacitors should be referenced to GND.

The CDB4350 evaluation board demonstrates the optimum layout and power supply arrangements.

AOUTx +

AOUTx -

-

+

1000 pF

C0G

562

22

F

4.02 k

5600 pF

C0G

221

392

4.64 k

1.62 k

1.37 k

22

F

2700 pF

C0G

.015

F

C0G

47 k

CS4350

GND

Analog

Output

* See section 4.9 for ground connection details

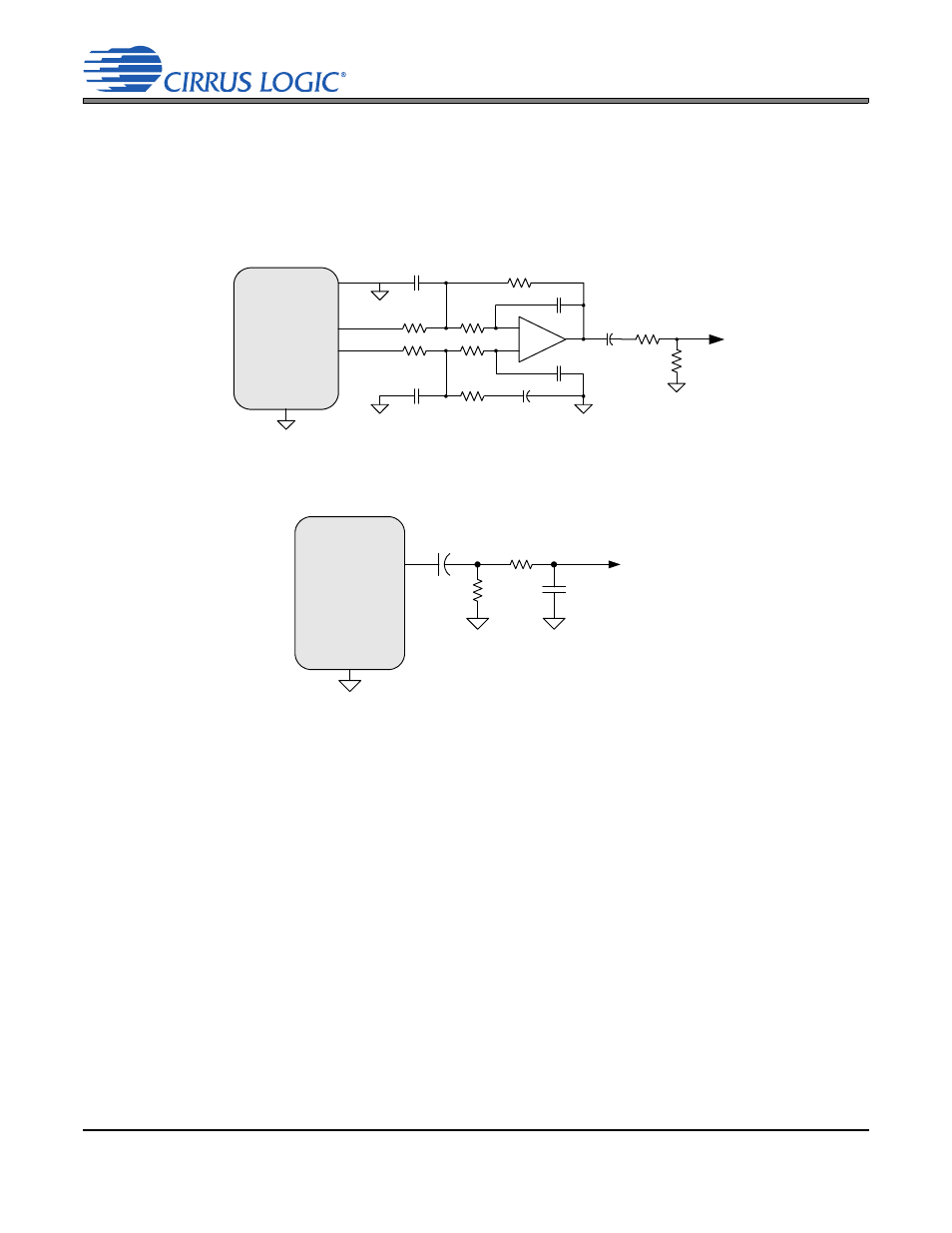

Figure 17. Differential to Single-Ended Output Filter

AOUTx +

3.3 µF

Analog
Output

2200 pF

+

10 k

CS4350

GND

560

* See section 4.9 for ground connection details

Figure 18. Passive Single-Ended Output Filter
