2. PIN DESCRIPTION
CS P FC Current S ens e
IFB Link V oltage S ense
ZCD P FC Zero-current Detect
GND Ground
GD P FC Gate Driver
V DD IC S upply V oltage
S TBY S tandby
IAC Rectifier V oltage S ense
4
3
2
1
5
6
7
8
8-lead S OIC

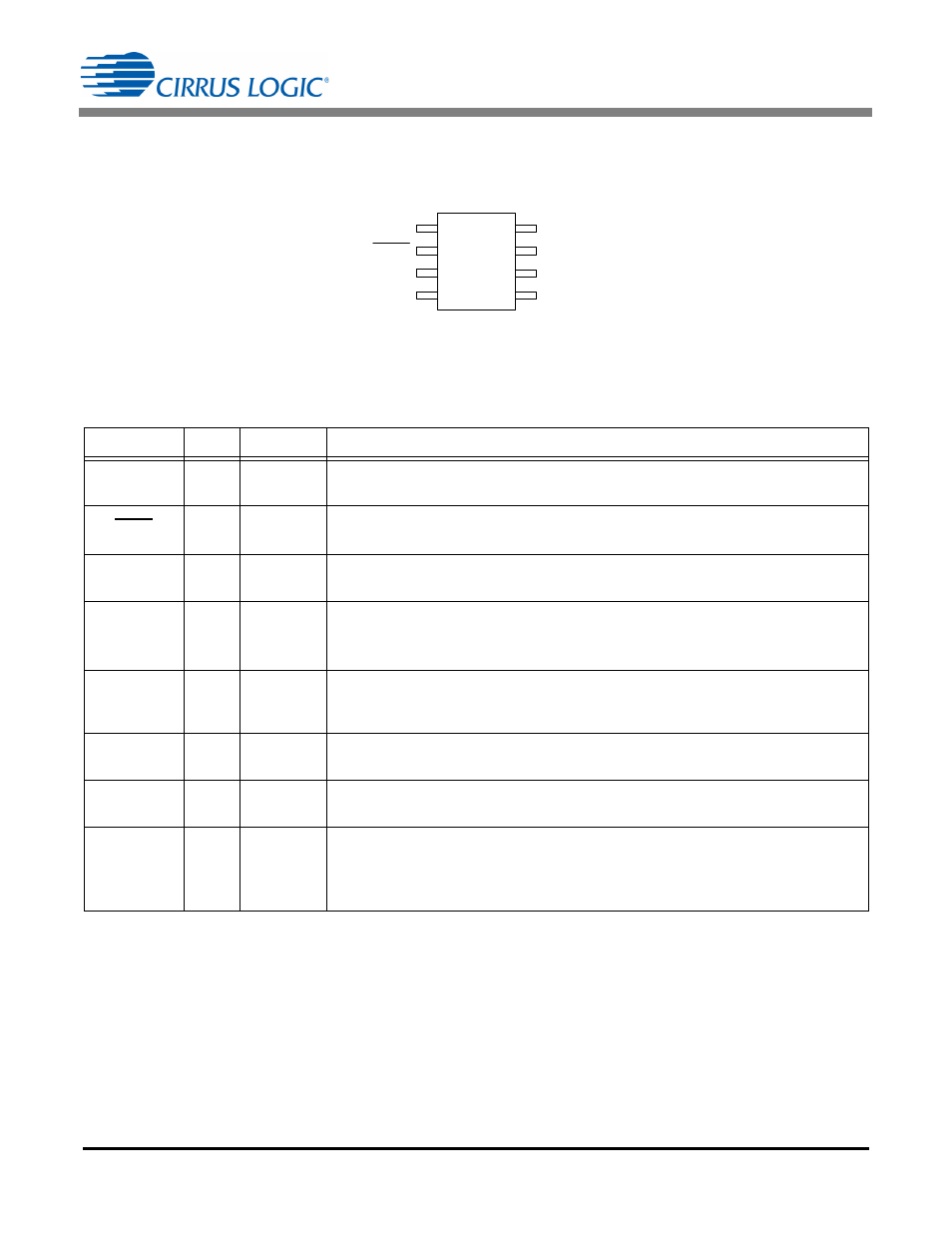

Figure 2. CS1601 Pin Assignments
Pin Name Pin # I/O Description
IFB 1 IN
Link Voltage Sense — A current proportional to the output link voltage of the PFC is
input here. The current is measured with an ADC.
STBY 2 IN
Standby — A voltage below 0.8V puts the IC into a non-operating, low-power state.
The input has an internal 600k
 pull-up resistor to the V
DD
pin.
IAC 3 IN
Rectifier Voltage Sense — A current proportional to the rectified line voltage is input
here. The current is measured with an ADC.
CS 4 IN
PFC Current Sense — The current flowing in the PFC MOSFET is sensed through a
resistor. The resulting voltage is applied to this pin and digitized for use by the PFC
computational logic to limit the maximum current through the power FET.
ZCD 5 IN
PFC Zero-current Detect — Boost Inductor demagnetization sensing input for zero-
current detection (ZCD) information. The pin is externally connected to the PFC boost
inductor auxiliary winding through an external resistor divider.
GND 6 PWR
Ground — Common reference. Current return for both the input signal portion of the IC
and the gate driver.
GD 7 OUT
PFC Gate Driver — The totem pole stage is able to drive the power MOSFET with a
peak current of 0.5A source and 1.0A sink.
V
DD
8 PWR
IC Supply Voltage — Supply voltage of both the input signal portion of the IC and the
gate driver. A storage capacitor is connected on this pin to serve as a reservoir for oper-
ating current for the device, including the gate drive current to the power transistor. This
pin is clamped to a maximum voltage (V
z
) by an internal zener function.
