6. PACKAGE DRAWING
MILLIMETERS INCHES
Dimension MIN NOM MAX MIN NOM MAX
A - - - - 1.75 - - - - 0.069
A1 0.10 - - 0.25 0.004 - - 0.010
b 0.31 - - 0.51 0.012 - - 0.020
c 0.10 - - 0.25 0.004 - - 0.010
D 4.90 BSC 0.193 BSC
E 6.00 BSC 0.236 BSC
E1 3.90 BSC 0.154 BSC
e 1.27 BSC 0.050 BSC
L 0.40 - - 1.27 0.016 - - 0.050
Θ 0° - - 8° 0° - - 8°
aaa 0.10 0.004
bbb 0.25 0.010
ddd 0.25 0.010
Notes:
1. Controlling dimensions are in millimeters
2. Dimensions and Tolerances per ASME Y14.5M
3. This drawing conforms to JEDEC outline MS-012, variation AA for standard SOIC-8 narrow body
4. Recommended reflow profile is per JEDEC/IPC J-STD-020

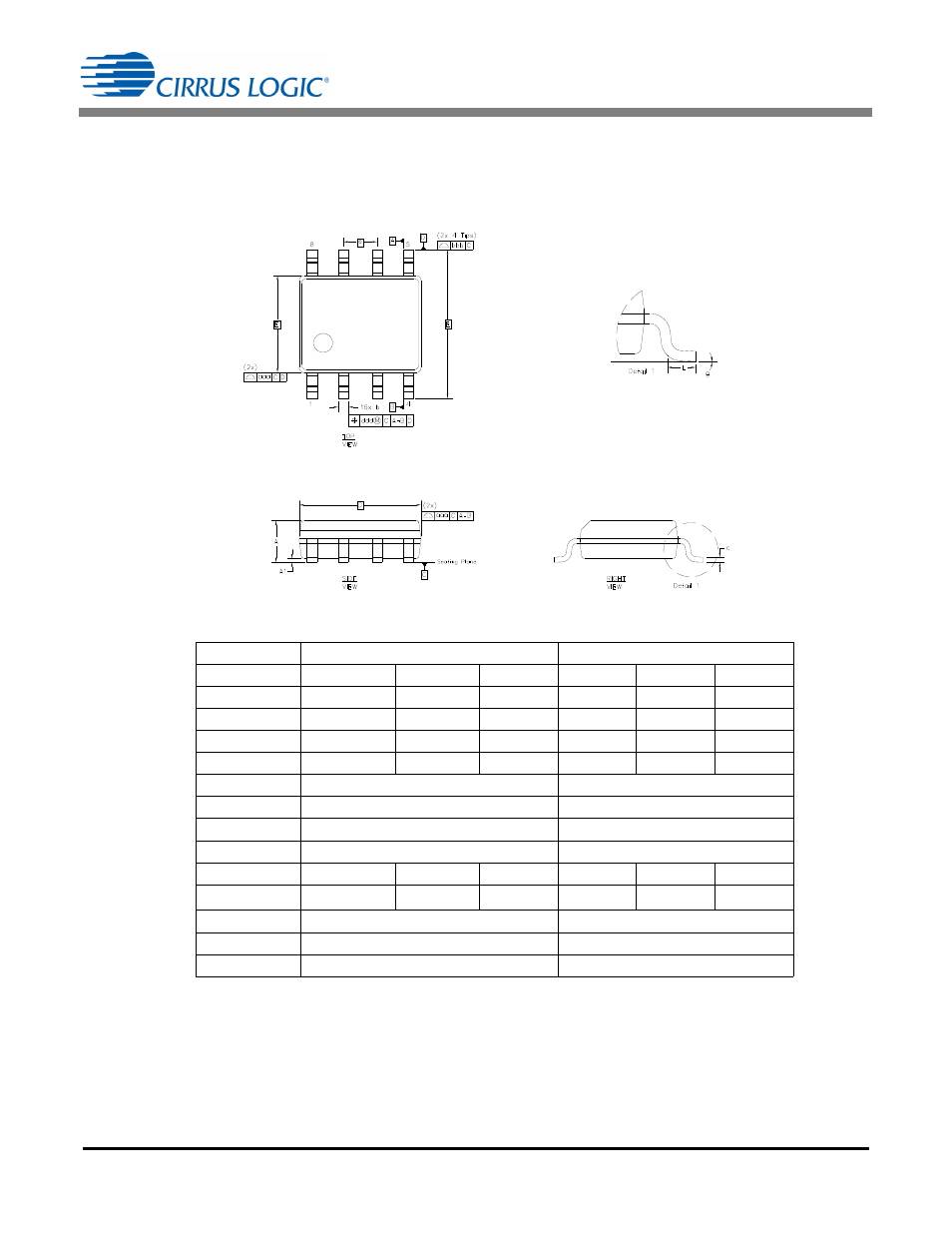

SOIC-8 NARROW (150 MIL BODY) PACKAGE DRAWING
