Operating Instructions Temperature Indicating Controller CS4H / CS4L
V1.1 • 05/2006 - 27 -

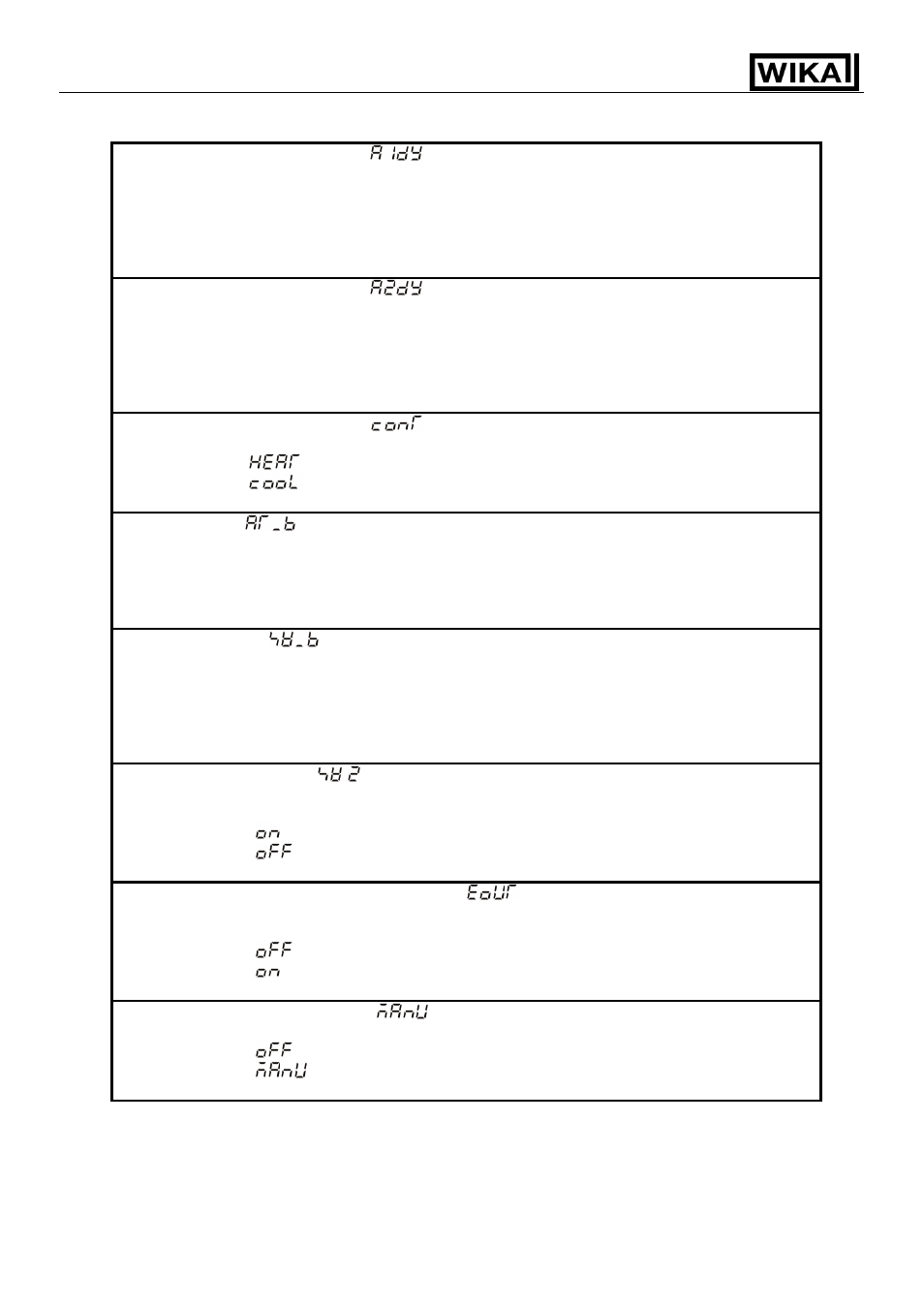

A1 action delayed timer setting [ ]
• Sets the action delayed timer for A1.
When setting time has passed after the input enters the alarm output range, the alarm is acti-
vated.
• Not available if No alarm action is selected in the A1 action selection
• Setting range: 0 … 9999 seconds
• Default: 0 seconds
A2 action delayed timer setting [
]
• Sets the action delayed timer for A2.
When setting time has passed after the input enters the alarm output range, the alarm is acti-
vated.
• Not available if No alarm action is selected in the A2 action selection or if option [2AS] or [2AL] is
not applied
• Setting range and default value are the same as those of A1 action delayed timer setting.
Direct/Reverse action selection [
]
• Selects Reverse (Heating) or Direct (Cooling) action.
• Selection item:
(Reverse)
(Direct)
• Default: Reverse (Heating)
AT bias setting [
]
• Sets the bias value when PID auto-tuning is performing.
• Not available for the DC input
• Setting range: 0 … 50 °C (0 … 100 °F)
With a decimal point, 0.0 … 50.0 °C (0.0 … 100.0 °F)
• Default: 20 °C
SVTC bias setting [
]
• Control desired value adds SVTC bias value to the value received by the SVTC command.
• Available only when the serial interface (option) is added
• Setting range: Converted value of ±20 % of the rated value or ±20 % of the scaling span (DC
input) (the placement of the decimal point follows the selection.)
However, the negative minimum value is –1999, –199.9, –19.99 or –1.999.
• Default: 0
SV2 indication selection [
]
• Selects whether SV2 is indicated or not.
• Available only when serial interface (option) is added
• Selection item:
(Indication)
(No indication)
• Default: Indication
Output status selection when input burnout [
]
• Selects output status when input is burnt out.
Available only for control output analogue current signal (4 ... 20 mA) with DC inputs
• Selection item:
(Output OFF)
(Output ON)
• Default: Output OFF
OUT/OFF key function selection [
]
• Selects the OUT /
OFF
key function.
• Selection item: (OUT/OFF function)
(Auto/Manual control function)
• Default: OUT/OFF function
