Operating Instructions Temperature Indicating Controller CS4H / CS4L

V1.1

05/2006

- 11 -

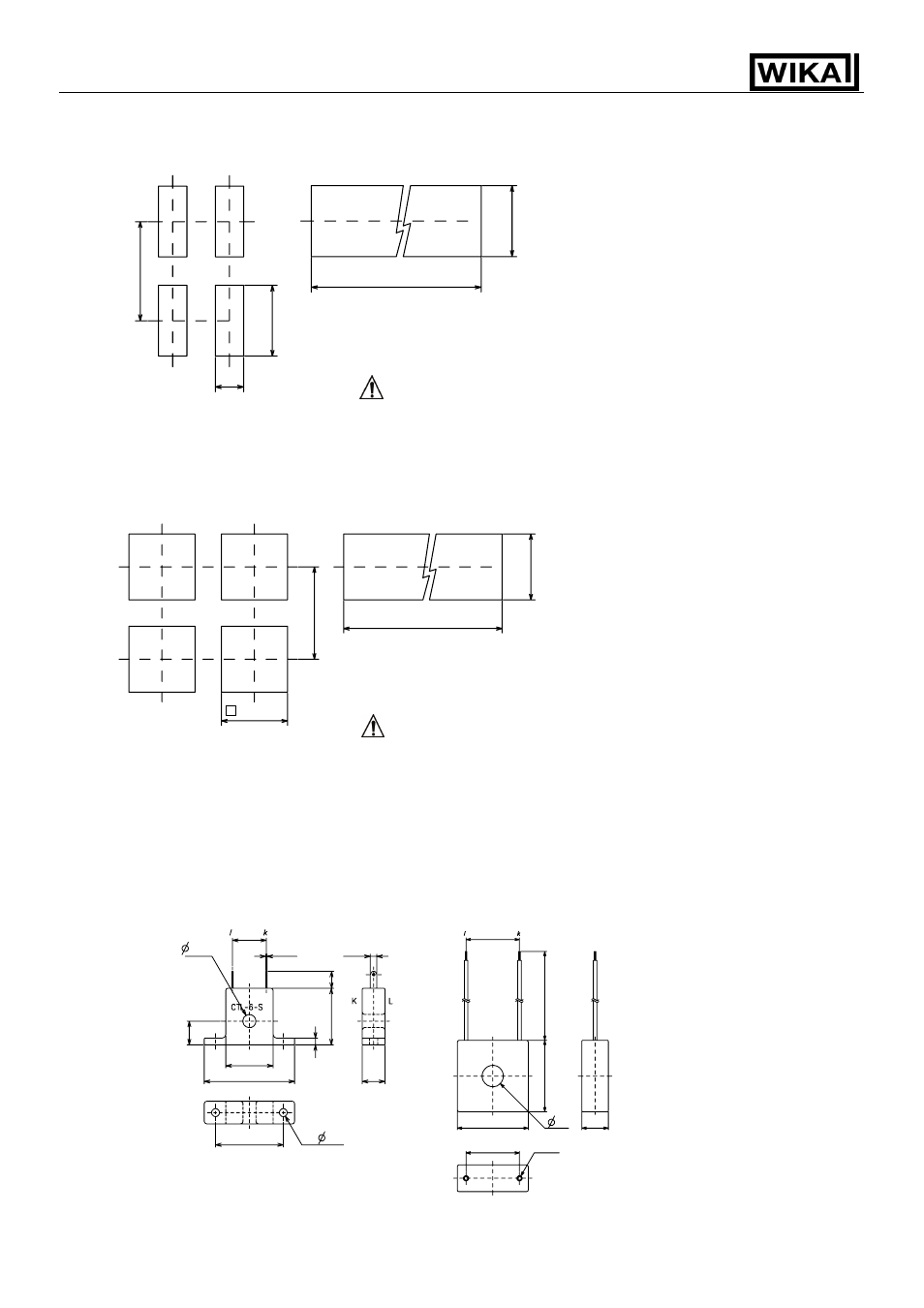

3.3 Panel cutout

CS4H







Lateral close mounting, n: Number of units mounted

Caution: When lateral close mounting is used for the controller,

IP66 specification is not fulfilled.

(Fig. 3.3-1)


CS4L







Lateral close mounting, n: Number of units mounted

Caution: When lateral close mounting is used used for for the

controller, IP66 specification is not fulfilled.

(Fig. 3.3-2)



3.4 CT (Current transformer) external dimension

CTL-6S (for 5A, 10A, 20A)

CTL-12-S36-10L1 (for 50A)














(Fig. 3.4-1)

130

92

+0

.8 0

45

+0.5

0

n x 48-3

+0.5

0

92

+0

.8 0

15

0.5

7.5

2.8

10

25

3

40

21

30

2- 3.5

10.5

5.8

30

100

40

15

40

30

12

2-M3

92

+ 0.8

0

130

92

+0.8

0

nЧ96-3

0.5

0
