6. Commissioning, operation

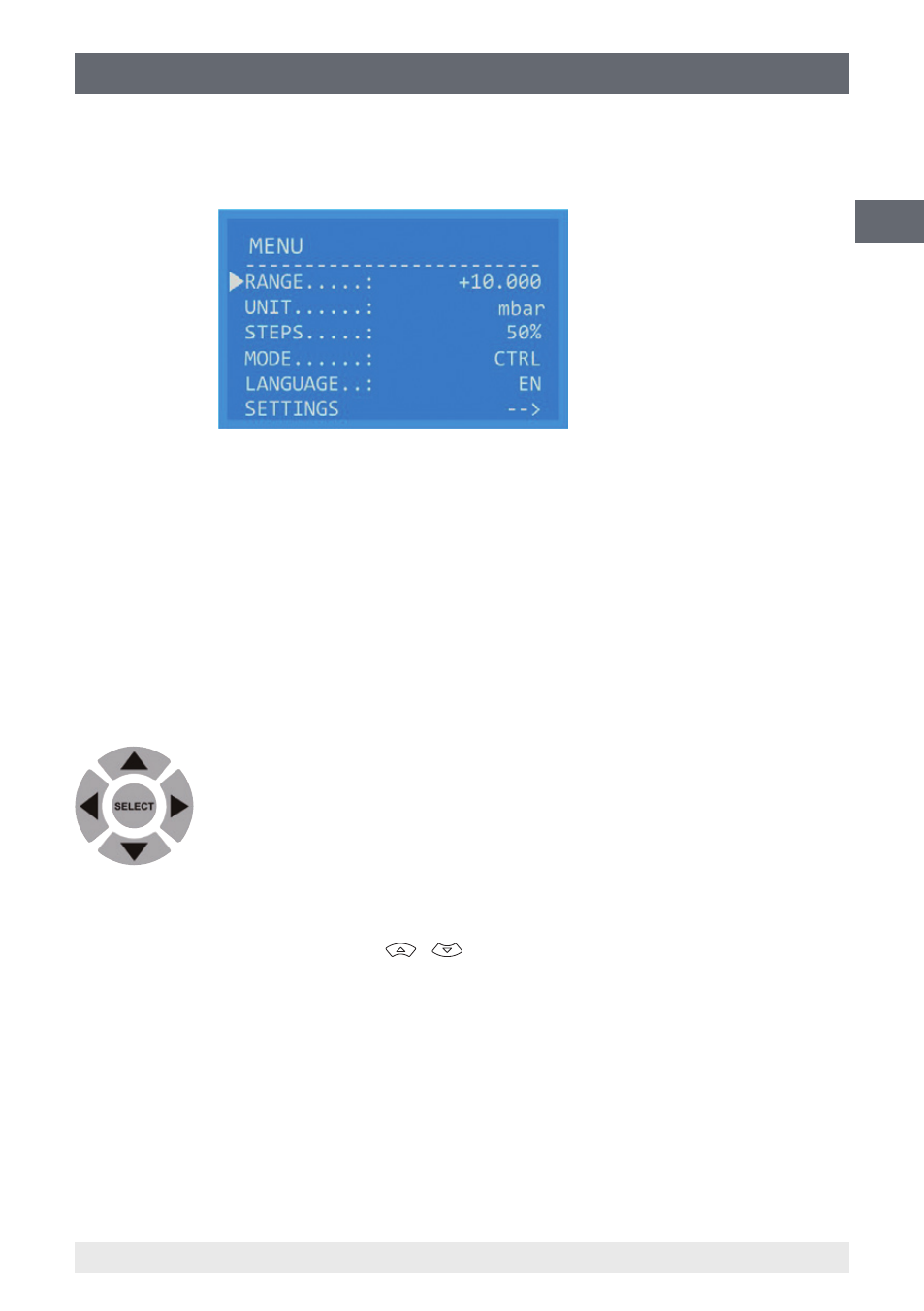

6.5 SETUP settings (SETUP)

The SETUP menu items are made up of six submenus.

■

RANGE: Setting of the pressure range (max. 100 % of the measuring span)

■

UNIT: Selection of the pressure unit (Pa, kPa, hPa, bar, mbar, psi, inH

O, inHg, mmHg,

Torr)

■

STEPS: Setting of the step size in x %. Settable in the range 1 ... 50 %

■

MODE: Selection of the operating mode

■

Control (CTRL): Regulates to the given set point

■

Measure (MEAS): Measurement of differential and relative pressure

■

Automatic (AUTO): Carries out a stored test routine

■

LANGUAGE: Selection of the displayed language

■

SETTINGS: Here additional instrument settings can be made

Navigation within the menu:

SELECT: Acts to confirm the relevant setting

Left/Right arrow: Setting of the active decimal point

Up/Down arrow: Change between the different submenu points.

6.5.1 The menu points

With the MENU button and with the

button, press the up and down until one is

at the required menu point. With the SELECT button, one reaches the desired submenu.

The following items are available in the submenu:

6.5.1.1 Range

Under the RANGE menu point the controller‘s final control value can be changed for the

control.
