6. Commissioning, operation

6.3 Operating mode 'AUTO'

In AUTO mode, a pressure profile can be stored. This is especially useful when multiple

pressure sensors or pressure switches are to be calibrated with the same values. The

mode also enables a defined profile to be traversed several times in succession.

Setting

■

Press the MENU button. Confirm the menu item MODE with the SELECT button and

press the

button until AUTO appears. Confirm with SELECT.

■

For the AUTO mode, the submenu points RANGE, UNIT and STEPS are not relevant.

■

Go to the SETTINGS menu item with the

buttons and confirm with the

SELECT button. The submenu item zero point adjustment is not relevant.

■

In the submenu, go to the AUTO mode item with the UP/DOWN buttons and confirm

with SELECT.

■

RANGE: Pressure range that will be covered

■

UNIT: Pressure unit

■

STEPS: The number of steps which will be taken to increase and decrease the

pressure. These increments are calculated by the controller itself.

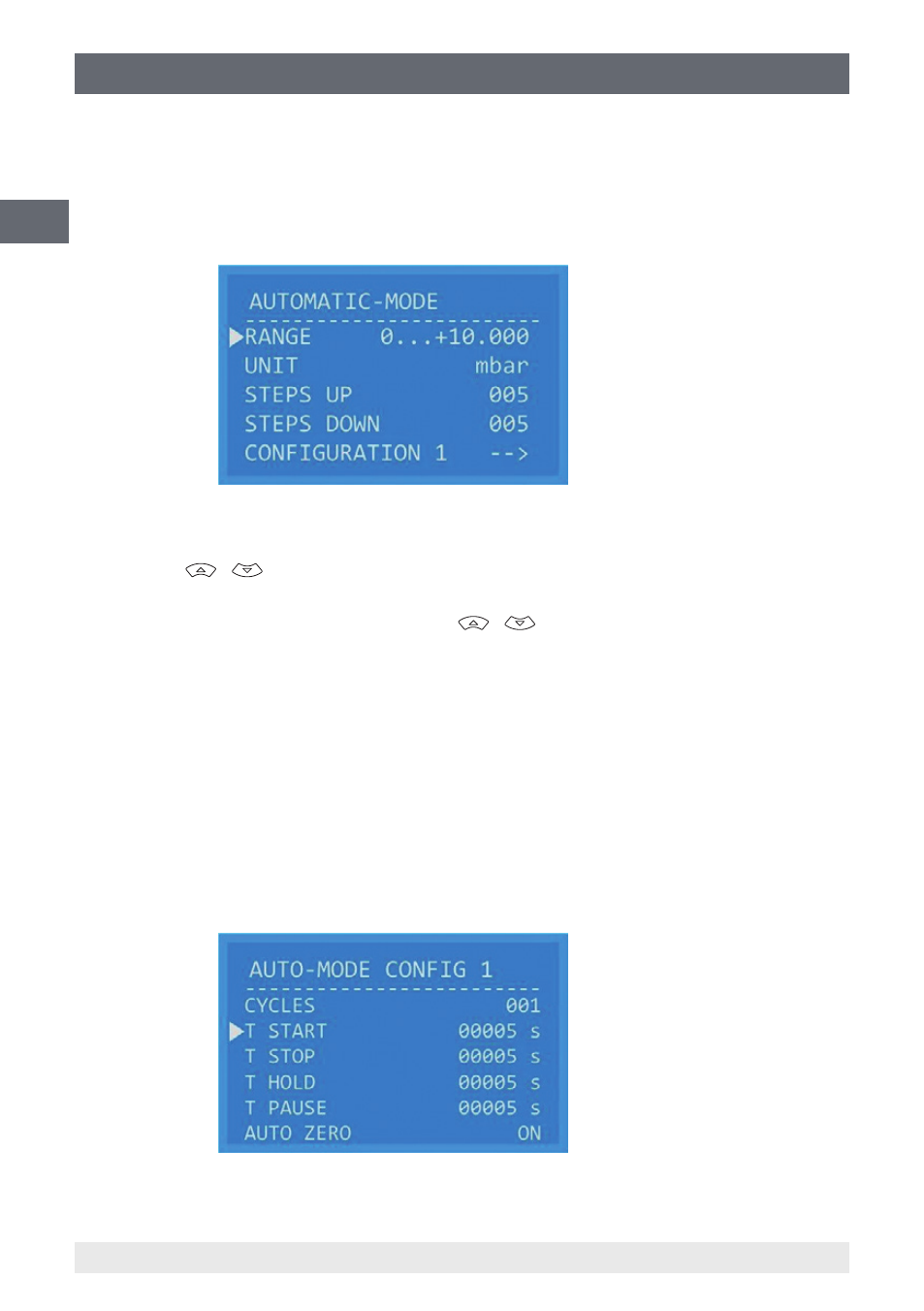

In the submenu point, CONFIGURATION 1, further settings can be defined for the AUTO

mode.
