WIKA operating instructions model TGT73
6. Commissioning, operation
If this is not possible, the following limit values must not be exceeded:
Dry gauges:
Frequency range < 150 Hz
Acceleration < 0.7 g (7 m/s
2
)
Liquid-filled gauges: Frequency range < 150 Hz
Acceleration < 2 g (20 m/s
2
)
The liquid filling must be checked on a regular basis.
The liquid level must not drop below 75 % of the gauge diameter.
Heavy shocks, oscillations and vibrations lead to imprecise values,
increased wear in the movement, and fractures on welded or soldered
joints.
When mounting a gas-actuated thermometer that can be rotated
and swivelled, the specific instructions must be followed. In order to
set the indicator to the desired position, the following steps must be
taken:
1. The lock nut or union nut must be loosened at the process
connection.
2. The hexagon bolts and slotted screws at the swivel joint must be
loosened.

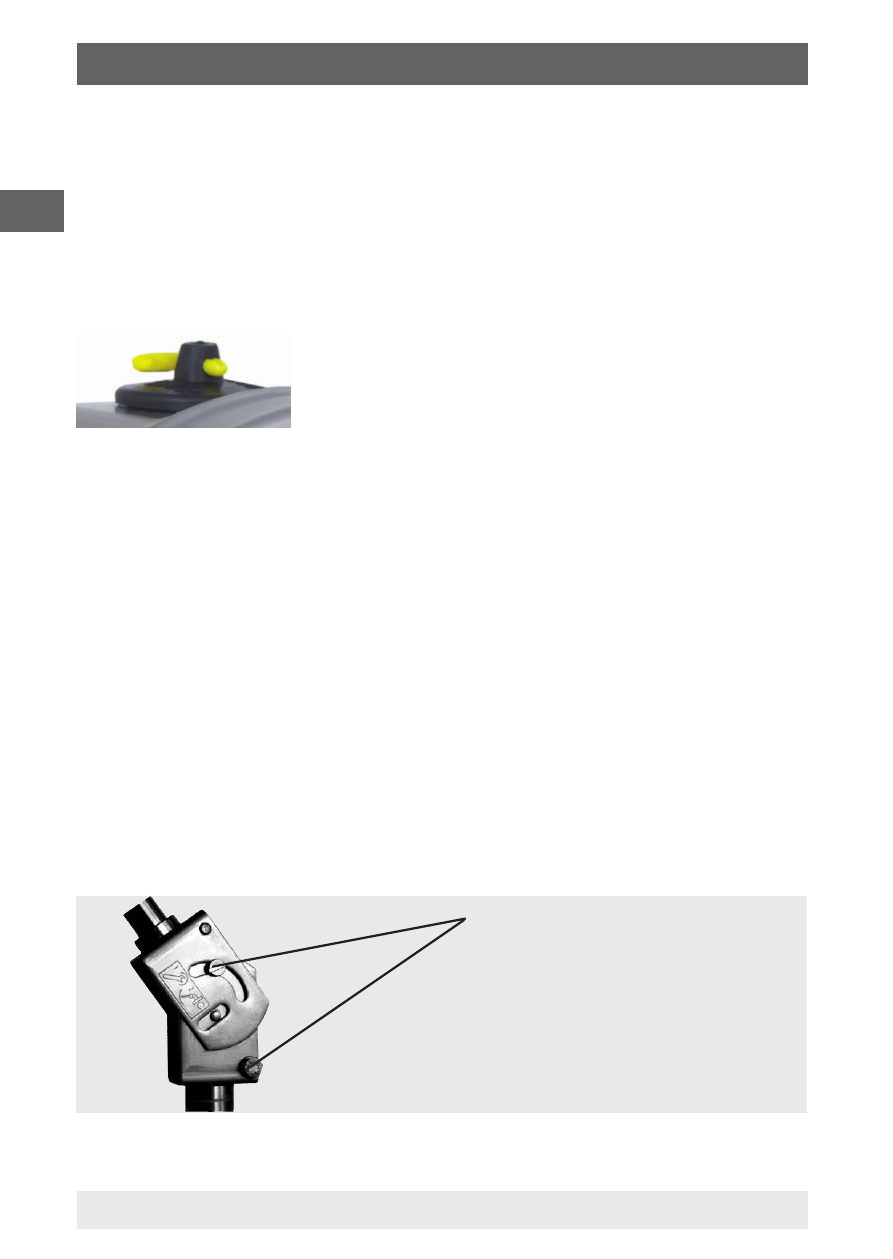

After mounting, set the compensating valve (if
available) from CLOSE to OPEN.
loosening
Make sure the screws on the
opposite side are loosened
as well!
