20 WIKA operating instructions pressure transmitter, model S-11
GB
14043046.01 06/2012 GB/D/F/E
6. Commissioning, operation

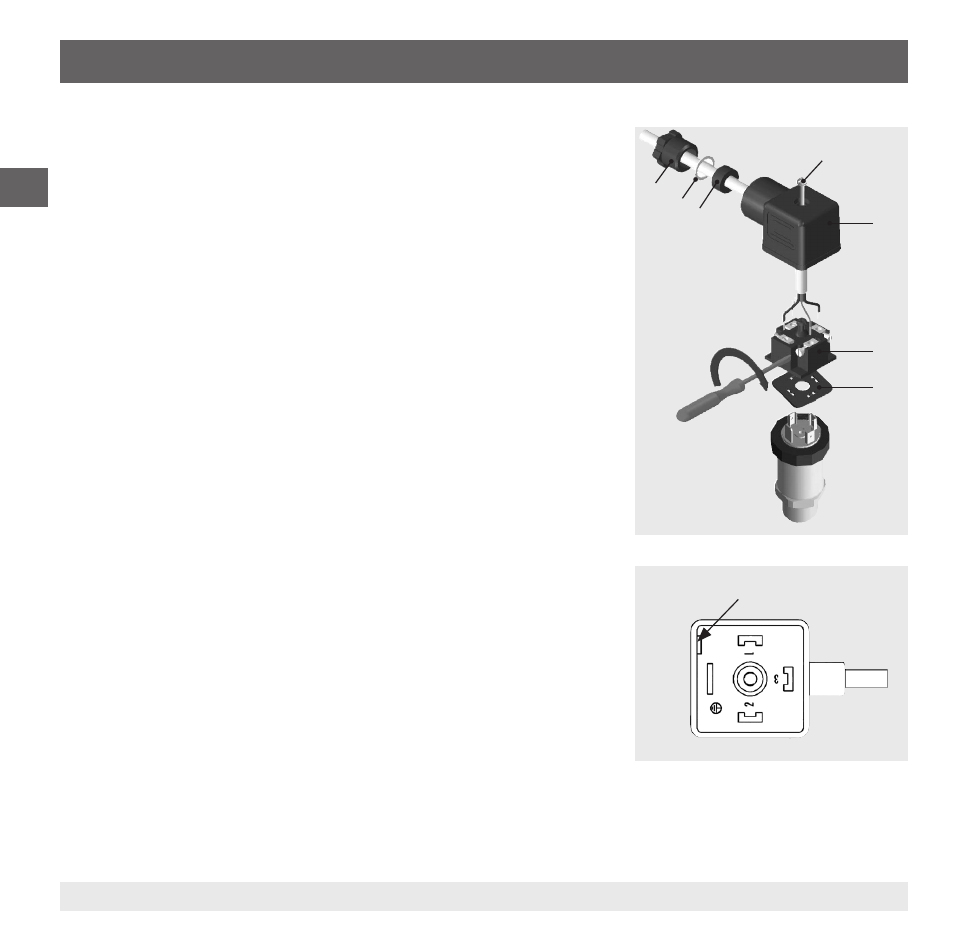

Fitting a DIN 175301-803 angular connector
1. Loosen the screw  .
2. Loosen the cable gland  .
3. Pull the angled socket  +  from the instrument.
4. Via the mounting hole  , lever the terminal block  out of the
case  .
5. Pass the cable with the appropriate cable outer diameter (see
"Connection diagrams") through the cable gland  , ring  ,
sealing  and the case  .
6. Connect the cable ends to the connection terminals on the
terminal block  in accordance with the pin assignment (see
"Connection diagrams" for the pin assignment).
7. Press the terminal block  into the case  .
8. 8. Tighten the cable gland  around the cable. Make sure that
the cable gland and seal are not damaged and that they are
assembled correctly in order to ensure ingress protection.
9. Place the flat, square gasket  over the pressure transmitter's
connection pins.
10. Slide the assembled angled socket  +  onto the pressure
transmitter's connection pins.
11. Using the screw  , screw the angled socket to the pressure
transmitter, hand-tight.

Mounting hole







