The TP-125-od / TP-126-od Transmitter / Receiver Set
28
4. Connect the 12V DC power supply to the power socket and connect the
adapter to the mains electricity on both the TP-125-od and the
TP-126-od.
5. If
required,
on
the
TP-126-od adjust the video output signal level and/or
cable compensation equalization level with a screwdriver.

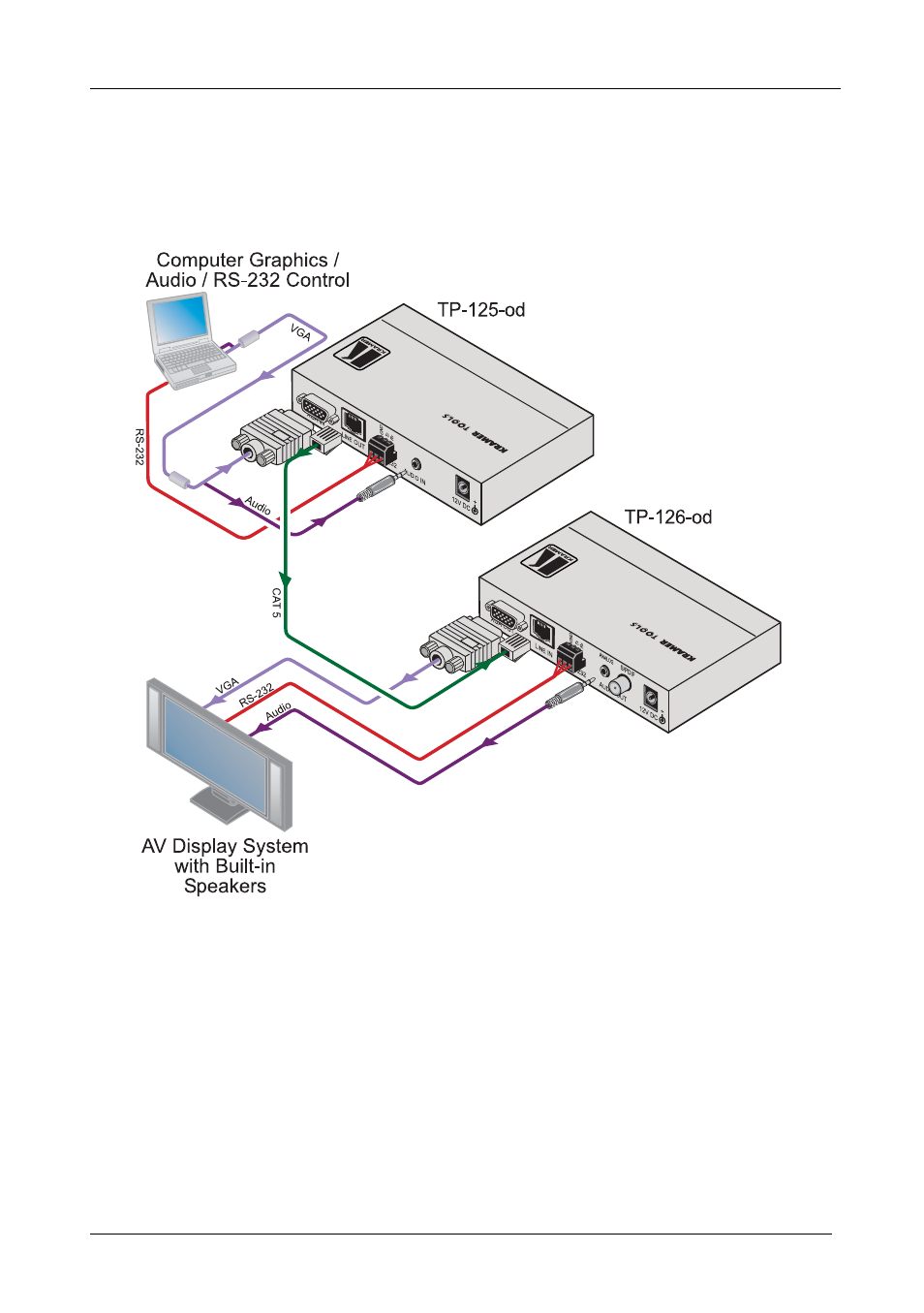

Figure 13: Connecting the TP-125-od and the TP-126-od
