The TP-123-od / TP-124-od Transmitter / Receiver Set
19
6.2 Your TP-124-od XGA / Audio Line Receiver
Figure 8 and Table 8 define the TP-124-od XGA / Audio / Data Line
Receiver:

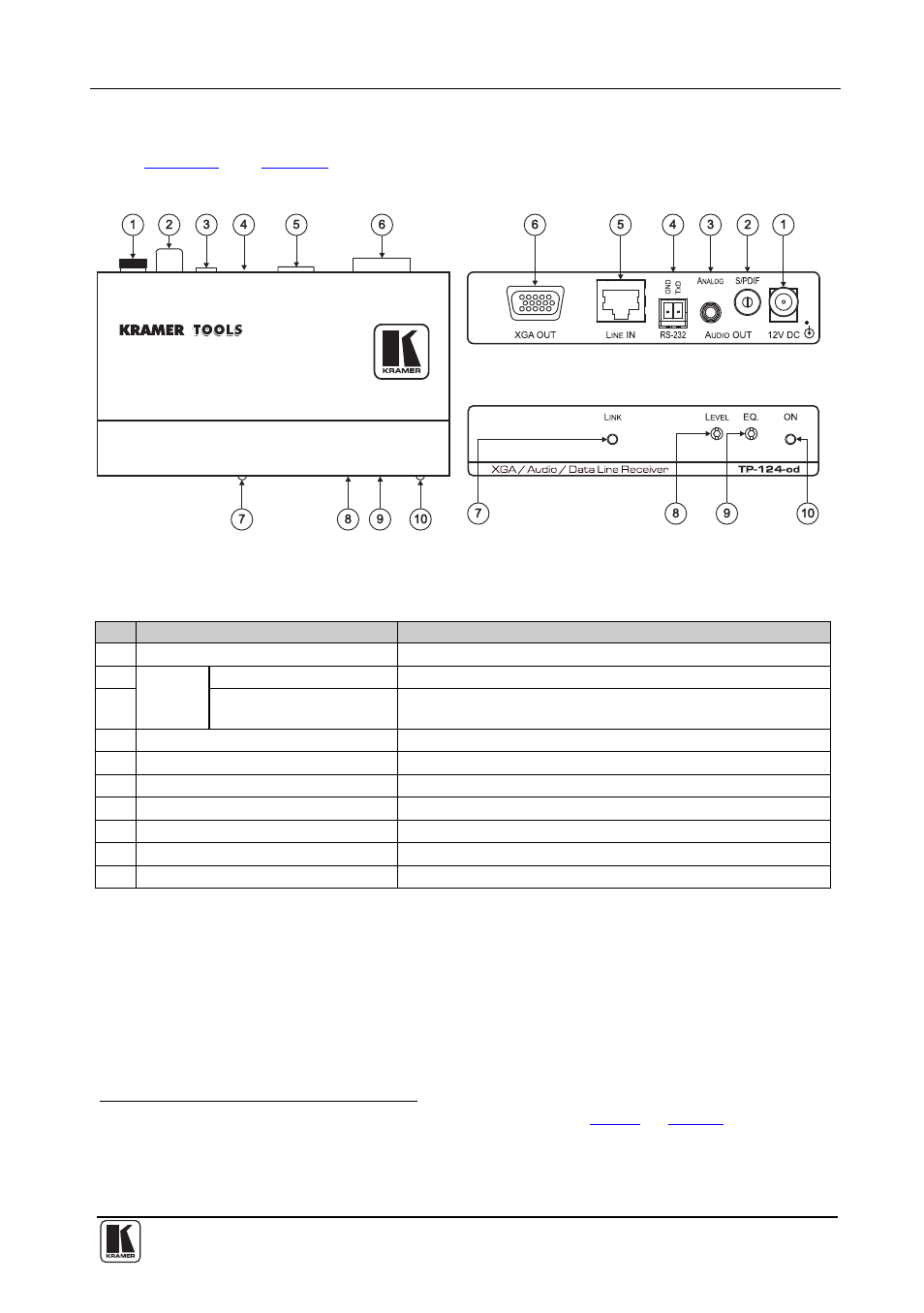

Figure 8: TP-124-od XGA / Audio / Data Line Receiver (Topside)
Table 8: TP-124-od XGA / Audio / Data Line Receiver (Topside) Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 AUDIO
OUT
S/PDIF RCA Connector Connects to the digital audio acceptor
3 ANALOG 3.5mm Mini
Jack
Connects to the analog audio acceptor
4 RS-232 Terminal Block Connector Connects to the controlled unit
5 LINE IN RJ-45 Connector Connects to 1 the LINE OUT RJ-45 connector on the TP-123-od
6 XGA OUT 15-pin HD (F) Connector Connect to the XGA acceptor
7 LINK LED Illuminates when receiving the correct input signal
8 LEVEL Trimmer Adjusts
2
the output signal level
9 EQ.
2
Trimmer Adjusts
3
the cable compensation equalization level
10 ON LED Illuminates when receiving power
1 Using a UTP cable with CAT 5 connectors at both ends (the PINOUT is defined in Table 15 and Figure 15 )
2 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
3 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
