The TP-123-od / TP-124-od Transmitter / Receiver Set
18
6.1 Your TP-123-od XGA / Audio / Data Line Transmitter
Figure 7 and Table 7 define the TP-123-od:

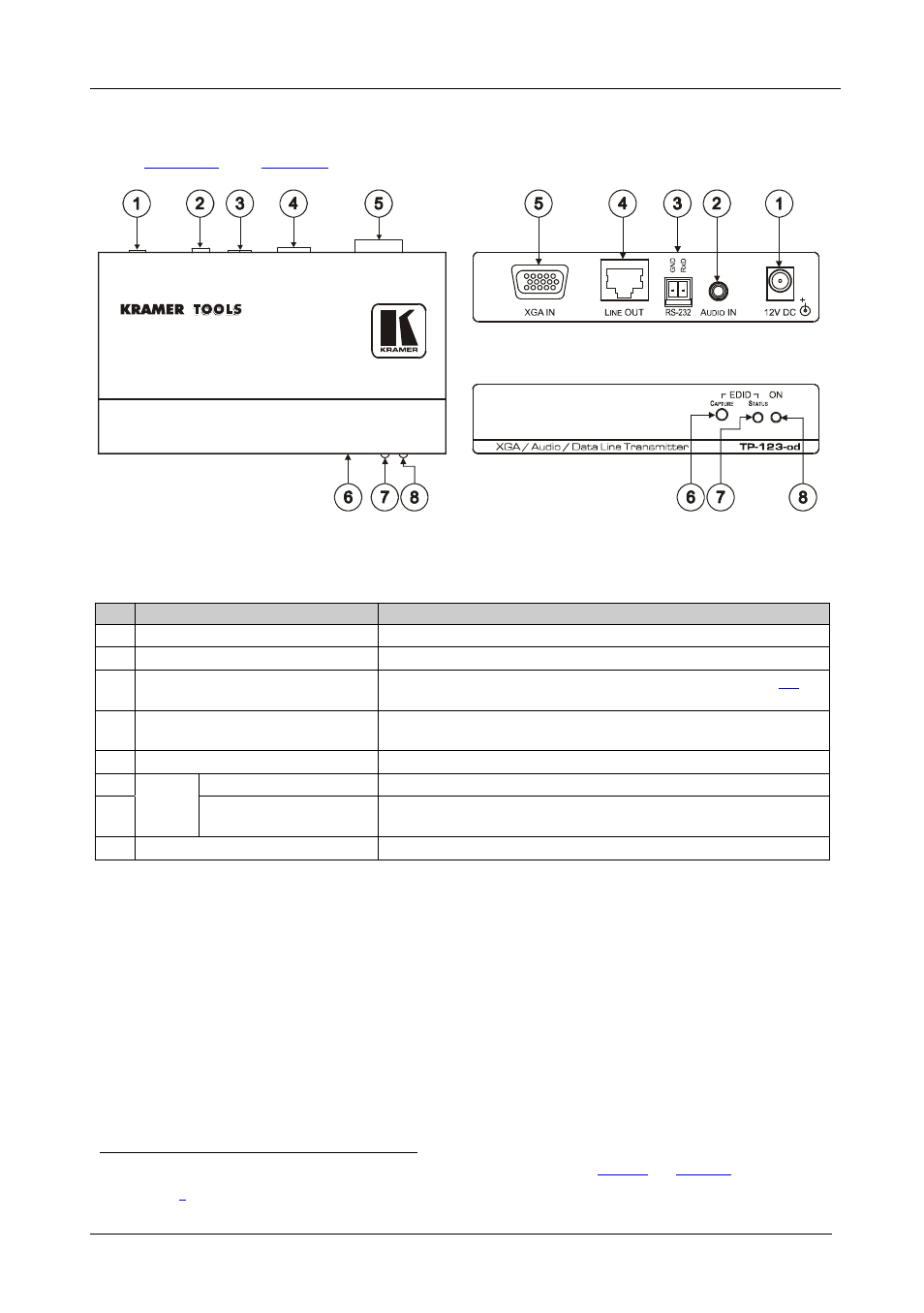

Figure 7: TP-123-od XGA / Audio / Data Line Transmitter
Table 7: TP-123-od XGA / Audio / Data Line Transmitter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 AUDIO IN 3.5mm Mini Jack Connects to the audio source
3 RS-232 Terminal Block
Connector
Connects to the PC or the Remote Controller (see section 6.4 )
4 LINE OUT RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on the TP-124-od
XGA / Audio Line Receiver
5 XGA IN 15-pin HD (F) Connector Connect to the XGA source
6 EDID
2
CAPTURE Button Press to acquire the EDID information from the display
STATUS LED Illuminates during normal operation; blinks when acquiring the
EDID
ON LED Illuminates when receiving power
1 Using a CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 15 and Figure 15 )
2 See section 9
