The TP-125-od / TP-126-od Transmitter / Receiver Set
25
7.1 Your TP-125-od XGA / Audio / Data Line Transmitter
Figure 11 and Table 11 define the TP-125-od:

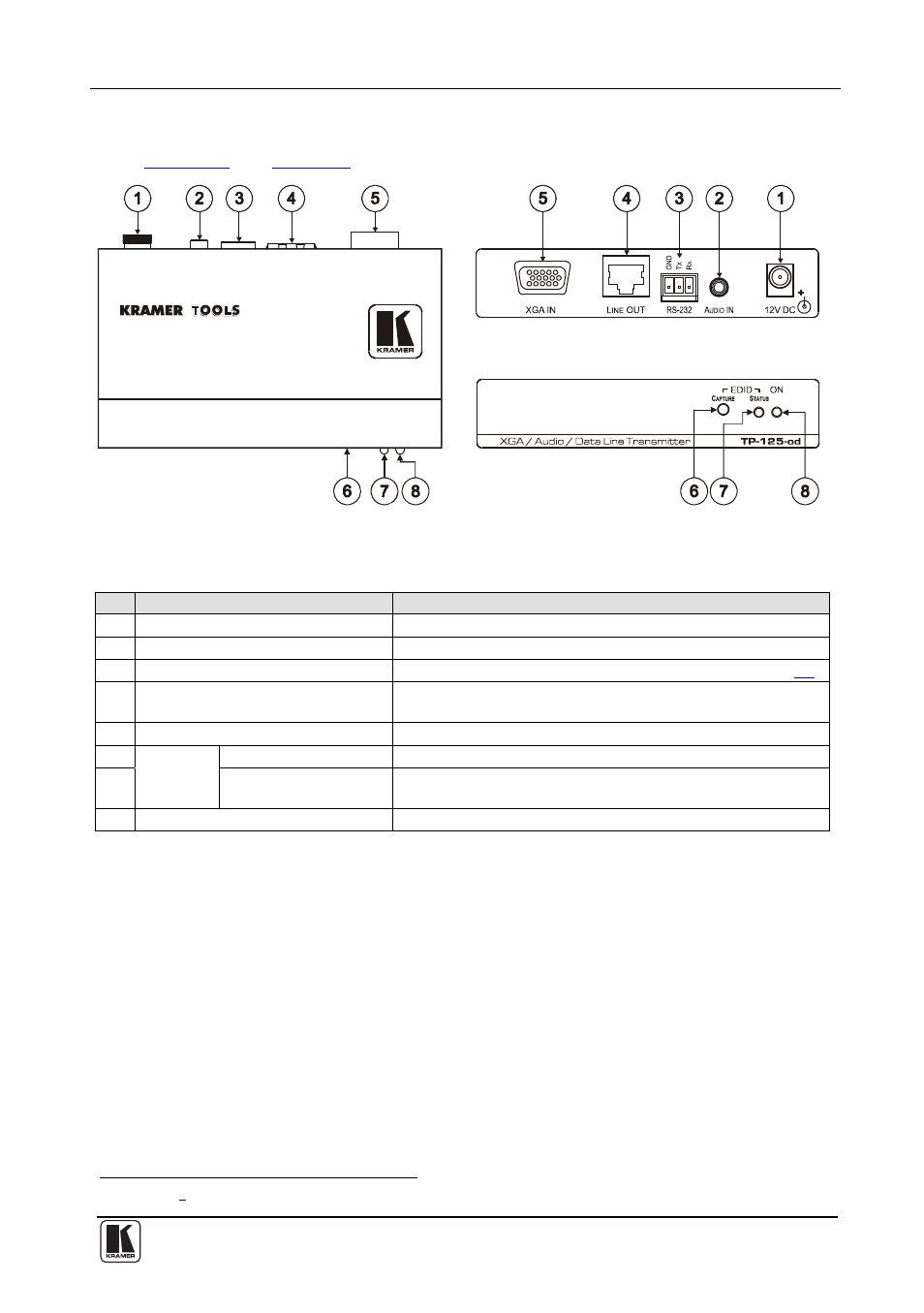

Figure 11: TP-125-od XGA / Audio / Data Line Transmitter
Table 11: TP-125-od XGA / Audio / Data Line Transmitter Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 AUDIO IN 3.5mm Mini Jack Connects to the audio source
3 RS-232 Terminal Block Connector Connects to the PC or the Remote Controller (see section 7.4 )
4 LINE OUT RJ-45 Connector Connects to the LINE IN RJ-45 connector on the TP-126-od
UXGA / Audio Line Receiver
5 UXGA IN 15-pin HD (F) Connector Connect to the UXGA source
6 EDID
1
CAPTURE Button Press to acquire the EDID information from the display
7 STATUS LED Illuminates during normal operation; blinks when acquiring the
EDID
8 ON LED Illuminates when receiving power
1 See section 9
