The TP-121-od / TP-122-od Transmitter / Receiver Set
13
5.2 Your TP-122-od XGA / Audio Line Receiver
Figure 5 and Table 5 define the TP-122-od XGA / Audio Line Receiver
topside:

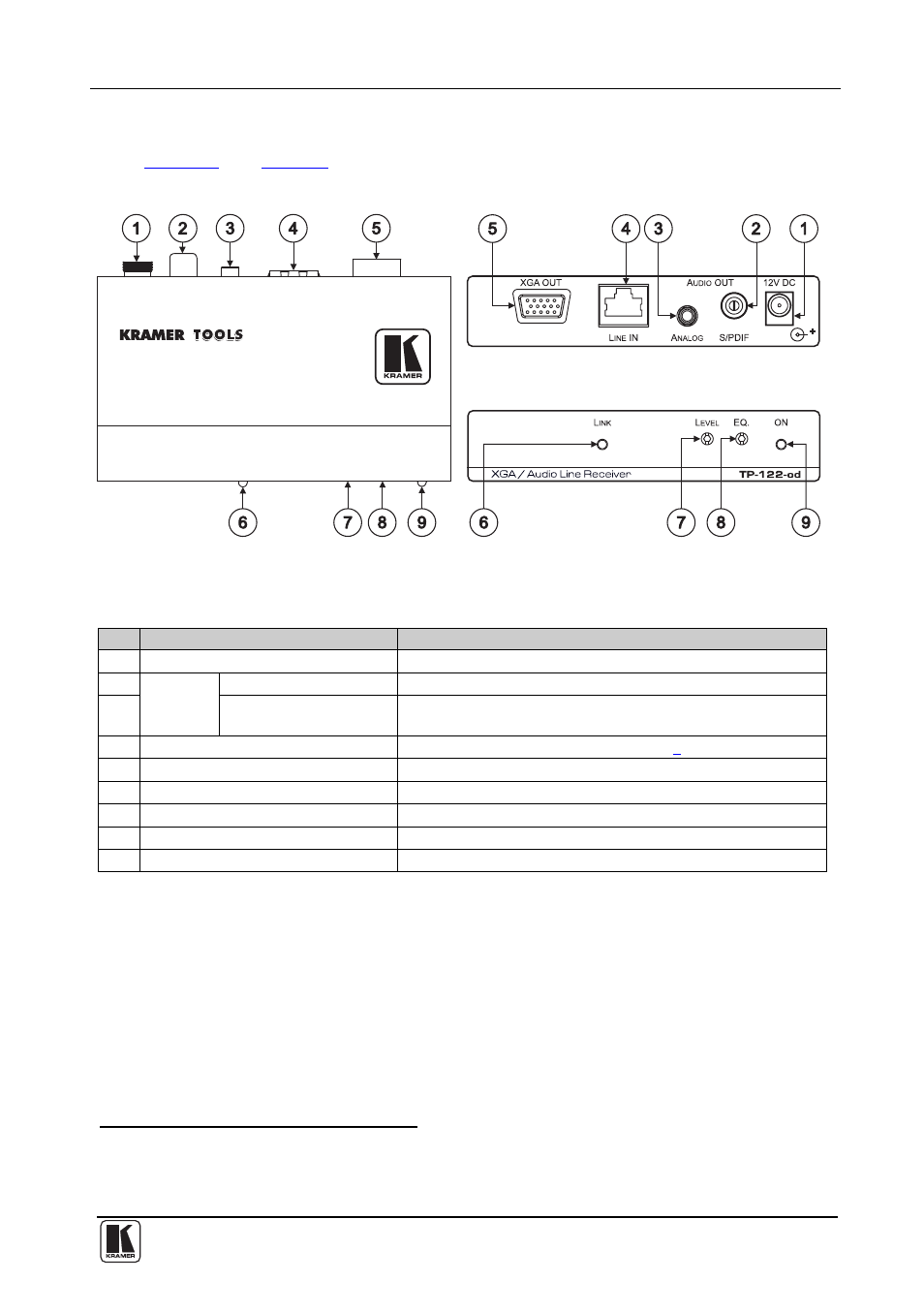

Figure 5: TP-122-od XGA / Audio Line Receiver (Topside)
Table 5: TP-122-od XGA / Audio Line Receiver (Topside) Features
# Feature Function
1 12V DC +12V DC connector for powering the unit
2
AUDIO
OUT
S/PDIF RCA Connector Connects to the digital audio acceptor
3 ANALOG 3.5mm Mini
Jack
Connects to the analog audio acceptor
4 LINE IN RJ-45 Connector Connects to the TP-121-od (see section 8 )
5 XGA OUT 15-pin HD (F) Connector Connects to the XGA acceptor
6 LINK LED Illuminates when receiving the correct input signal
7 LEVEL Trimmer Adjusts
2
the output signal level
8 EQ.
1
Trimmer Adjusts
2
the cable compensation equalization level
9 ON LED Illuminates when receiving power
1 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
2 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
