The TP-125-od / TP-126-od Transmitter / Receiver Set
29
7.4 Transmitting via RS-232 (for example, using a PC)
Prepare an RS-232 cable with a 9-pin D-sub connector at one end, and a 3-pin
terminal block connector at the other end, as defined in
Table 9 and Figure 10 :
Table 13: RS-232 PINOUT Connection
Connect this PIN on
the Terminal Block
Connector:
To this PIN on the
9-pin D-sub
Connector
TxD PIN 2
RxD PIN 3
GND PIN 5
RxD
TxD
GND
PIN 5 Connected to GND
PIN 3 Connected to RxD
PIN 2 Connected to TxD
1
2
3
4
5
6
7
8
9

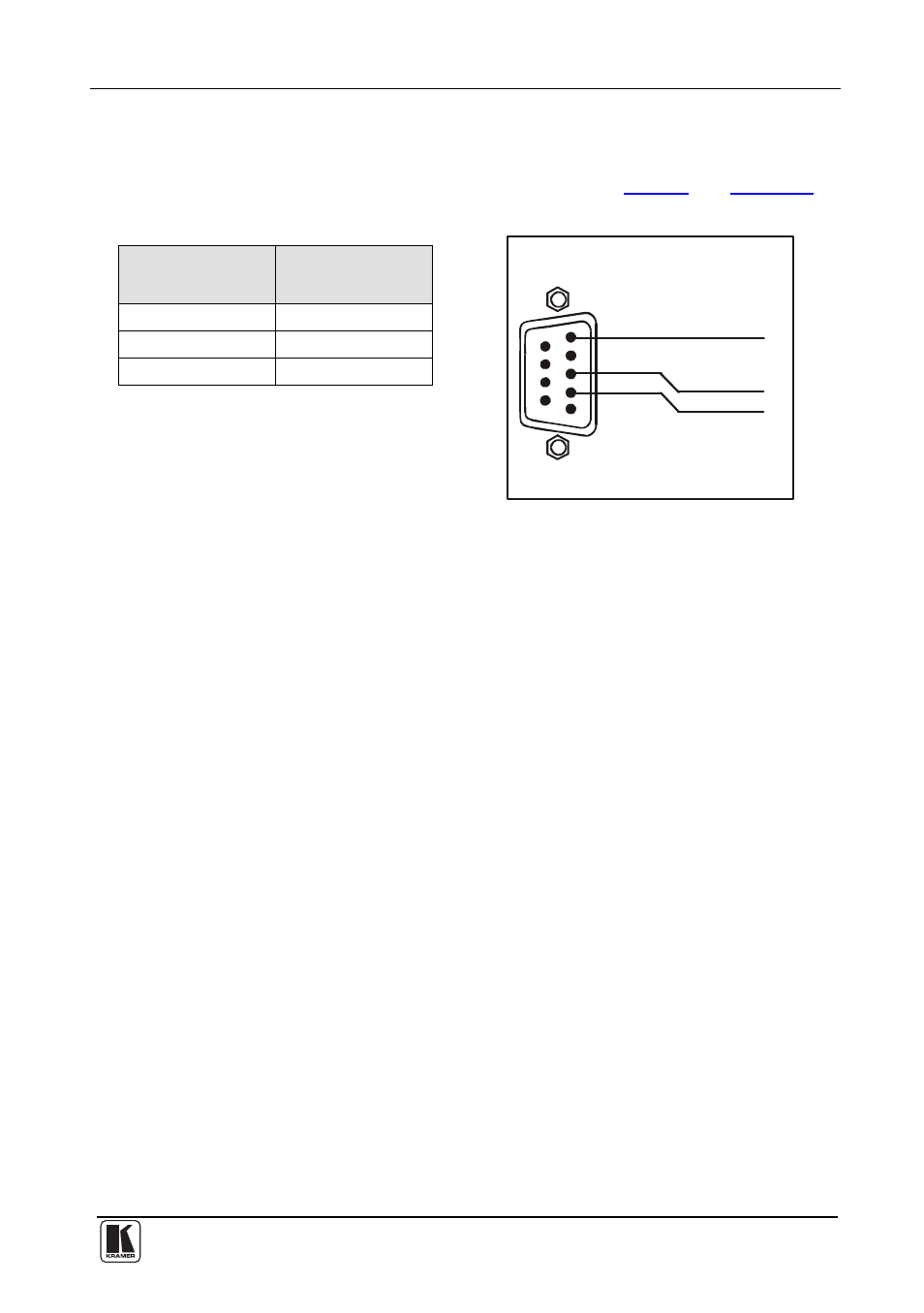

RS-232 Pinout
To PC ( ) 9-pin D-sub
Figure 14: RS-232 PINOUT Connection
