RB-6 - Operating the RB-6 Remotely Using the Web Pages 23
23
2. Under Scheduler Programming,
 Select channels 1 and 2 by clicking on their respective check-boxes
 Select Mo, Tu and We by clicking on their respective check-boxes
 Set the Time On and Time Off using the drop-down lists
3. Click Add to add this schedule to the table.
4. Click Submit to write the schedule to the device.
8.4 The Configurations Page
Using the Configurations page ( Figure 16 ), you can change some parameters
(the device name, IP address/DHCP, gateway and subnet mask), as well as view
others (model, serial number, firmware version and MAC address).

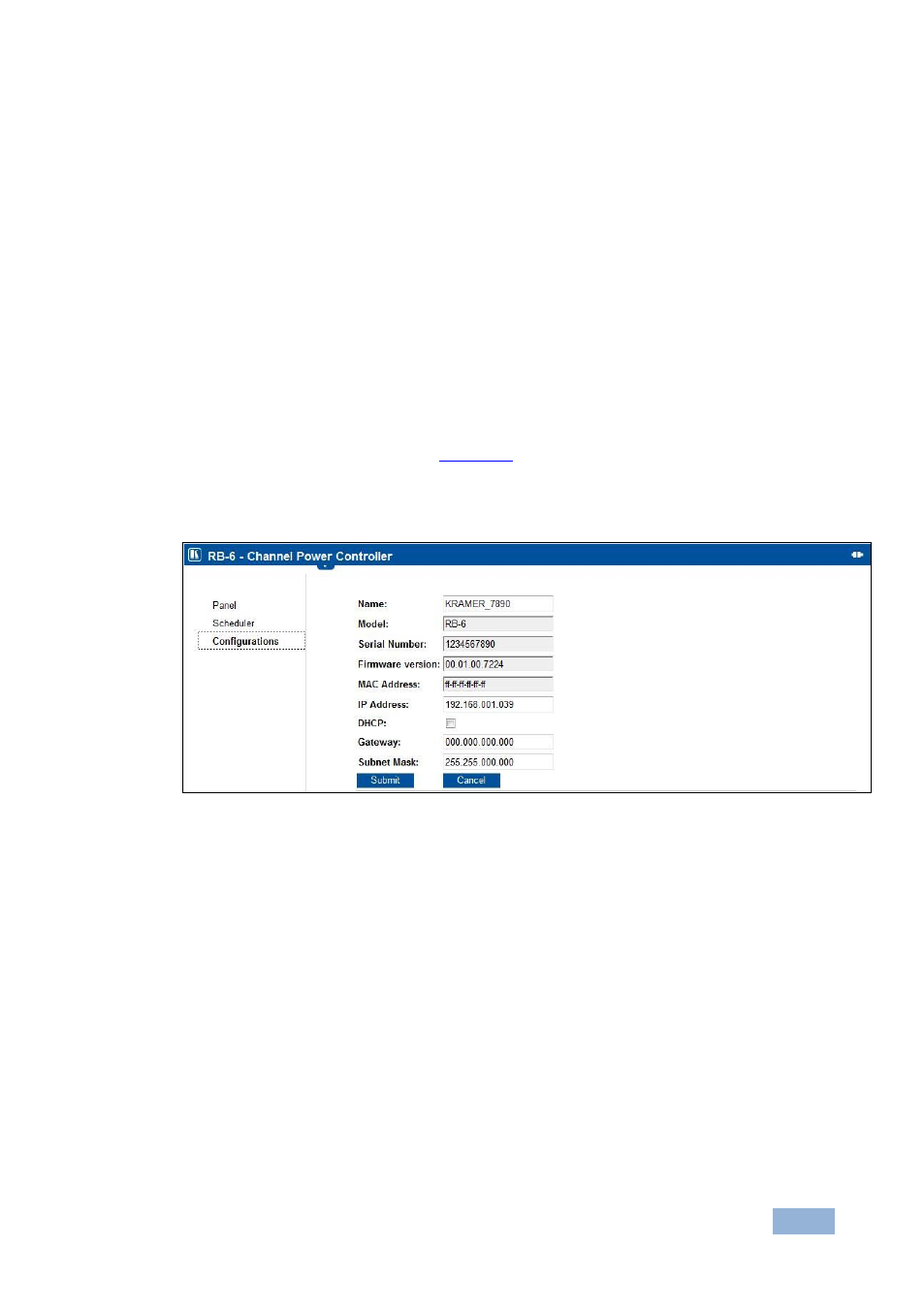

Figure 16: The Configurations Page
To change configuration settings:
1. Change the parameters as required.
2. Click Submit to write the changes to the device, or click Cancel to lose any
changes made and return to the Panel page.
If you click Submit, a warning appears asking if you are sure you want to
change the network settings.
3. Click Yes.
A window appears announcing that the configuration has been successfully
changed.
