8.2 The Panel Page
Using the Panel page ( Figure 14 ), you can turn on and off Outputs 1 to 4, and
adjust the voltage on Outputs 5 and 6.

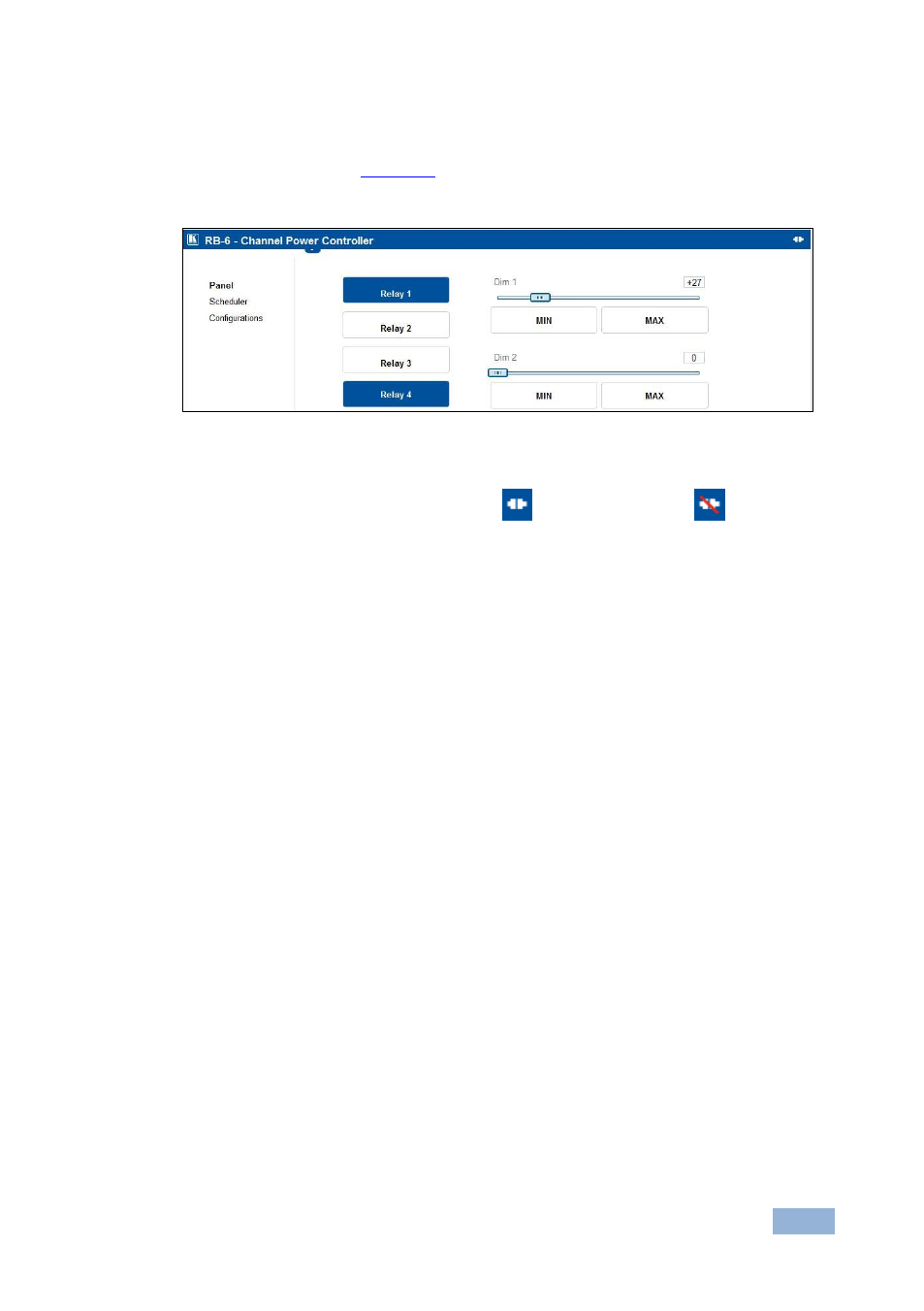

Figure 14: Panel Page
The connection icon in the top right corner of the screen indicates whether the
device is currently connected to your PC or is not connected .
To turn an output on:

Click the required white output Relay button.
The relay is turned on and the button changes to purple
To turn an output off:

Click the required purple output Relay button.
The relay is turned off and the button changes to white
To change the voltage on Output 5 or 6:
1. Click and hold on the required slider.
2. Drag the slider to the right to increase the voltage, or to the left to decrease
the voltage.
To set the voltage on Output 5 or 6 to minimum or maximum:

Set the output voltage using the sliders

Click on the required Min or Max button.
The output voltage is set to the minimum or maximum and the button
changes to purple
