Page 16
12
RB-6 - Connecting the RB-6
6.2.2
Connecting to the Ethernet Port via a Network Switch/Hub
To connect to the Ethernet port on the RB-6 via a network switch/hub:
Connect the PC to the Ethernet network switch/hub using a straight through
cable
6.2.3
Initial Ethernet Port Configuration
To initially configure the Ethernet port, download the K-Upload Ethernet
configuration software.
The K-Upload Ethernet configuration software is available from
Extract the file to a folder and create a shortcut on your desktop to the file.
To configure the Ethernet port initially:
1. Double-click the desktop icon.

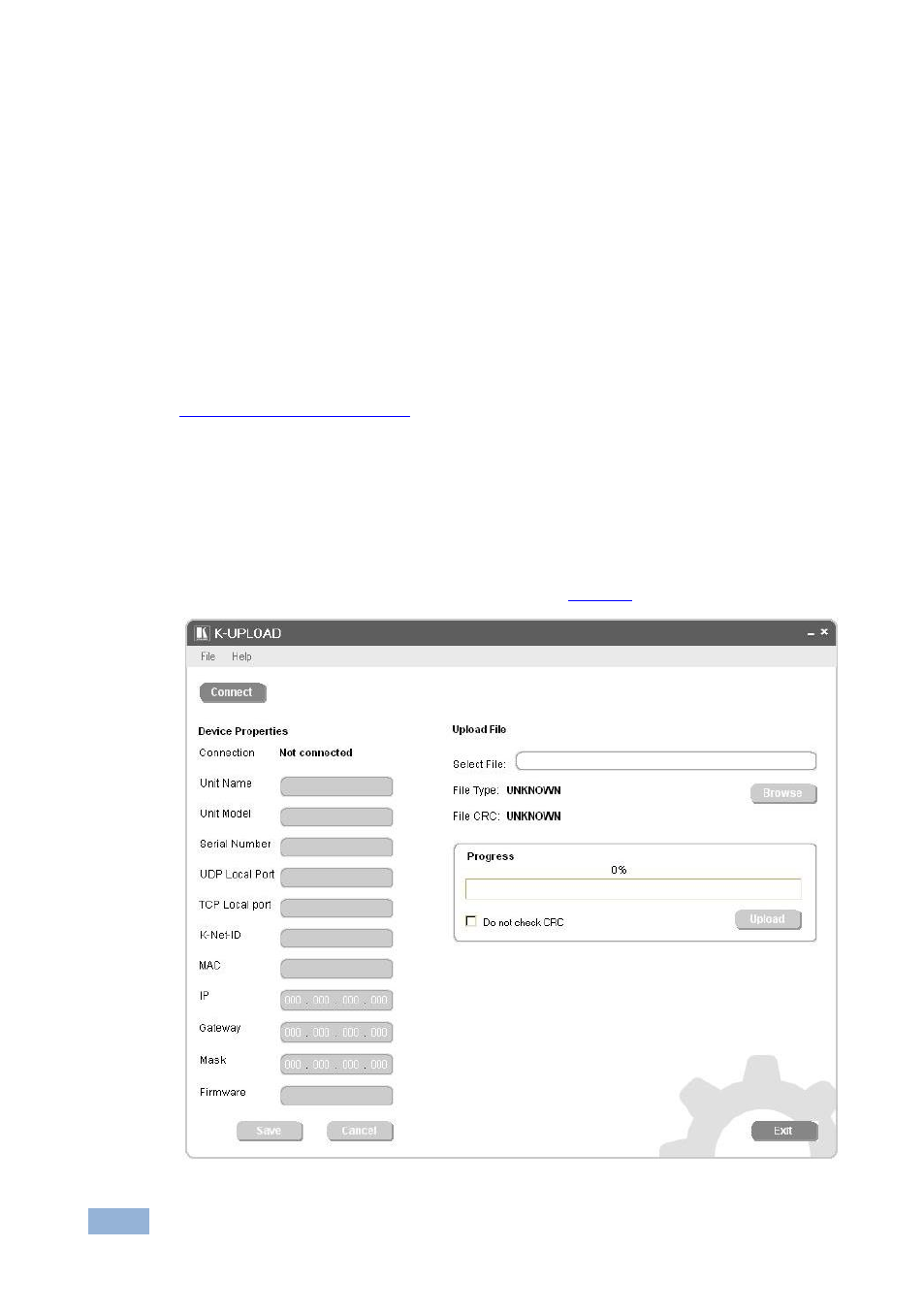

The K-Upload screen appears as shown in
Figure 6: K-Upload Main Screen
