RB-6 - Connecting the RB-6 9
9
6 Connecting the RB-6
Always switch off the power to all devices before connecting them to
your RB-6. After connecting your RB-6, connect its power and then
switch on the power to each device.
6.1 Connecting Devices to the RB-6

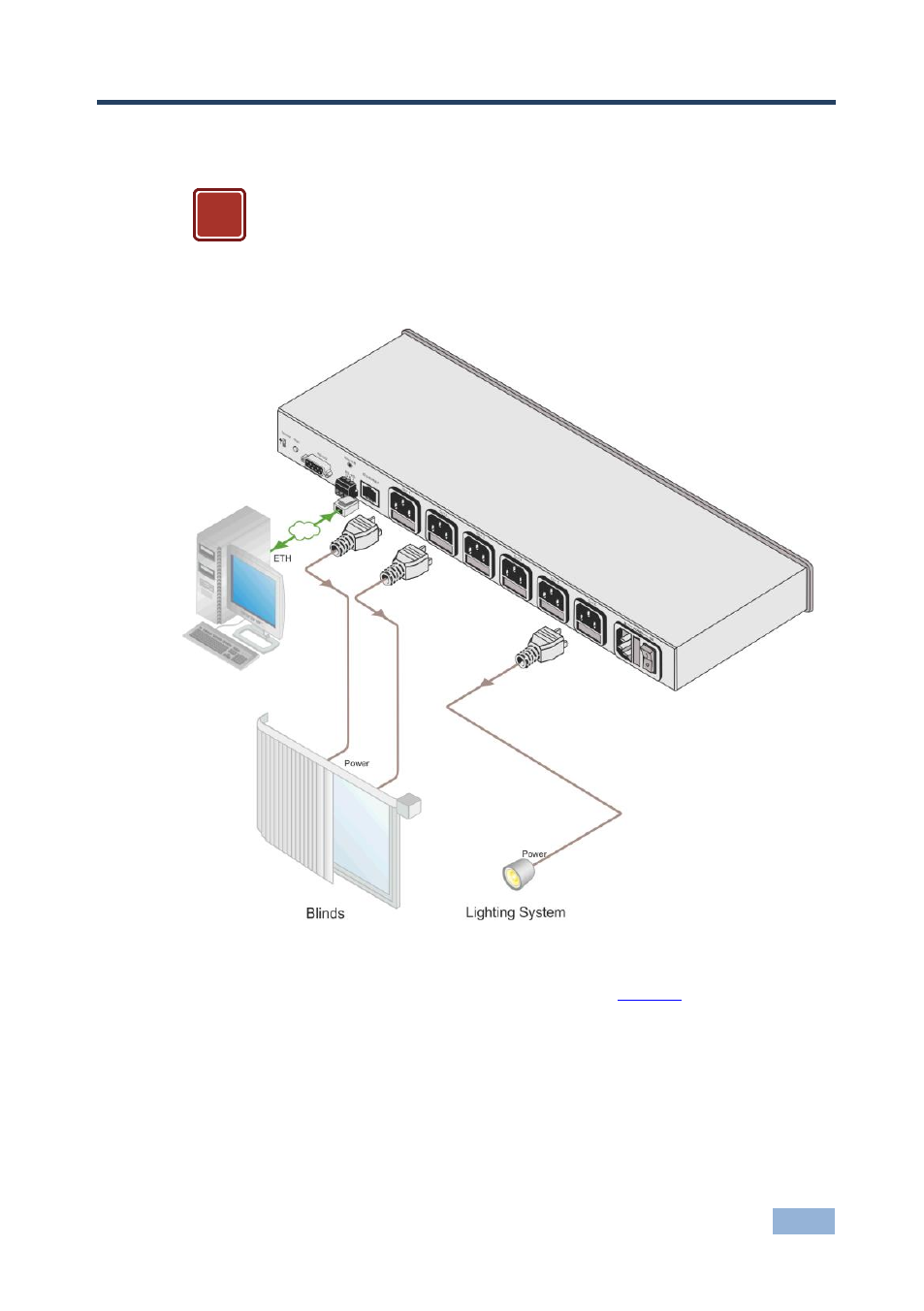

Figure 3: Connecting to the RB-6 Rear Panel
To connect the RB-6 as illustrated in the example in Figure 3 :
1. Connect a device, (for example, a blind system) to power outlet 1 for open
and to power outlet 2 for close control.
2. Connect a device, (for example, a lighting system) to power outlet 6 for
on/off control and a dimming function.
!
