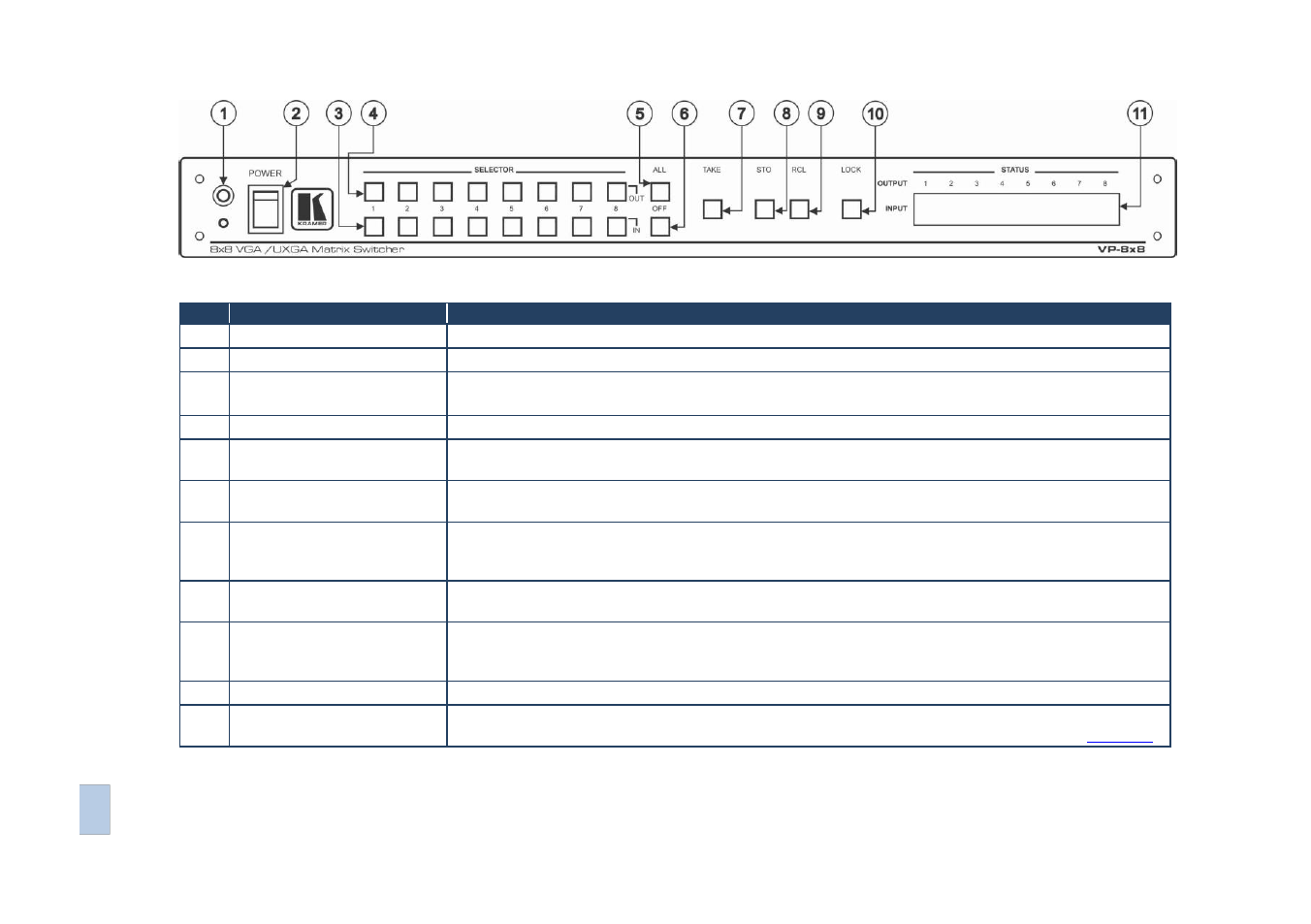

Figure 1: VP-8x8 User Manual Front Panel
# Feature Function
1 IR Receiver The yellow LED is illuminated when receiving signals from the infrared remote control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 IN SELECTOR Buttons Select the input to switch to the output.
When a signal is detected, the input button illuminates in green
4 OUT SELECTOR Buttons Select the output to which the input is switched
5 ALL Button Pressing ALL followed by an INPUT button, connects that input to all outputs
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
6 OFF Button Press an OUT SELECTOR button and then an OFF button to disconnect that output from the inputs
Press the ALL button and then the OFF button to disconnect all the outputs
7 TAKE Button Pressing TAKE toggles the mode between the Confirm mode and the At Once mode (user
confirmation per action is unnecessary)
When in the Confirm mode, the TAKE button illuminates
8 STO (Store) Button Pressing STO followed by an input/output button stores the current setting
For example, press STO and then the Output button # 3 to store in Setup # 3
9 RCL (Recall) Button Pressing the RCL button and the corresponding IN/OUT button recalls a setup from the non-volatile
memory. The stored status flashes. Pressing a different IN/OUT button lets you view another setup.
After making your choice, pressing the RCL button again implements the new status
10 LOCK Button Disengages the front panel switches
11 STATUS 7-segment Display Displays the selected input switched to the output (marked above each input)
Also displays the number of IN and OUT ports, the firmware version number, and the MACHINE #. Refer to Section ‎6.1
